?Are you trying to decide whether the 12V 40A Fast LiFePO4 Lithium Battery Charger 14.6V 40 Amp High Output for 12.8V LiFePO4 Smart Charger Anderson Connector, M8 Rings for Deep Cycle Batteries in RV, Boat, Marine, Home Off-Grid is the right charger for your batteries and lifestyle?
Product Overview

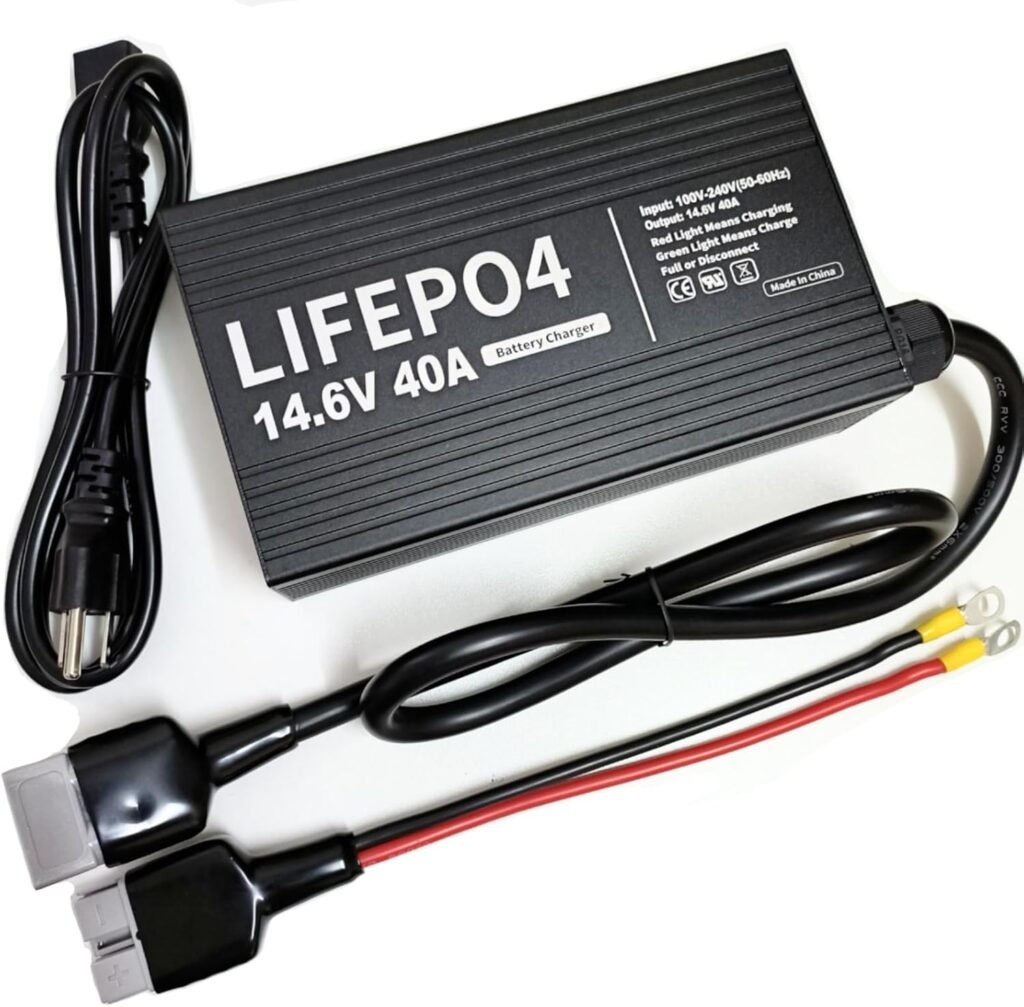

You’re looking at a purpose-built charger aimed at quickly and safely replenishing larger 12V/12.8V LiFePO4 battery banks. This 14.6V, 40A high-output charger is designed for systems between roughly 80Ah and 400Ah, offering a high charging rate and integrated protections. It’s intended for use in RVs, boats, marine systems, and off-grid home setups where faster charging and reliability matter.
What the Product Claims
You’ll find that the charger emphasizes fast charging, a two-stage charging algorithm (bulk and trickle), and compatibility with a wide range of LiFePO4 batteries. The product highlights include overcharge, overheat, and short-circuit protection, plus rugged construction and portable form factor. Those strengths make it appealing if you need a robust, relatively compact solution that handles large battery capacities.
Key Features
You should understand the main features at a glance so you can match them to your needs. The essentials are the 14.6V output specifically tuned for LiFePO4 cells, a maximum 40A current, and a two-stage charge profile that helps protect the chemistry and extend battery life.
- Powerful 14.6V output optimized for LiFePO4.
- Max 40A charging current for rapid replenishment.
- Two-stage charging: bulk then trickle/float to maintain charge.
- Built-in safety protections against overcharge, overheating, and short circuits.
- Anderson connector and M8 ring terminals for flexible connection options.
- Rugged metal casing for durability and some resistance to rough environments.
Why These Features Matter to You
You want reliability and speed without risking your battery investment. The high output shortens downtime, while the two-stage algorithm and safety features reduce the chance of damage due to improper charging. The included connectors make installation straightforward for multiple use scenarios.
Specifications Table
You can use the table below to quickly compare the most important technical points at a glance. This helps you confirm fit for your battery capacity and expected use.
| Specification | Detail |
|---|---|
| Nominal Output Voltage | 14.6V (designed for 12.8V LiFePO4 systems) |
| Maximum Output Current | 40A |
| Recommended Battery Capacity Range | 80Ah – 400Ah |
| Charging Stages | 2-stage (bulk then trickle/maintenance) |
| Typical Charge Time | 200Ah → ~6 hours; 400Ah → ~12 hours (approx.) |
| Connectors Included | Anderson connector, M8 ring terminals |
| Protections | Overcharge, overheat, short-circuit protection |
| Case | Rugged metal casing |
| Typical Applications | RV, boat/marine, home off-grid, deep-cycle battery systems |
| Compatibility | LiFePO4 batteries (12V/12.8V nominal) |
Performance
You’ll appreciate the performance most where turnaround time and battery capacity matter. The unit’s 40A output is significant for a single-channel 12V charger and will noticeably reduce charging time compared to smaller chargers.
Charging Speed and Practical Results
If you have a 200Ah battery bank, expect full charging in roughly 6 hours under ideal conditions, while a 400Ah bank would take around 12 hours. Those are practical estimates assuming the battery’s own acceptance rate and ambient conditions don’t limit current. If you need to recover from deep discharge quickly, that 40A capability will make a real difference.
Efficiency and Real-World Conditions
You should note that actual times vary based on battery state of charge, internal battery management system (BMS) behavior, cable losses, and temperature. The charger’s efficiency is usually high, but if you’re charging in hot or cold environments, acceptance rates will change. A BMS may also taper or cut charge if cells are imbalanced or if the pack hits internal limits.
Charging Algorithm and Battery Care
You want a charger that not only charges fast but also treats your battery gently to prolong life. This charger’s 2-stage profile aims to do that by combining a bulk charging phase (high current) and a trickle/float phase (maintenance).
Bulk and Trickle Explained
During the bulk stage, the charger delivers up to 40A to quickly raise voltage and charge the battery. Once the battery approaches the target voltage, it switches to a lower current maintenance mode to top off and maintain full charge while preventing overcharging. That second phase is crucial for LiFePO4 chemistry, which benefits from a precise upper voltage limit and a steady maintenance state rather than constant high current.
Interaction with Battery Management Systems (BMS)
You should ensure your LiFePO4 battery has a reliable BMS. The charger does a good job of providing safe voltage and current, but the BMS is the last line of defense against cell imbalance or thermal issues. When the BMS is properly configured, the charger and BMS work together—charger provides power to the pack, BMS controls cell-level protection.
Build Quality and Design
You’ll notice the charger is built for rugged use, with a metal case and solid components to withstand regular deployment. It’s not a small travel-style brick; it’s a functional, durable device intended for harsher environments like marine or off-grid installations.
Connectors and Installation Hardware
The charger includes an Anderson connector and M8 ring terminals. This gives you flexibility: use the Anderson for quick-disconnect setups on vehicles or systems that already use Anderson plugs, and use the M8 rings for permanent installs on battery bus bars or terminals. That adaptability saves you time during installation and makes it easier to swap systems or chargers if needed.
Portability and Mounting
You’ll find the size and weight manageable for portable use, but plan mounting for more permanent setups. The metal casing provides mounting points in many cases; securing the charger reduces vibration and helps with heat dissipation. If you’re installing in an RV or boat, choose a location with airflow and away from combustible materials.
Thermal Management and Safety Protections
You care about safe operation, and the charger includes protections to help you avoid dangerous situations. Overheat protection, overcharge prevention, and short-circuit safeguards are all built in.
Overheat and Ventilation
The charger’s metal case acts as a heat sink, but it still needs airflow. You should avoid enclosing the unit in tight compartments without ventilation. If the ambient temperature gets too high, the charger may reduce output to protect internal components and battery health.
Short-Circuit and Overcharge Protection
If a miswiring or short occurs, the charger should protect itself by cutting current or shutting down. Overcharge protection will limit voltage and current when the battery reaches the target, preventing unnecessary stress on the cells. These automatic measures reduce the chance of damage, but you should still follow safe wiring practices and use appropriate fuses or breakers.

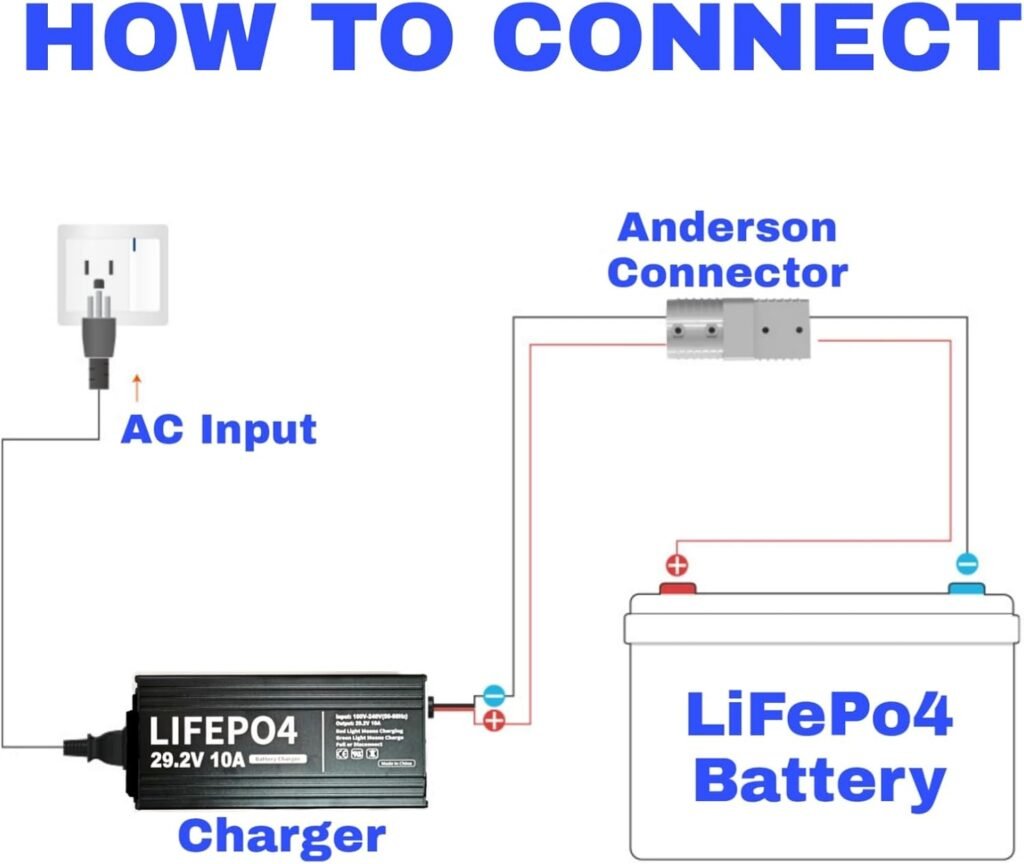

Installation and Setup
You can install this charger yourself if you’re comfortable with basic DC wiring practices, but follow safety guidelines and check your battery manual for any manufacturer recommendations.
Step-by-Step Install Guidance
- Choose a well-ventilated, dry mounting location away from direct heat sources.
- Disconnect the battery negative before making permanent ring-terminal connections.
- Attach the M8 ring terminals to the battery posts or bus bar with properly sized bolts and secure washers.
- If using the Anderson connector, ensure your system has matching connectors and that polarity is correct.
- Reconnect the battery and power on the charger, watching for status indicators and verifying the charger behaves as expected.
Required Tools and Materials
You’ll need basic hand tools, appropriately rated cable and lugs, heat shrink or quality insulation, and a DC-rated fuse or breaker sized slightly above 40A but within safe limits for your wiring. Use recommended cable gauges to minimize voltage drop—typically 2 AWG to 6 AWG depending on cable length and actual current, but consult a wiring chart for your run length.
Wiring and Connector Details
Correct wiring is essential for safety and performance, so you should match cable size to the current and keep runs as short as practical.
Anderson Connector Tips
The Anderson connector is a common choice for higher-current DC systems. You’ll want to verify that polarity is correct before connecting, and ensure the mating plug and cable are rated for 40A continuous. Anderson connectors make disconnecting and moving the charger quick and safe, but ensure a snug, corrosion-free connection.
M8 Ring Terminal Considerations
Use M8 ring terminals on battery posts when you want a semi-permanent installation. Torque the bolts to the battery manufacturer’s specifications and use anti-corrosion measures where appropriate. Secure cable routing to prevent chafing and vibration-related loosening.
Compatibility and Use Cases
This charger is focused on LiFePO4 chemistry, and you should use it primarily with batteries that list LiFePO4-compatible charging profiles. It’s broadly useful across many applications where 12.8V LiFePO4 batteries are used.
Recommended Battery Capacities
The stated recommended range is 80Ah to 400Ah. If your battery bank is smaller than 80Ah and you run the charger at full 40A without a charge controller or proper settings, you risk overcurrent or rapid heating. For banks below the lower range, consider a lower-amp charger or use charge current limiting.
Ideal Applications
You’ll get the most benefit in higher-capacity setups such as:
- Marine battery banks for propulsion or house loads.
- RV house banks that need daily replenishment while on shore power or generator.
- Off-grid home systems where solar or generator charging is supplemented by AC-based charging.
- Larger deep-cycle LiFePO4 banks used for backup power or frequent cycling.
Pros and Cons
You should balance the strengths and limitations to decide if this charger fits your needs.
Pros
- Significant 40A output for faster recharge of large banks.
- LiFePO4-optimized 14.6V setpoint helps preserve battery life.
- Two-stage charging avoids overcharging while keeping batteries topped off.
- Multiple connection options (Anderson, M8) increase installation flexibility.
- Rugged metal case and built-in protections improve reliability and safety.
Cons
- Single chemistry focus: not ideal if you need a multi-chemistry charger without manual adjustments.
- High current requires appropriately sized wiring and protections, which increases install cost.
- For smaller battery banks, the charger may be overkill unless you can limit current.
- Exact status indicators and user interface may be limited compared to more feature-rich smart chargers (you’ll want to confirm LED behavior or remote monitoring features for your use case).
Alternatives to Consider
You should consider a few different approaches depending on what matters most to you: multi-chemistry support, lower amperage for small banks, or chargers with integrated solar/AC hybrid functions.
- If you need support for multiple battery chemistries, a programmable or switchable charger might be more versatile.
- If your battery bank is small or you prefer gentler charging, consider a 10A–20A LiFePO4-specific charger.
- For integrated off-grid systems, chargers combined with MPPT solar chargers or inverter/chargers might reduce system complexity and improve automation.
Maintenance and Longevity
You’ll want to maintain both the charger and the battery to maximize lifespan and avoid downtime.
Charger Care
Keep ventilation clear, wipe dust from vents periodically, and inspect connectors for corrosion or wear. Avoid exposing the unit to prolonged moisture or salt spray; marine applications should use additional protection or placement where direct exposure is minimized.
Battery Health Practices
Use the charger according to the battery manufacturer’s recommended charge profile. Avoid excessive depth of discharge where possible, and let the BMS perform balancing and protection tasks. Regularly check terminal tightness, cable integrity, and BMS health to ensure consistent performance.
Troubleshooting
You should be able to diagnose common issues without too much technical expertise.
Charger Doesn’t Start
Check AC supply first, ensure proper input voltage, check fuses or breakers, and confirm battery connections. If the battery voltage is extremely low, some chargers will not start until the battery recovers to a safe threshold—try jump-starting with a small current source if safe to do so.
Charger Runs but Shows Low Current
Verify cable gauge and connections for voltage drop, check that the battery’s BMS hasn’t limited charge, and ensure ambient temperature hasn’t triggered thermal reduction. If the battery is near full charge, the charger will naturally reduce current; confirm battery state of charge first.
Charger Shuts Down Intermittently
This can indicate overheating, short-circuit protection kicking in, or an unstable AC supply. Ensure adequate ventilation and check for wiring faults that cause intermittent shorts. Replace or service the unit if internal cooling seems compromised.
Safety Considerations
You should treat all DC charging work with respect for the energy involved. Follow these safety tips to reduce risk.
- Always use a properly rated fuse or circuit breaker between the charger and battery, ideally close to the battery positive terminal.
- Make sure the battery is in good condition and has a functional BMS.
- Keep the charger away from combustible materials and ensure adequate ventilation.
- Wear eye protection and avoid loose clothing when making or breaking battery connections.
- Avoid charging damaged or swollen cells; consult the battery manufacturer for recovery steps.
Final Verdict
If you need a powerful, purpose-built LiFePO4 charger for sizable 12.8V battery banks in RV, marine, or off-grid applications, this 14.6V 40A charger is a strong, practical choice. You’ll appreciate the faster recharge times, LiFePO4-optimized voltage, and the flexibility of Anderson and M8 connector options. It’s best suited to users with larger batteries (80–400Ah), appropriate wiring, and a BMS-equipped pack. If you need multi-chemistry support or lighter-duty charging, you should compare alternatives, but for high-current LiFePO4 charging, this unit delivers a compelling balance of speed, safety, and ruggedness.
If you want, tell me about your battery bank size, the environment you’ll be installing in, and whether you plan to integrate this with an inverter or solar system, and I can give tailored wiring, fuse sizing, and installation tips.
