?Want a reliable, lightweight 12V LiFePO4 battery that can power your camera gear, robotics projects, or small marine and RV systems?

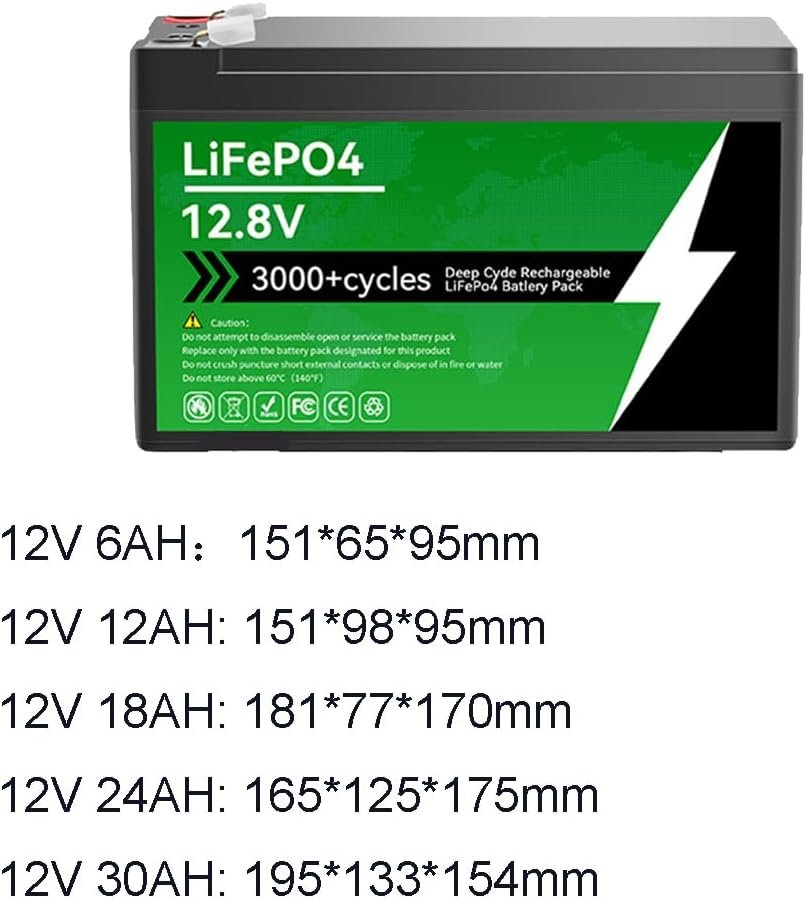

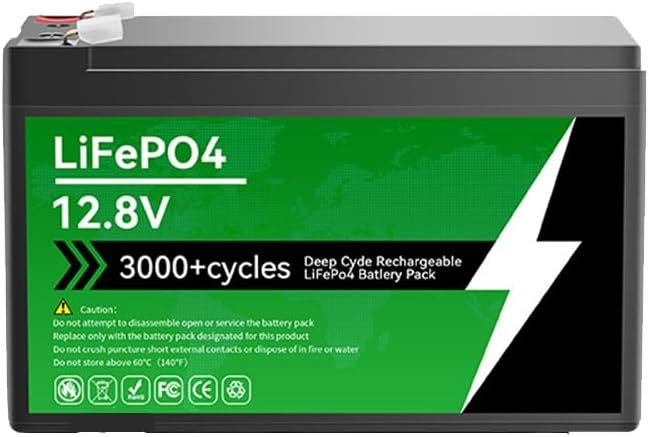

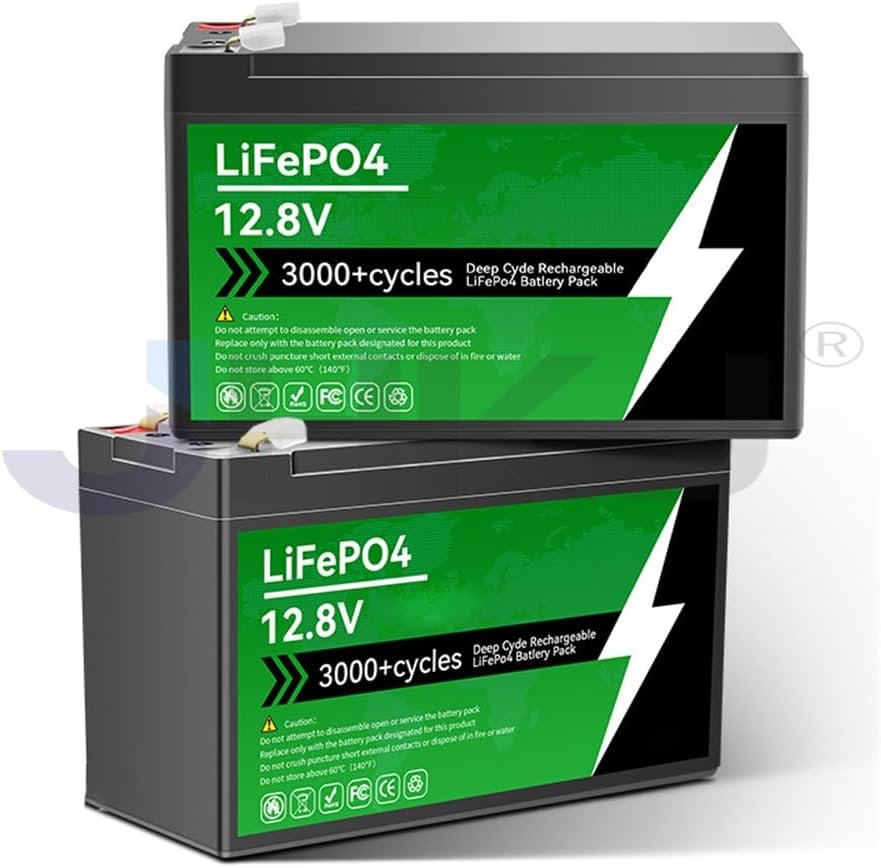

Product Overview: 12V 6Ah–30Ah LiFePO4 Battery Pack 12.8V 400Wh
You’re looking at the “12V 6Ah 12Ah 18Ah 24Ah 30Ah LiFePO4 Battery Pack 12.8V 400Wh Rechargeable Lithium Iron Phosphate Batteries for Camera Spare Robotics,12v,12Ah” — a range of 12.8V lithium iron phosphate (LiFePO4) packs offered in several capacities. These packs are designed to give you higher usable capacity, significantly lower weight than comparable lead-acid batteries, and built-in battery management protection for safer everyday use.
What this product promises
You can expect lighter weight, better cycle life, and a flatter discharge curve than lead-acid alternatives, meaning more usable energy and longer runtimes. The manufacturer highlights built-in BMS protections (overcharge, overdischarge, overcurrent, short circuit) and broad applicability across trolling motors, solar, RVs, marine, cameras, robotics, and small industrial equipment.
Key Specifications and Capacity Options
This model line comes in multiple nominal capacities so you can choose the size that fits your needs without overspending on capacity you won’t use. All variants are nominally 12.8V (4 cells in series) and provide the high cycle life and safety characteristics typical of LiFePO4 chemistry.
Quick spec summary
Below are the key specs you’ll use to compare versions and choose a pack that matches your load and run-time expectations. Expect slight variations by factory batch and check seller listings for exact dimensions and weight.
| Capacity (Ah) | Nominal Voltage (V) | Nominal Energy (Wh) | Usable Energy @ ~90% (Wh) | Typical Use Cases |
|---|---|---|---|---|
| 6 Ah | 12.8 V | 76.8 Wh | ~69 Wh | Small cameras, single sensors, small robotics projects |
| 12 Ah | 12.8 V | 153.6 Wh | ~138 Wh | Cameras + accessories, small lighting setups, portable tools |
| 18 Ah | 12.8 V | 230.4 Wh | ~207 Wh | Medium trolling motors, solar backups for small loads |
| 24 Ah | 12.8 V | 307.2 Wh | ~276 Wh | RV appliances, medium robotics, larger camera rigs |
| 30 Ah | 12.8 V | 384 Wh (≈400 Wh listed) | ~346 Wh | Longer-run trolling motors, off-grid devices, backup power |
You should use the “usable” column for realistic runtime planning since this product line advertises up to 90% usable capacity, much higher than typical lead-acid batteries.
Weight and Size Considerations
You’ll notice a major weight advantage with LiFePO4 chemistry: these batteries are roughly one-third the weight of equivalent lead-acid batteries at the same capacity. That makes them far more portable and easier to install where weight and space matter. For exact weight and size, check the vendor listing because packaging and form factor can vary by capacity and manufacturer.
Form factor and mounting
These packs typically come in a compact rectangular case similar to sealed lead-acid sizes but lighter. You should verify mounting hole locations and terminal type (screw, bolt, or plug) before buying to ensure a smooth installation.
Built-In BMS: Protection and Behavior
You will get a built-in Battery Management System (BMS) that protects against overcharge, overdischarge, overcurrent, and short circuits. That BMS not only guards the pack but also manages cell balancing so you can safely use more of the battery’s rated capacity.
What the BMS means for real-world use
Because of the BMS, you can charge and discharge the pack with less worry about damage from occasional misuse, and the pack will better tolerate irregular charging patterns. The presence of cell balancing helps extend usable life and ensures cells remain at consistent states of charge over many cycles.
Safety Profile
You’ll appreciate that LiFePO4 chemistry is one of the safest lithium chemistries for consumer and industrial use, with excellent thermal and chemical stability. According to the product details, manufacturing adheres to national safety regulations and each pack is capacity-tested and inspected before shipping.
Thermal and chemical safety
LiFePO4 resists thermal runaway and is far less likely to overheat or catch fire compared with some other lithium chemistries. You should still follow safe handling, charging, and storage guidance and avoid using damaged batteries.
Performance Compared to Lead-Acid
You can use up to about 90% of this battery’s rated capacity, while typical lead-acid batteries are often limited to around 50% of rated capacity if you want reasonable cycle life. That efficiency translates into fewer batteries, less weight, and longer usable run times for the same usable energy.
Efficiency and usable energy
Because you’ll use most of the LiFePO4 capacity, you’ll need fewer amp-hours to deliver the energy you want. That not only reduces overall weight but also lowers the time and cost you spend charging and maintaining multiple batteries.
Charging Recommendations
You should charge these packs using a charger suitable for a 4-series LiFePO4 battery. Typical charge parameters for a 12.8V LiFePO4 pack are absorption around 14.2–14.6 V and float or rest near 13.6 V, but always confirm the recommended settings with the seller or manufacturer.
Charger current and charging time
Charging time depends on charger current: a 30 Ah pack charged at 1C (30 A) will theoretically reach near-full in about an hour, but practical charging rates are often lower. A common and safe charging current is 0.3C (9 A for a 30 Ah pack), which would take roughly 3–4 hours to reach full charge including taper and inefficiencies.
Run Time Examples and Calculations
You can estimate run times using the nominal energy (Wh) divided by load wattage, then adjusting for usable capacity. Below are sample calculations to help you plan.
Real-world runtime estimates
Use the formula: usable Wh / device wattage = approximate hours of runtime. Remember to account for inverter losses (if you use AC loads) and to leave some reserve.
Example estimations:
- With a 30 Ah (384 Wh nominal, ~346 Wh usable) pack powering a 50 W device: ~346 / 50 ≈ 6.9 hours.
- With the same pack powering a 200 W device: ~346 / 200 ≈ 1.7 hours.
- For a 12 Ah pack (~138 Wh usable) powering a 100 W camera rig: ~138 / 100 ≈ 1.38 hours.
These numbers give you a realistic baseline, but actual runtime will vary with temperature, load profile, and wiring losses.
Suitable Applications
You can use these packs in many scenarios: cameras and photography, robotics, trolling motors on small boats, solar storage for small off-grid setups, RV accessories, electric scooters, lawn and garden tools, and medical equipment backups. Choose capacity based on expected load and required runtime.
Matching capacity to application
If you mainly need power for cameras and short-run robotics, the 6–12 Ah models are usually sufficient. If you’re planning to power small trolling motors, run lights on an RV, or use it as a small off-grid battery, consider 24–30 Ah for reasonable run times.
Installing and Connecting the Pack
You’ll want a solid, ventilated mounting location free from direct heat and moisture. Use appropriately sized cables, secure connections, and fuse protection near the positive terminal for additional safety.
Series and parallel connections caution
If you plan to connect packs in parallel to increase capacity, only parallel identical new packs with the same voltage and similar state of charge. For series to increase voltage, ensure packs are matched and the BMS supports series operation; incorrect combinations can stress the BMS and shorten pack life.
Maintenance and Storage Tips
If you’re not using the battery for extended periods, store it at roughly 40–60% state of charge in a cool, dry place to preserve cycle life. Avoid storing fully charged at high temperatures or in completely discharged states for long durations.
Seasonal use and partial charges
You’re free to top the battery up anytime; LiFePO4 chemistry has no memory effect. For seasonal devices like trolling motors or RV systems, charge the pack to about 50% before storage and check it every few months, recharging if it drops too low.
Environmental and Temperature Performance
LiFePO4 performs well at moderate temperatures but will see reduced effective capacity in cold conditions. Charging in very cold environments (below 0°C / 32°F) can risk lithium plating unless the pack has cold-charge protection. For best long-term life, operate and charge between manufacturer-recommended temperature ranges.
Cold weather precautions
If you’ll be using the battery in freezing conditions, either keep the pack insulated/warmed or confirm the BMS includes low-temperature charge protection. Running a heavy load at very low temperature can reduce peak power and apparent capacity.
Durability and Cycle Life Expectations
You can expect LiFePO4 chemistry to deliver far more cycles than typical lead-acid types. Good packs often reach 2,000–3,000 cycles at moderate depth-of-discharge, though the exact number depends on charge/discharge rates, depth of discharge, and temperature.
What affects longevity
Faster charging/discharging, frequent deep discharges, extreme temps, and untreated overcurrent events shorten battery life. Using the BMS features and avoiding abusive conditions will help you get the most cycles.
Pros and Cons
You want an honest list so you can weigh purchase decisions. Here’s a concise summary.
Pros
- Much lighter than equivalent lead-acid batteries; more portable.
- High usable capacity (up to ~90%) so you get more real energy per Ah.
- Built-in BMS with common safety protections.
- Long cycle life relative to lead-acid.
- No memory effect; flexible charging schedules.
Cons
- Higher upfront cost than lead-acid for the same nominal Ah.
- Performance drops in extreme cold; check specs before cold use.
- If you need very high continuous current for long periods, verify the specific pack’s C-rating and BMS limits.
- Exact dimensions/terminals can vary; verify before mounting.
Comparing to Alternatives
When you compare this LiFePO4 series to sealed lead-acid (SLA) and other lithium chemistries, you’ll see clear trade-offs. Compared to SLA, you get more usable energy, less weight, and longer life. Compared to some higher energy-density lithium chemistries, LiFePO4 is safer and more thermally stable but slightly heavier per Wh.
When to pick this LiFePO4 line
Choose these packs if you value safety, frequent cycling, portability, and higher usable capacity. If you need the absolute lightest possible option for the same Wh, other lithium chemistries might edge LiFePO4, but often at a cost to safety or cycle life.
Troubleshooting and Common Issues
If you find unexpected behavior, check charging voltage limits, cable connections, and the BMS status indicators if available. A pack that won’t charge may be in protective mode due to undervoltage or a triggered safety event.
Steps to diagnose simple problems
- Confirm charger voltage and polarity before connecting.
- Inspect terminals and wiring for corrosion or loose connections.
- Check for BMS LED or status codes and consult the vendor manual.
- If you suspect a faulty pack, contact the seller for testing or replacement per warranty.
Warranty, Support, and Buying Tips
Warranty details aren’t listed in the product summary, so you should verify the seller’s warranty length and terms before purchase. Look for sellers that provide clear return policies and technical support contact options.
Questions to ask the seller
Ask about exact dimensions and weight, recommended charger settings (absorption and float voltages), continuous and peak discharge current ratings, cold temperature charging restrictions, and warranty duration and coverage.
Practical Purchase Checklist
You’ll make a better purchase if you cross-check a few details before checkout. Confirm capacity, terminal type, mounting holes, shipping restrictions, and warranty.
Essential items to verify
- Exact model and Ah rating you need.
- Compatible charger settings and cable connectors.
- Physical dimensions and weight for your mounting space.
- Seller’s return policy, warranty, and customer reviews.
Frequently Asked Questions (FAQ)
You likely have a few specific questions; here are common ones and practical answers.
Q: Can I use this pack as a drop-in replacement for a 12V lead-acid battery? A: Often yes electrically, but check terminal types, dimensions, and whether your system’s charger is LiFePO4-compatible. Also consider that LiFePO4 delivers higher usable capacity, so resetting battery monitors may be necessary.
Q: Can I connect multiple packs in parallel? A: You can, but only connect identical new packs of the same capacity and state of charge. Parallel is generally safer than series, but follow the manufacturer’s guidance.
Q: How long will the battery last in storage? A: Stored at ~50% SOC in cool conditions, a LiFePO4 pack will maintain health for months. Check and recharge periodically (every 3–6 months) depending on self-discharge and BMS standby drain.
Q: Is the battery safe on boats and RVs? A: Yes; LiFePO4 is commonly used in marine and RV applications due to safety, long life, and high usable capacity. Ensure secure mounting and proper fuse protection.
Final Recommendation
If you need a 12V, portable, safer lithium battery with higher usable capacity and long cycle life for cameras, robotics, marine trolling motors, RV appliances, or small off-grid systems, this “12V 6Ah 12Ah 18Ah 24Ah 30Ah LiFePO4 Battery Pack 12.8V 400Wh Rechargeable Lithium Iron Phosphate Batteries for Camera Spare Robotics,12v,12Ah” family is a solid option. Choose the capacity that matches your load and runtime needs, verify charger compatibility, and confirm warranty and support from the seller.
Last tips before purchase
Make sure the charger you plan to use is compatible with LiFePO4 charging profiles, mount the battery securely, and protect the positive terminal with an inline fuse. With proper setup and care, you’ll get a lightweight, efficient power source that’ll simplify your mobile and backup power needs for years.
