? Are you looking for a lightweight, reliable power pack to keep your fish finder running, support a small solar setup, or power your outdoor camping gear?

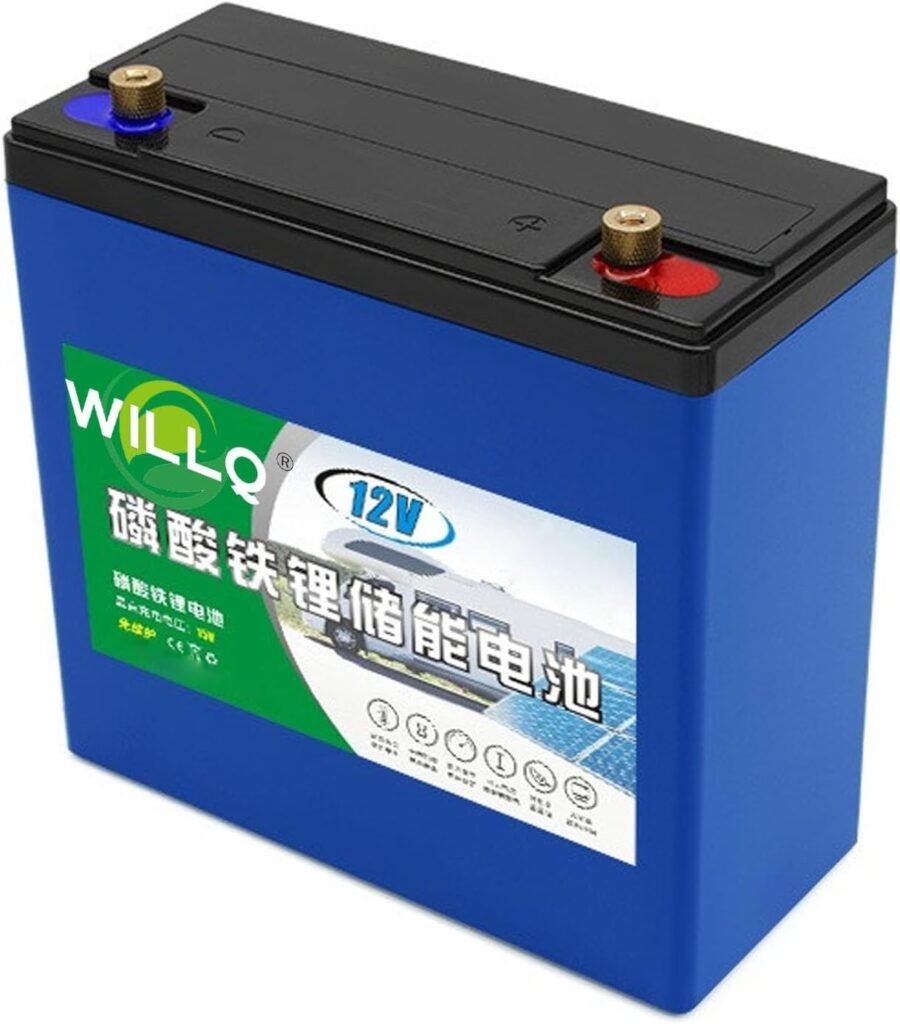

Product overview: 12 Volts LiFePO4 Lithium Battery 12V 18Ah 24Ah 30Ah 36Ah 42Ah 50Ah 60Ah 66Ah Rechargeable Deep Cycles Battery for Fish Finder/Solar/Outdoor Camping
You’re reading about a family of 12V LiFePO4 batteries offered in capacities from 18Ah up to 66Ah. These batteries are marketed as compact, portable, and optimized for outdoor use, with a built-in Battery Management System (BMS) and a smart LCD for real-time power and voltage readout.
What the product promises
You’ll get a 12V lithium iron phosphate chemistry that weighs roughly one-third of a comparable lead-acid battery, can be positioned in any orientation, and includes internal potting to keep components quiet and stable during transport. The BMS provides protections against overcharge, over-discharge, over-current, and short circuit, and the battery warns you to recharge when the display reads 20–30% power remaining. The manufacturer also specifies that the connected load must not exceed 800W.
Key specifications and what they mean for you
You’ll want to understand the core specs so you can match a battery size to your devices. The available nominal capacities are 18Ah, 24Ah, 30Ah, 36Ah, 42Ah, 50Ah, 60Ah, and 66Ah at 12V. The battery features a smart LCD that shows voltage and remaining power, and an internal BMS that prevents common abuse conditions.
Orientation and portability
Because the cells are LiFePO4 and the pack is sealed and potted, you can mount the battery vertically, horizontally, or lay it flat without worrying about venting or electrolyte leaks. This flexibility makes it easier to fit the battery into tight compartments on boats, in camping boxes, or in RVs.
Weight and size considerations
These LiFePO4 units are advertised at about one-third the weight of lead-acid equivalents. You’ll notice this immediately when carrying the battery to and from your campsite or mounting it in a kayak or small boat. The lighter weight reduces strain on mounting hardware and makes portable setups far easier to manage.

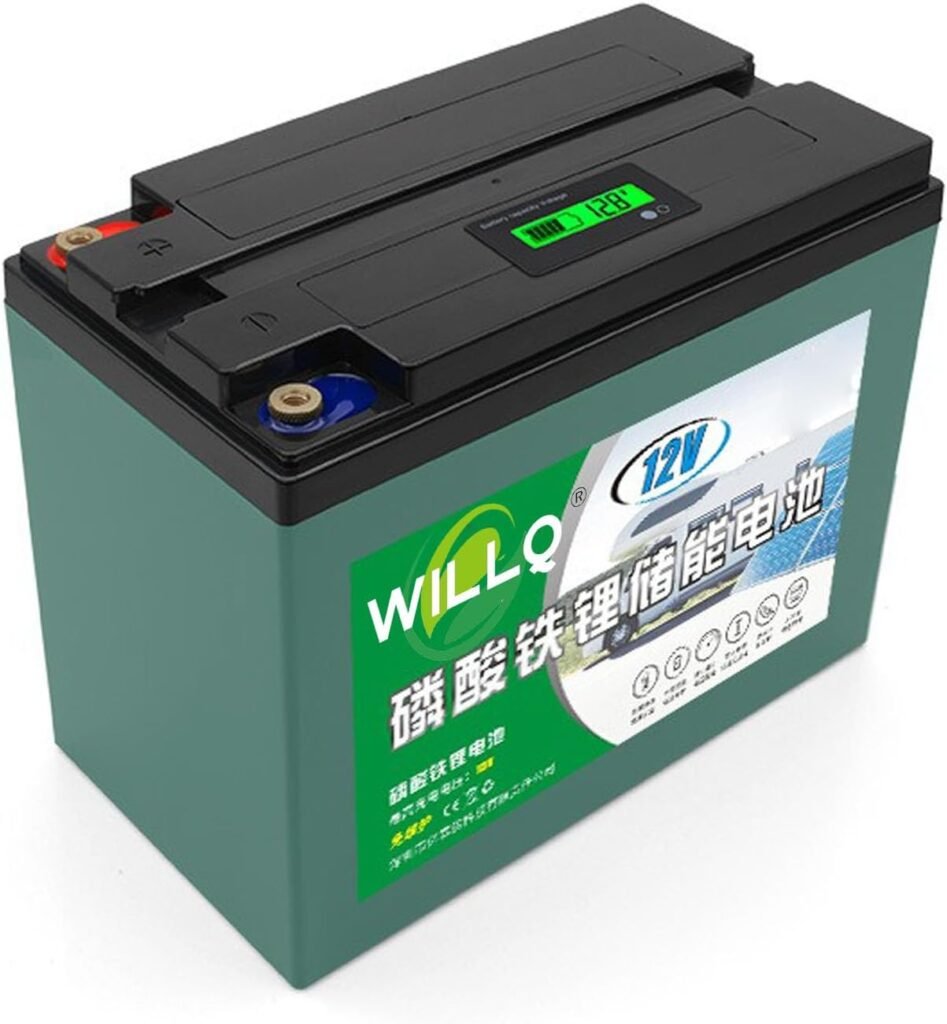

The built-in BMS and LCD — how they help you
The built-in Battery Management System is your battery’s “safety brain.” It monitors voltage, current, and temperature to prevent damage from overcharge, over-discharge, short circuits, and overcurrent situations. The LCD keeps you informed in real time so you can avoid letting the pack sit at dangerously low charge levels.
What the LCD display tells you
You’ll see voltage and a power percentage on the LCD. When it reads 20%–30% remaining, you’re advised to charge soon. That recommendation is aimed at prolonging your battery life and avoiding deep discharges that can shorten cycle life.
Typical BMS actions
The BMS will automatically cut off output if the battery voltage falls below a safe threshold or if a dangerous current/short occurs. If you draw too much at once, the BMS may temporarily disconnect output until the condition clears. This protects the cells, even if it’s inconvenient in the moment.
Safety and charging guidance
You’ll appreciate that LiFePO4 is among the safer lithium chemistries, with greater thermal stability compared to many other lithium-ion types. Still, you’ll want to follow best practices for charging, storage, and use.
Charging recommendations and limits
The manufacturer doesn’t publish a precise recommended charge current in the provided text, so be conservative until you confirm the spec. A safe rule of thumb is to charge at 0.2C to 0.5C (where C is the Ah rating). That means:
- For an 18Ah battery, 0.2C = 3.6A and 0.5C = 9A.
- For a 66Ah battery, 0.2C = 13.2A and 0.5C = 33A.
Charging faster than the battery’s rated maximum may be possible if the cells and BMS support it, but you should consult the seller or datasheet before applying higher currents. Overcurrent protection in the BMS may limit charging if you exceed safe values.
Avoiding over-discharge and when to charge
The LCD recommendation to charge when the display reads roughly 20%–30% is good practice. You’ll extend cycle life by avoiding repeated deep discharges; LiFePO4 tolerates deeper discharge better than many chemistries, but staying above roughly 20% is prudent for longevity.
Practical runtime estimates (real-world examples)
You’ll find it helpful to know how long each capacity will run common devices. The table below gives approximate runtimes under clear assumptions. Assumptions: usable capacity ≈ 80% of rated Ah (i.e., you avoid discharging below ~20%); currents shown are DC currents at 12V; inverter loads account for a typical inverter efficiency of 85% when converting to AC.
| Capacity (Ah) | Usable Ah (80%) | Fish finder (2A) hours | LED light (0.5A) hours | Small 12V fridge (4A) hours | AC device via 60W inverter (hours) |
|---|---|---|---|---|---|
| 18Ah | 14.4Ah | 7.2 h | 28.8 h | 3.6 h | 2.4 h |
| 24Ah | 19.2Ah | 9.6 h | 38.4 h | 4.8 h | 3.3 h |
| 30Ah | 24.0Ah | 12.0 h | 48.0 h | 6.0 h | 4.1 h |
| 36Ah | 28.8Ah | 14.4 h | 57.6 h | 7.2 h | 4.9 h |
| 42Ah | 33.6Ah | 16.8 h | 67.2 h | 8.4 h | 5.7 h |
| 50Ah | 40.0Ah | 20.0 h | 80.0 h | 10.0 h | 6.8 h |
| 60Ah | 48.0Ah | 24.0 h | 96.0 h | 12.0 h | 8.1 h |
| 66Ah | 52.8Ah | 26.4 h | 105.6 h | 13.2 h | 9.0 h |
You’ll notice runtimes scale directly with Ah when you use DC loads. For inverter-powered AC devices, take inverter efficiency into account — the battery sees higher currents to produce the same AC wattage.
Charging time examples
You’ll want to know how long it will take to charge a given pack depending on the charger you use. The table below shows estimated charging times using a simple formula: Time ≈ (Ah / charge current) × 1.2 to allow for charging inefficiencies and absorption/phases.
| Capacity (Ah) | Charge @ 3A | Charge @ 6A | Charge @ 10A | Charge @ 20A |
|---|---|---|---|---|
| 18Ah | 7.2 h | 3.6 h | 2.2 h | 1.1 h |
| 24Ah | 9.6 h | 4.8 h | 2.9 h | 1.4 h |
| 30Ah | 12 h | 6 h | 3.6 h | 1.8 h |
| 36Ah | 14.4 h | 7.2 h | 4.3 h | 2.2 h |
| 42Ah | 16.8 h | 8.4 h | 5.0 h | 2.5 h |
| 50Ah | 20 h | 10 h | 6.0 h | 3.0 h |
| 60Ah | 24 h | 12 h | 7.2 h | 3.6 h |
| 66Ah | 26.4 h | 13.2 h | 7.9 h | 4.0 h |
Be cautious: these times are illustrative and assume your charger can source the current safely and that the BMS doesn’t limit the charge rate. If you don’t know the battery’s max charge current, stick to conservative currents (e.g., 0.2C) or check the specs.
Load limit and current considerations
The manufacturer states the connected load power must not exceed 800W. You’ll want to translate that into current to plan fusing and wiring. At 12V nominal, 800W corresponds to about 66.7A (800W ÷ 12V ≈ 66.7A). That means:
- You should avoid continuous loads above ~66A unless you confirm the BMS supports higher peaks safely.
- Size your fuses and cables to safely handle expected currents. For example, if you plan to draw near the 800W limit, choose cables and fuses rated for continuous currents comfortably above 66A (consult a technician for exact cable sizing based on run length and insulation).
Fuse and cable advice
You’ll want to protect the battery with an appropriately rated fuse near the battery positive terminal. A practical approach is to install a fuse sized slightly above your expected maximum continuous current but below any wiring or BMS limits. For example, if your system will draw up to 60A, a fuse in the 70–80A range may be suitable, but confirm with an installer or the battery spec sheet. Use AWG cable sizes appropriate to current and length—if you plan high current draws, use thicker cables (e.g., 4–6 AWG for high-current short runs), and always follow local code and professional advice.
How it fits into different use cases
You’ll find these batteries useful across a range of portable and fixed uses. Below are examples of how to choose capacity for typical scenarios.
Fish finder and small marine electronics
If you primarily need power for a fish finder, radio, and a few lights, even the 18Ah or 24Ah units will often be sufficient. You’ll get many hours of run time because fish finders typically draw only a few amps. Put the battery in a dry, ventilated compartment and secure it to avoid movement.
Camping and portable lighting
For extended nights of LED lighting, phone charging, and small appliances, the 30–50Ah range strikes a good balance between runtime and portability. You’ll carry less weight than a lead-acid setup and you can mount the battery in a camp box or camper with minimal fuss.
Small solar setups and emergency backup
If you plan to use the battery as part of a small solar system, choose capacity based on your daily consumption and solar panel output. A 50–66Ah pack gives you useful buffer for overnight loads and cloudy days, and the LiFePO4 chemistry handles frequent charge/discharge cycles better than lead-acid for off-grid use. Ensure your solar charge controller is configured for LiFePO4 charging profiles and that the panel array can recharge the pack adequately during available sun hours.
Portable fridge or 12V appliances
If you want to run a small 12V fridge, plan on a larger pack (50–66Ah) if you need several hours of autonomy without charging. Fridges can have variable draw depending on duty cycle, temperature, and insulation, so give yourself margin.
Installation and wiring steps
You’ll benefit from a systematic approach when installing the battery. Follow these recommended steps to keep things safe and straightforward.
Basic installation checklist
- Choose a dry, well-ventilated location that keeps the battery secure from movement. The pack can be mounted in any orientation, but avoid areas with extreme heat.
- Install a fuse on the positive lead close to the battery terminal sized slightly above your expected continuous current draw.
- Use appropriate cable gauges for the current and run length, and secure cables to prevent chafing.
- Connect loads and chargers to the terminals, and verify polarity before powering devices.
- If integrating with a solar controller or inverter, set the charge profile to LiFePO4 if the controller supports it.
- Monitor the LCD during first uses to verify correct behavior and to understand typical voltage and state-of-charge for your load.
Parallel and series considerations
You can typically connect identical LiFePO4 batteries in parallel to increase capacity, but you should only parallel batteries that are the same model, capacity, age, and state-of-charge to minimize imbalance issues. Series connections to create higher voltages (e.g., 24V) may be possible, but you must ensure each battery has matching characteristics and that the BMS supports such configurations. If you plan to paralleled or series-connect packs, consult manufacturer guidance or a qualified electrician.
Lifespan and cycle life
You’ll be pleased to know LiFePO4 batteries are notable for long cycle life compared to lead-acid. Typical LiFePO4 packs often deliver from 2,000 to 5,000 cycles at moderate depth-of-discharge, depending on cell quality and operating conditions. In practice, that means you can expect many years of reliable service if you avoid extreme temperatures and abusive charge/discharge patterns.
Factors that affect lifespan
You’ll improve battery life by:
- Avoiding repeated deep discharges below 20%.
- Charging regularly and not leaving the battery discharged for extended periods.
- Operating in moderate temperatures (ideally between about 0°C and 30°C for everyday use).
- Avoiding sustained high-current draws near the BMS or cell limits.
Maintenance and storage
You won’t need much maintenance, but following a few simple rules will keep the battery healthy.
Short-term maintenance
You should occasionally check terminal tightness, keep terminals clean, and make sure the LCD reads normally. If you operate the batte ry in a dusty or wet environment, consider additional protective enclosures.
Long-term storage
If you store the battery for weeks or months, keep it at about 40%–60% state-of-charge and in a cool, dry place. Avoid leaving it at 0% or fully charged for long periods when storing. Check the battery every few months and top up the charge if it drifts down.
Pros and cons — quick summary for your decision
You’ll find this section helpful if you want a quick thumbs-up/thumbs-down decision.
Pros
- Much lighter than lead-acid alternatives (about one-third the weight).
- Flexible mounting orientation — vertical, horizontal, or flat.
- Built-in BMS and LCD for protection and monitoring.
- Low self-discharge when left unused.
- Suited for portable uses like camping, fish finders, and small solar systems.
Cons
- Manufacturer-specified continuous load limit (800W) constrains heavy inverter use.
- You’ll need to confirm max charge/discharge currents if you plan high-rate charging or heavy loads.
- LiFePO4 is more expensive upfront than lead-acid, though life-cycle cost is usually better.
Troubleshooting common issues
If you run into trouble, you’ll usually be able to diagnose and correct issues without returning the battery.
Battery shows low immediately after charging
If the LCD reads low after charging, check charger settings and connections. Ensure the charger is suitable for LiFePO4 chemistry and that the BMS didn’t cut in during charge due to an overcurrent or thermal condition.
BMS cuts output under heavy load
If the battery shuts down during a high current event, reduce load and allow the pack to rest. If this happens repeatedly at moderate loads, consult the manufacturer — you may be hitting a BMS current threshold.
LCD is unresponsive or incorrect
If the LCD behaves strangely, fully disconnect the battery from all loads and chargers, wait a few minutes, and reconnect. If the display remains incorrect, contact support — the internal electronics or BMS may need service.
Environmental and recycling notes
You’ll be doing the environment a favor relative to lead-acid if you choose LiFePO4. These cells are less toxic and generally easier to recycle than older chemistries, though you should still recycle them through appropriate battery recycling programs when they reach end-of-life.
Disposal guidance
When the pack reaches end-of-life, seek a qualified recycling facility. Never incinerate or puncture lithium batteries, and follow local regulations for battery disposal.
Buyer guidance — which capacity to choose
You’ll select capacity based on your expected loads, desired runtime, and weight considerations.
- Choose 18–24Ah if you mainly need a compact battery for electronics, fish finders, or a few hours of lighting.
- Choose 30–42Ah for multi-night camping, larger light loads, or as a small backup battery.
- Choose 50–66Ah if you need extended runtime for a fridge, multiple devices, or a small solar-backed system.
Also weigh physical size and portability — the larger the Ah, the more weight and bulk you’ll carry, though still considerably lighter than lead-acid equivalents.
Warranty, support and final buying tips
You’ll want to confirm warranty terms and after-sales support before buying. Ask the seller about the number of cycles guaranteed, warranty period, support for BMS or LCD issues, and any stipulations related to improper use.
Questions to ask the seller
Ask directly about:
- Maximum continuous discharge and charge currents.
- Recommended charge profile or voltages.
- Warranty duration and what it covers.
- Official datasheet or technical manual for the pack.
Final recommendation
You’ll get a strong mix of portability, safety, and cycle life with the “12 Volts LiFePO4 Lithium Battery 12V 18Ah 24Ah 30Ah 36Ah 42Ah 50Ah 60Ah 66Ah Rechargeable Deep Cycles Battery for Fish Finder/Solar/Outdoor Camping.” If you need a lighter, longer-lasting alternative to lead-acid for fish finders, camping setups, and small solar systems, these batteries are worth serious consideration. Make sure to select the right Ah capacity for your usage, confirm charging and discharge limits with the seller, and follow basic wiring, fusing, and storage best practices to get the most life and performance from your pack.
Frequently asked questions
You’ll likely have a few common questions before buying — here are concise answers.
Q: Can you use this battery in marine environments? A: Yes, but place it in a dry, secure compartment and protect terminals from corrosion with appropriate covers and dielectric grease. It’s sealed, but the environment should still be sheltered from direct spray if possible.
Q: Can you stack or parallel multiple units? A: You can parallel identical units for increased capacity, but only parallel batteries of the same model, age, and state-of-charge. For series configurations to obtain higher voltage, consult the manufacturer and a professional installer.
Q: How do you know when to replace the battery? A: If capacity drops significantly (e.g., under 60–70% of original) or if the BMS or LCD shows persistent faults, it’s time to consider replacement. Long cycle history and many deep discharges also indicate wear.
Q: Is the 800W limit a hard cutoff? A: The 800W connected load recommendation appears to be a guideline likely based on BMS and pack thermal limits. Translate that to ~66A at 12V and avoid continuous draws above that unless you have explicit technical confirmation the pack supports higher currents.
If you want, tell me the devices you plan to power (fish finder model and draw, fridge spec, lights, inverter wattage, solar panel wattage), and I’ll help you choose the right capacity and estimate runtimes and charging needs for your setup.
