24V 150Ah LiFePO4 Battery review

Could this 24V LiFePO4 battery be the reliable, long-lasting power source we need for our RV, boat, solar setup, or golf trolley?

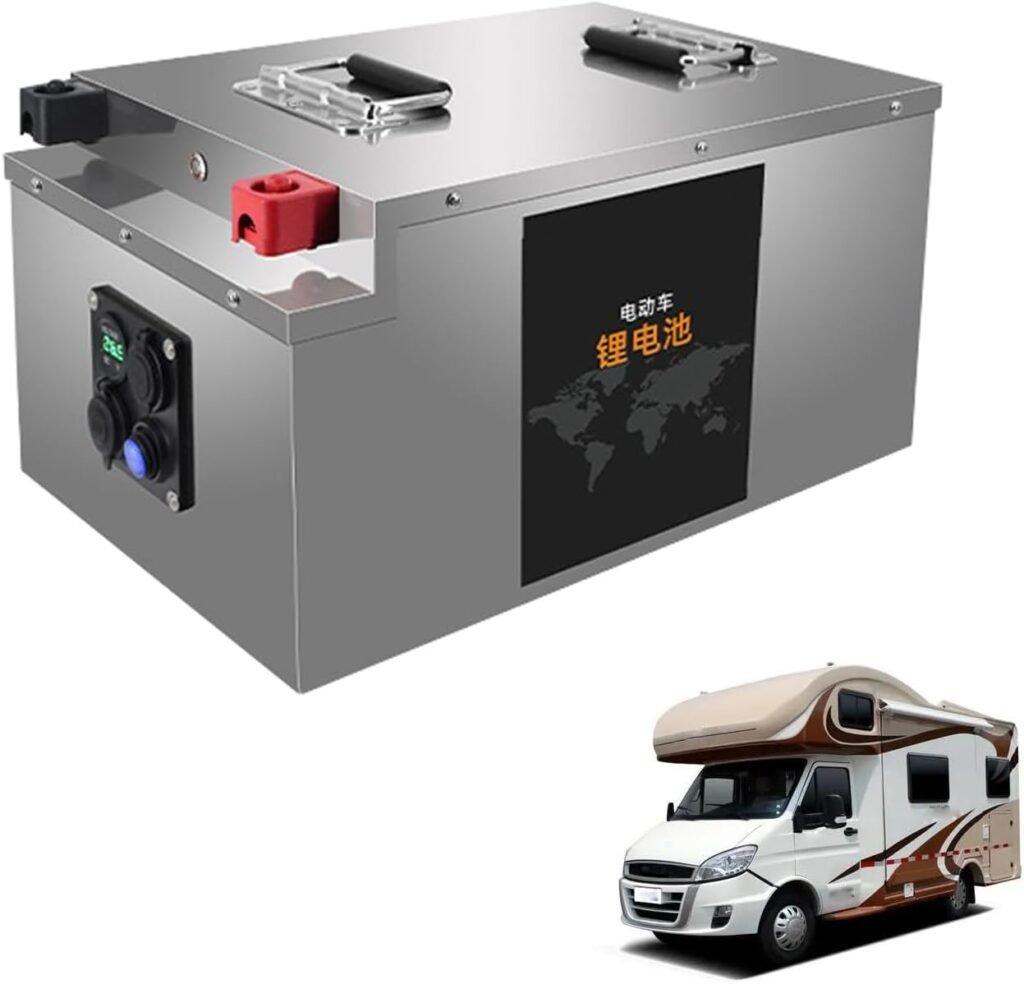

Product overview

We want to get straight to what this product is: the “24V 100Ah 150Ah 200Ah 300Ah LiFePO4 Battery 25.6V Lithium Batteries with 100A BMS 3500+ Rechargeable Battery for RV/Boat/Golf Trolley/Solar/Camper Battery,24V150Ah” is a family of 24V (nominal 25.6V) lithium iron phosphate batteries offered in multiple capacities. We appreciate that a single product line spans several capacities (100Ah through 300Ah), which makes it easier for us to pick the right size for different applications without changing brands or interfaces.

We like that the manufacturer highlights a robust 100A BMS, an IP65-rated enclosure, and over 3,500 charge cycles. Those are the headline features that matter when we think about longevity, safety, and practical daily use.

Specifications (at-a-glance)

We find it helpful to have one clear table that summarizes the main specs for each capacity so that we can compare quickly. Below we list the typical numbers and the manufacturer-provided performance figures, expressed in a consistent way for easier comparison.

Specification	24V 100Ah	24V 150Ah	24V 200Ah	24V 300Ah
Nominal voltage	25.6V	25.6V	25.6V	25.6V
Capacity (Ah)	100Ah	150Ah	200Ah	300Ah
Energy (Wh)	2,560 Wh	3,840 Wh	5,120 Wh	7,680 Wh
Max continuous current (BMS limited)	100A	100A	100A	100A
Estimated max power (nominal V × 100A)	2,560 W	3,840 W	5,120 W	7,680 W
Cycle life	3,500+ cycles	3,500+ cycles	3,500+ cycles	3,500+ cycles
Typical weight (approx.)	~23 kg	~28–30 kg	~35 kg	~45 kg
Typical dimensions (mm, approximate)	325×325×180	360×250×230	420×280×220	380×270×330
Case	Cold-rolled sheet metal, IP65	Cold-rolled sheet metal, IP65	Cold-rolled sheet metal, IP65	Cold-rolled sheet metal, IP65
Ports & connectors	Charging socket, Anderson plug, pure copper terminals, USB	Charging socket, Anderson plug, pure copper terminals, USB	Charging socket, Anderson plug, pure copper terminals, USB	Charging socket, Anderson plug, pure copper terminals, USB
Display	HD screen for real-time SOC/power	HD screen for real-time SOC/power	HD screen for real-time SOC/power	HD screen for real-time SOC/power
Common uses	RV/Boat/Golf/ Solar/Camper	RV/Boat/Golf/ Solar/Camper	RV/Boat/Golf/ Solar/Camper	RV/Boat/Golf/ Solar/Camper

We find it important to note that the BMS limits continuous current to 100A across the range, meaning that, for higher-capacity units, the battery offers more usable energy but the same BMS current ceiling unless a different BMS option is specified. The energy numbers use the nominal 25.6V that the manufacturer lists.

Key features

We think the set of features this product bundles together addresses typical requirements for mobile and off-grid use. The LiFePO4 chemistry gives a very stable voltage profile, long cycle life, and improved safety compared with many other lithium chemistries. The built-in 100A BMS provides essential protections against over-charge, over-discharge, overcurrent, and short-circuit events, which are critical in real-world installations.

We also appreciate the physical protection: the metal case is described as fireproof, shockproof, and IP65 waterproof, which is practical for marine and outdoor use. The inclusion of multiple connector types and a small HD screen for status monitoring rounds out a package that’s ready for many installations without extensive customization.

BMS and protection systems

We place a high priority on the Battery Management System because it can make the difference between a safe, long-lasting battery and one that fails prematurely. The 100A BMS in these units handles the basics—overcharge protection, over-discharge protection, overcurrent/short-circuit protection, and cell balancing.

We like that cell balancing is part of the system because it keeps cells within tight voltage ranges across hundreds or thousands of cycles, preserving capacity and extending life. The BMS is also the reason the continuous current is set at 100A; that limit protects the cells from excessive stress, though it means we need to consider inverter and load sizing carefully.

Build quality and enclosure

We find the use of cold-rolled sheet metal for the case to be reassuring from a durability point of view. The manufacturer describes the material as fireproof and shockproof and rates the product as IP65, so it offers good protection against dust and water splashes — useful on boats or in an RV compartment.

We also appreciate that the battery is maintenance-free and that there’s an HD display on the case so we can view the battery state of charge and other stats in real time. The physical footprint and weight are compact for the energy capacity they offer, which makes installation in constrained spaces more realistic.

Ports, connectors, and interface

We like that these batteries come with a variety of connectors to match typical setups: a charging socket, a waterproof Anderson plug, solid pure copper positive and negative terminals for charging and discharging, and USB ports for small devices. The availability of an Anderson plug is particularly convenient when pairing with inverters or chargers that already use that style of connector.

We also appreciate the HD screen because it removes the need to add a separate battery monitor in some installations. That said, if we want full system telemetry we might still integrate a dedicated battery monitor that communicates with chargers and inverters for advanced management.

Capacity and expected performance

We value the flexibility of picking the right capacity for the right job. The 100Ah unit provides about 2.56 kWh of usable energy at nominal voltage, which is often enough for small day trips or backup power for a few loads. The 150Ah adds more runtime, and the 200Ah and 300Ah models start to move into power that can support longer off-grid stays or higher continuous loads.

Because the 100A BMS limits continuous current, the maximum power we can draw without tripping the BMS is roughly the nominal voltage times 100A (25.6V * 100A = 2,560W). For larger capacities, the limiting factor becomes stored energy rather than continuous current delivery—unless higher peak currents are needed, in which case we would have to consider parallel or different BMS solutions.

Runtime examples (practical scenarios)

We like to translate specs into real-world runtime estimates because that’s what matters most for planning. Below are practical examples using nominal numbers and assuming inverter efficiency where applicable.

• 100Ah (2,560 Wh usable):
  • 12V fridge (roughly 60W average draw): ~42 hours (2,560 Wh ÷ 60W = 42.7 h)
  • 1,000W inverter load (continuous, ~90% inverter eff): ~2.5 hours (2,560 Wh ÷ (1,000W/0.9) ≈ 2.3 h)
• 150Ah (3,840 Wh usable):
  • 60W fridge: ~64 hours
  • 1,000W inverter load: ~3.5 hours
• 200Ah (5,120 Wh usable):
  • 60W fridge: ~85 hours
  • 2,000W inverter load (assuming inverter + ineff losses): ~2 hours
• 300Ah (7,680 Wh usable):
  • 60W fridge: ~128 hours
  • 2,000W inverter load: ~3 hours

We want to emphasize that these numbers are approximate and assume that we use most of the battery capacity, inverter efficiency of around 85–95% depending on load and unit, and that ambient conditions and aging don’t materially reduce capacity.

Charging and charging profiles

We think it’s important to use a charger or solar charge controller that is LiFePO4-compatible. LiFePO4 cells prefer a bulk/absorption profile with a relatively low float voltage compared to lead-acid chemistries. For a nominal 25.6V pack, the recommended bulk/absorption voltage is typically around 28.4–28.8V, with equalization not required. Float charging at a lower voltage, or no float at all, is common for LiFePO4.

We recommend setting charging equipment (inverter/charger or solar MPPT controller) to LiFePO4 settings when possible, or to voltages specified by the battery manufacturer if those are provided. Using the incorrect charging profile can stress the cells and reduce cycle life.

Recommended charging approaches

• AC charger: Use a LiFePO4-compatible charger or settable charger configured to the appropriate charge voltages mentioned above. Monitor the initial charge cycles and battery temperature on the HD screen to ensure normal operation.
• Solar: Use an MPPT charge controller with a LiFePO4 profile or adjustable voltage settings. Ensure that the controller’s maximum input voltage and current ratings fit your PV array and the battery BMS input limits.
• DC-DC charger from vehicle alternator: Use a DC-DC charger designed for LiFePO4 to ensure correct voltage and current regulation when charging from an alternator. This is especially useful for vehicle, RV, or marine installations.

We like that the battery supports cyclic charging, which aligns well with solar usage where daily charge/discharge cycles are typical.

Installation tips and best practices

We prefer careful planning before installation. Because the case is metal and terminals are copper, we always ground the battery correctly and ensure polarity is correct before connecting any loads. We recommend using appropriately sized cables for the current (100A continuous capability means using cables rated for that load with minimal voltage drop).

We also suggest mounting the battery in a secure location with some ventilation and vibration protection, particularly for mobile applications. Even though the battery is IP65, we avoid placing it in locations that trap heat, and we keep it away from direct flame sources.

Wiring and fusing

We think a proper fuse or DC breaker sized for the BMS and cable is essential. A main fuse should be placed as close to the positive terminal as practical, sized slightly above the BMS continuous rating if temporary surges are expected but not exceeding the BMS short-circuit management. For example, with a 100A BMS, a 150A appropriately rated fuse or smart breaker can provide protection for wiring while allowing occasional peaks (subject to manufacturer guidance). Always consult the battery manual for exact fuse sizing recommendations.

Parallel and series use

We like that LiFePO4 chemistry is modular, but we caution that putting batteries in series or parallel requires matching units by capacity, age, and internal resistance. The manufacturer’s documentation should be reviewed before connecting multiple units in series (for higher voltage) or parallel (for higher capacity). The onboard BMS may or may not support multi-unit communication for cell balancing across packs, so we recommend sticking to identical units from the same production batch where possible.

Safety considerations

We take safety seriously. LiFePO4 chemistry is more thermally stable than many lithium types, which makes it safer in terms of thermal runaway risk. That said, we still treat the battery with respect: we avoid physical shock to the pack, keep it away from corrosive chemicals, and protect terminals from accidental shorting.

We appreciate the IP65 rating for dust and splash protection, and the metal case helps protect cells against impact. The built-in protections in the BMS mitigate common electrical risk scenarios, but we still recommend using appropriate fusing, correct wire gauges, and installation practices.

Environmental operating conditions

We typically expect LiFePO4 batteries to perform best between -20°C and +60°C for storage and operation, but charging at very low temperatures can stress the cells. Many LiFePO4 packs discourage charging below 0°C unless the battery has internal heating. We advise confirming the manufacturer’s recommended operating temperature windows, especially if we plan to use the battery in cold climates.

Real-world use cases

We find this range of batteries well-suited for several distinct real-world scenarios:

• RV and camper: The 150Ah or 200Ah units are often sweet spots for couples or small families who want to run fridges, lights, and electronics off-grid for several days.
• Marine (boats): A compact, vibration-resistant case and IP65 rating make these batteries good for small to medium-sized boats where weight and footprint matter. Parallel installations can increase capacity for longer trips but should be done carefully.
• Golf trolleys and electric carts: Lower-capacity units (100–150Ah) can supply motors and electronics while remaining manageable in weight and size.
• Solar off-grid systems: The LiFePO4 chemistry and support for cyclic charging make these batteries ideal for daily solar use; the HD display helps us keep an eye on SOC without additional equipment.
• Emergency backup: The 300Ah unit can provide extended runtime for critical circuits during outages, while smaller units can cover essentials like sump pumps, lights, and communications gear.

We like that the same family of batteries can be selected to match different needs, which simplifies spare parts, integration, and ongoing maintenance.

Maintenance and lifecycle expectations

We prefer low-maintenance systems, and LiFePO4 generally delivers. The manufacturer states 3500+ cycles, which we interpret as deep cycles at recommended depth-of-discharge levels with proper charging. With gentle cycling (e.g., 80% DOD or less) and correct charging profiles, we expect usable capacity to remain quite high after several years of service.

We recommend periodic checks of terminal tightness, visual inspection for corrosion or physical damage, and monitoring the HD screen to spot any irregularities in voltage or cell balancing alerts. Batteries should be stored at a partial state of charge (around 40–60%) for long-term storage to preserve health.

Pros and cons

We think the pros and cons below reflect realistic expectations for these products in typical installations.

Pros

• Long cycle life (3,500+ cycles) which reduces replacement frequency and total cost of ownership.
• Stable LiFePO4 chemistry with improved safety characteristics versus many other lithium variants.
• Multiple capacity options (100–300Ah) let us choose energy vs. weight/size trade-offs.
• 100A BMS provides core protections and simplifies integration.
• IP65-rated metal case for robust environmental protection and physical durability.
• HD screen for on-board monitoring reduces need for additional gauges.
• Multiple connectors (Anderson, copper terminals, USB) for versatile installation.

Cons

• 100A continuous BMS limit may be a constraint if we want very high continuous discharge; for heavy loads we might prefer a different BMS rating or multiple packs in parallel with combined BMS strategy.
• Weight and size still significant at higher capacities; installation planning and secure mounting are required.
• Lack of explicit CAN/COMM interface in the standard description means advanced telemetry integration might require additional hardware.
• Charging below recommended temperatures may require special handling or external heaters if used in freezing environments.

We find that these trade-offs are common across the LiFePO4 market and that they’re often acceptable given the benefits.

Comparison with lead-acid and other battery types

We think it’s helpful to compare this LiFePO4 product line to lead-acid and other lithium chemistries:

• Versus lead-acid (flooded or AGM): LiFePO4 provides many more cycles, deeper discharge capability, less weight for equivalent usable energy, and higher usable capacity per charge. That typically translates to lower lifecycle costs. Lead-acid may be cheaper upfront but will usually require replacement sooner and need more maintenance.
• Versus other lithium chemistries (NMC, LCO): LiFePO4 offers better thermal stability and longer cycle life at the expense of slightly lower energy density. For mobile/off-grid uses where safety and lifecycle matter, LiFePO4 is often the preferred choice.
• Versus portable power stations: Dedicated battery packs like these provide more flexibility for integration into larger systems and for higher continuous currents when paired with the right inverter, whereas portable stations are convenient but often less modular.

We prefer LiFePO4 for vehicle and stationary off-grid energy storage where safety, cycle life, and usable capacity are priorities.

Troubleshooting and common issues

We recommend that we and any installers are aware of the common issues and remedies:

• BMS shutdown due to overcurrent: Reduce load, allow the BMS to reset, and check wiring for shorts or mis-sizing. If faults persist, consult the vendor or manufacturer.
• Charging limit at very low temperatures: Stop charging until the battery warms above the recommended threshold or use a charger/DC-DC unit with built-in battery heating if supported.
• Unexpected voltage behavior or rapid drop in SOC: Check for poor connections, damaged cables, or incorrect charging settings. If necessary, contact support and provide screen readouts or error codes.
• Balancing warnings: If the BMS indicates cell imbalance, allow a charge cycle and consult the manual; persistent imbalance may indicate a cell issue requiring warranty support.

We also keep firmware and documentation at hand and, where possible, register the product for support and warranty.

Frequently asked questions (FAQ)

Q: Can we use this battery with any inverter? A: We recommend verifying that the inverter input voltage range matches the battery nominal voltage (25.6V nominal) and that the inverter’s DC input connectors are compatible. Also ensure continuous current draw does not exceed the 100A BMS limit, or use an inverter with a lower continuous rating or soft-start features.

Q: Is the battery safe for marine use? A: The IP65 enclosure and shock-resistant metal case make it suitable for many marine environments, but we still recommend mounting in a protected compartment and confirming any marine regulatory or installation requirements for your vessel.

Q: Can we connect multiple batteries in parallel? A: Yes, but we advise using identical battery models, same age/charge state, and following manufacturer guidance for parallel connections. Proper fusing and wiring and, if available, a communication link between BMS units improves safety and balancing.

Q: How long will the battery last in calendar years? A: Lifespan depends on cycle frequency, depth-of-discharge, and environmental conditions. With average cycling and proper charging, the 3,500+ cycles figure suggests many years of service—commonly 7–12 years depending on use patterns.

Q: Do we need a battery heater for cold-weather operation? A: Charging below 0°C can be harmful to LiFePO4 cells. If charging in freezing conditions is required, consider a battery with internal or external heating or use a charger/DC-DC unit that handles cold-charge situations. Check the manufacturer’s temperature recommendations.

Pricing and value for money

We evaluate value not only by upfront cost but by total cost of ownership. Given the long cycle life, relatively low maintenance, and improved usable capacity compared to lead-acid, we typically find LiFePO4 batteries to be cost-effective over a multi-year horizon. The fact that this product line spans multiple capacities means we can choose the smallest unit that meets our needs and avoid paying for unused capacity.

We also consider the savings on fuel or generator runtime, reduced weight in transport applications, and fewer replacements over time when assessing value.

Warranty and customer support considerations

We advise checking the specific warranty terms with the vendor or reseller before purchase because warranty length and coverage can vary by seller or by capacity. We generally expect a multi-year warranty on LiFePO4 packs when purchased from reputable sellers; ensure the warranty covers manufacturing defects and includes clear instructions for registering the product and making claims.

Good customer support is crucial for battery systems. We recommend buying from vendors who provide clear documentation, responsive technical support, and straightforward RMA processes in case of early-life issues.

Final recommendations and buying tips

We recommend the following approach when choosing from this product line:

• Match capacity to realistic energy needs rather than theoretical maximums. Use the runtime examples above to estimate your consumption.
• Size the inverter and loads with the 100A BMS current limit in mind. For high continuous loads, consider parallel packs or a different BMS rating.
• Use LiFePO4-capable charging equipment or configure chargers and MPPT controllers to LiFePO4 voltages.
• Plan installation locations that provide ventilation, simple access for monitoring the HD screen, and secure mounting for mobile use.
• Verify warranty terms and buy from a seller who provides clear support and documentation.

We think that for most RV, marine, camper, solar, and golf trolley scenarios, these batteries represent a compelling combination of capacity choices, safety, and long-term value.

Final verdict

We feel that the “24V 100Ah 150Ah 200Ah 300Ah LiFePO4 Battery 25.6V Lithium Batteries with 100A BMS 3500+ Rechargeable Battery for RV/Boat/Golf Trolley/Solar/Camper Battery,24V150Ah” family is a well-rounded offering that suits a broad set of off-grid and mobile power needs. The combination of LiFePO4 chemistry, the 100A BMS, IP65 metal enclosure, and a built-in HD screen for status makes this product line practical for both DIY integrators and professional installers.

If we prioritize long cycle life, safety, and adaptability across several use cases, these batteries are worth strong consideration—just remember to design around the 100A BMS limit, plan for proper charging, and verify installation and warranty details before purchase.
