? Are we looking for a high-capacity, long-life LiFePO4 cell to build a reliable DIY battery pack for our caravan, marine, or solar energy system?

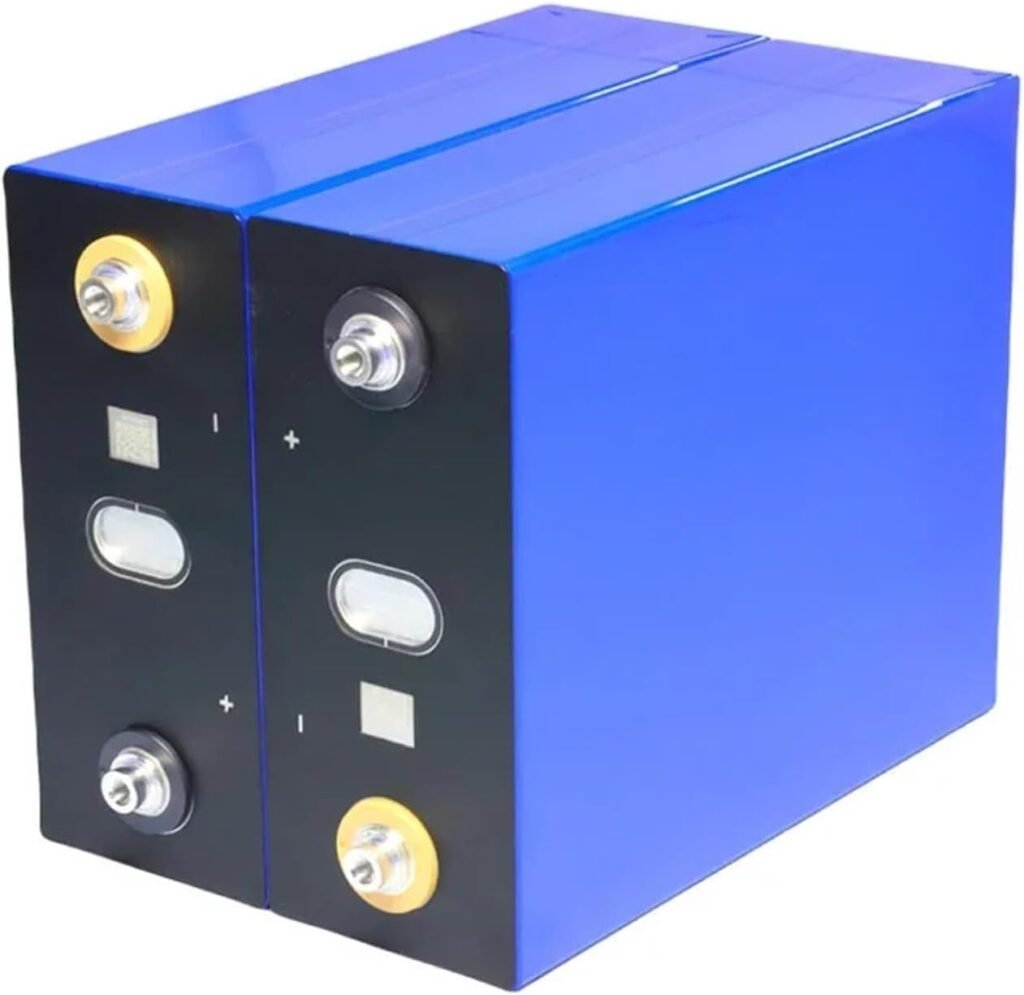

Product overview: 3.2V 340Ah LiFePO4 Cell 10000 Cycle Rechargeable Battery Suitable For DIY 12V 24V 48V Caravan Marine Solar Energy System(3.2V 340Ah 16pcs)
We find this product attractive because it’s a single LiFePO4 cell rated at 3.2V and 340Ah, with the seller offering packs (16 pieces in the product name) intended for building higher-voltage systems such as 12V, 24V, and 48V packs. The seller highlights fast charging capability, a long cycle life of more than 10,000 cycles, and multiple safety protections including overcharge, overdischarge, and short-circuit protection. We’ll walk through what these claims mean for practical use and for building robust DIY battery systems.
Who this cell is for
This cell suits DIYers and system builders who want high-capacity LiFePO4 cells to assemble custom battery banks for caravans, boats, off-grid solar, or backup power. We recommend this when we need high energy per cell, long life, and the flexibility to configure cells in series and parallel.
What we should confirm before buying
The listing highlights protective features and fast charging, but we recommend confirming manufacturer specifications such as maximum charge/discharge current, exact physical dimensions, weight, recommended charge voltage, and warranty terms. Those details affect BMS selection, mounting, and cable sizing.
Key technical specifications (summary)
We like to keep core specs grouped so we can quickly compare and design a pack. Below are the essential numbers provided by the product, rewritten for clarity.
- Nominal cell voltage: 3.2V
- Capacity: 340Ah
- Energy per cell (nominal): 3.2V × 340Ah ≈ 1,088 Wh (1.088 kWh)
- Claimed cycle life: >10,000 cycles (verify test conditions such as DOD and C-rate)
- Safety features: overcharge protection, overdischarge protection, short-circuit protection
- Applications: DIY 12V/24V/48V systems, caravan, marine, solar energy system

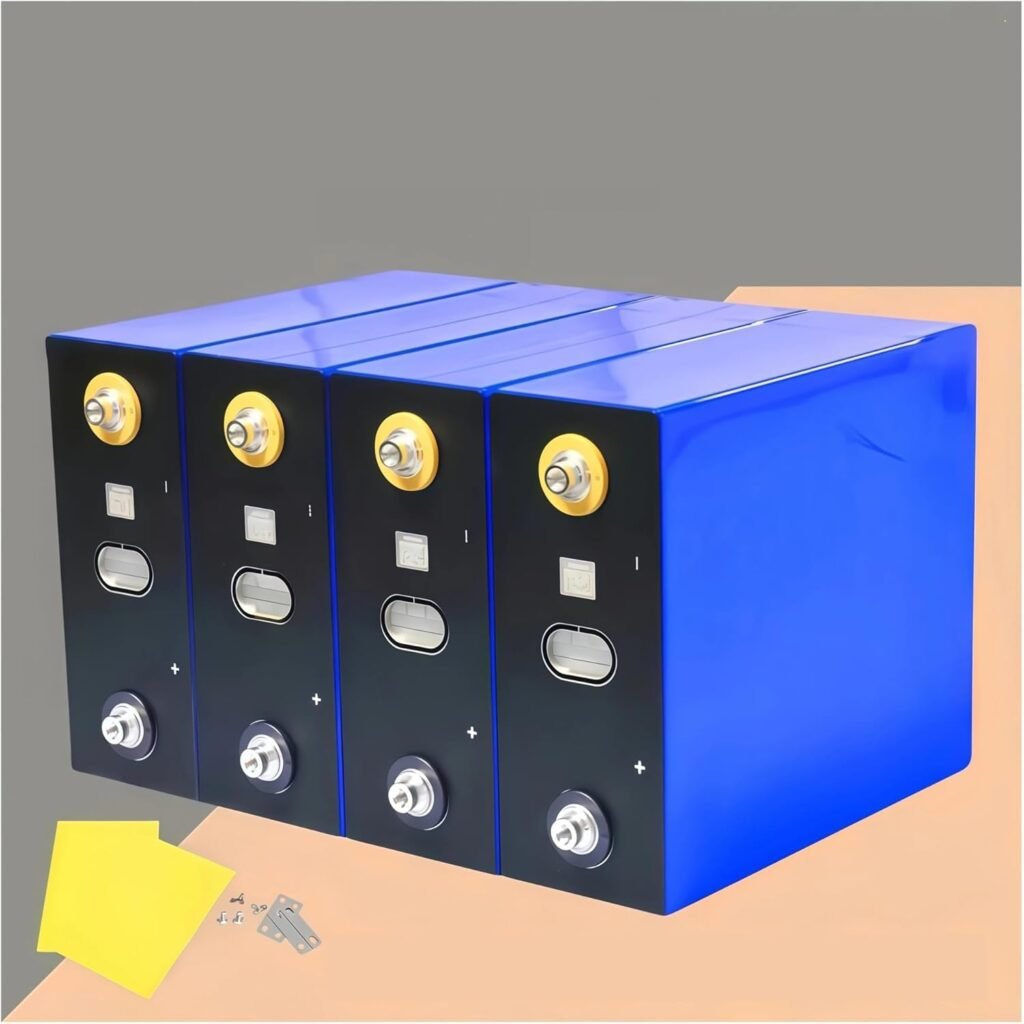

- Quantity in product name: 16 pieces (useful for building 48V nominal packs)
A note on the cycle life claim
We find the 10,000-cycle claim promising, but cycle life depends heavily on depth of discharge (DoD), ambient temperature, charge/discharge rates, and cell management. In practice, LiFePO4 cells can reach thousands of cycles under conservative conditions — we should treat 10,000 as achievable under optimal conditions and with proper BMS and charging.
Technical breakdown table
We like tables to visualize how cells translate into practical packs. The table below shows typical series configurations, nominal pack voltage, and pack energy when using the 3.2V 340Ah cells.
| Configuration | Cells in series (S) | Nominal voltage (V) | Pack capacity (Ah) | Pack energy (Wh) | Typical application |
|---|---|---|---|---|---|
| 12V nominal | 4S | 12.8V | 340Ah | 4,352 Wh (4.35 kWh) | Small camper, cabin backup |
| 24V nominal | 8S | 25.6V | 340Ah | 8,704 Wh (8.70 kWh) | Medium caravan, boat house loads |
| 48V nominal | 16S | 51.2V | 340Ah | 17,408 Wh (17.41 kWh) | Larger solar systems, electric drivetrain |
| Single cell | 1S | 3.2V | 340Ah | 1,088 Wh (1.09 kWh) | Modular testing, bench use |
We find this table useful because the energy scales linearly with series count and keeps capacity constant when cells are only placed in series.
Performance expectations
We expect strong real-world performance if the cells are genuine LiFePO4 with proper manufacturing quality. The 340Ah capacity offers substantial runtime for typical caravan and marine loads, and the chemistry’s thermal stability helps in warm environments.
We should however set realistic expectations: maximum continuous discharge current, peak discharge capability, and charge rates are crucial for performance and longevity. The product description mentions fast charging, but the exact allowed charge current must be verified to avoid overstressing cells.
Charge/discharge rates and C-rates
We should estimate C-rate behavior: 1C for a 340Ah cell equals 340A, which is a very high current that many DIY systems won’t use continuously. For longevity, we prefer charging at 0.2C to 0.5C (68–170A) and discharging at similar or lower rates depending on loads. Fast charging may be supported, but using moderate currents will maximize cycles and reduce heat.
Charging recommendations and BMS requirements
We always install a BMS when assembling multiple cells into packs. LiFePO4 cells require a charger designed for their chemistry, and the charger plus the BMS must match the pack configuration.
We recommend these charging parameters as a starting point (confirm with manufacturer):
- Recommended charge voltage per cell: typically 3.6–3.65V/cell for LiFePO4 (so 14.4–14.6V for a 4S pack)
- Float charging: generally not necessary for LiFePO4, but if used keep it low and conservative
- Charge current: start with 0.2C (≈68A) to preserve lifespan; fast charging up to manufacturer-specified peak may be usable but we proceed cautiously
BMS selection and configuration
We must choose a BMS that matches the series count (4S, 8S, 16S) and the continuous and peak current demands. The BMS should provide:
- Cell balancing
- Overcharge and overdischarge protection
- Overcurrent (discharge) and short-circuit protection
- Temperature monitoring and cut-off
- Communication features (CAN/RS485) if we want telemetry
We always size the BMS continuous current rating above the expected continuous current with margin for peaks. For example, if our loads draw up to 100A continuously, selecting a BMS rated for 150A–200A continuous is prudent.
Wiring, fusing, and mechanical installation
We should treat these cells as heavy electrical components that require secure mounting, correct wiring, and proper fusing for safety.
We recommend:
- Using cables rated for the expected continuous current and with insulation suitable for the environment (marine-grade in boats)
- Installing individual or string fuses to protect against catastrophic short circuits
- Tight, torque-specified terminals and periodic retorquing
- Proper mechanical mounting to prevent vibration damage; use non-conductive spacers and allow airflow for temperature control
Fuses and contactors
Always place a main fuse or circuit breaker sized to protect wiring and cell groups. We prefer to install an accessible and rated DC isolator or contactor to allow safe service and emergency disconnect.
Balancing, matching, and parallel connections
When assembling packs, we should either buy factory-matched cells or match cells by voltage and internal resistance to avoid imbalance. Parallel connections maintain capacity but require careful balancing.
We recommend:
- Using cells taken from the same production batch when possible
- Performing a top-balance when building large packs: charge each parallel group to the same voltage before connecting in series
- Using a BMS with active or passive balancing to maintain equal cell voltages over time
Handling parallel groups
Parallel grouping increases Ah but makes cell replacement harder if a single cell fails. We must ensure tight wiring and equal-length connections to minimize imbalance caused by wiring resistance differences.
Longevity and cycle life in practice
The product’s claim of over 10,000 cycles is ambitious but feasible for LiFePO4 given favorable conditions. We expect the following in real systems:
- At shallow DoD (e.g., 20%–50%), LiFePO4 will provide many thousands of cycles.
- At deeper DoD (e.g., 80%–100%), cycle life will be lower but still typically higher than lead-acid alternatives.
- Proper thermal management, conservative charge/discharge rates, and a reliable BMS will significantly extend usable life.
We should also monitor state of health and replace individual cells or parallel blocks as they degrade to maintain overall pack performance.
Safety features and what they mean to us
The listing mentions overcharge protection, overdischarge protection, and short-circuit protection. These protections are essential for safe operation.
We interpret this as:
- Overvoltage protection prevents cells from exceeding safe per-cell voltage during charging
- Undervoltage protection prevents overdischarge that can damage cells
- Short-circuit protection prevents excessive currents that could cause fires or damage
Additional safety practices
We take additional safety steps beyond built-in protections:
- Always use a certified charger designed for LiFePO4
- Install properly rated fuses and disconnects
- Monitor temperature and avoid charging below freezing unless cells are temperature-rated or heated
- Keep the battery area dry and free from conductive debris
Use cases and practical runtimes
We like to frame performance expectations by application. Below are example use-case scenarios to help estimate runtimes using the pack energies calculated earlier.
- Caravan (4S, 12.8V, 340Ah): With an energy of ~4.35 kWh, we can run a 400W inverter for about 10 hours at 50% usable DoD (approx. 2.17 kWh usable) or longer at lower draw levels.
- Marine house loads (8S, 25.6V, 340Ah): With ~8.7 kWh pack energy in a 24V configuration, we can power lights, pumps, navigation, and appliances for extended trips, depending on daily energy consumption.
- Off-grid solar (16S, 51.2V, 340Ah): With ~17.4 kWh nominal, we can design robust off-grid systems or hybrid battery banks for significant load support and better inverter compatibility with higher-voltage systems.
We recommend sizing packs to provide enough usable energy at your target DoD and factoring in photovoltaic or generator recharge rates.
Installation tips for specific systems
DIY 12V builds (4S)
We prefer 4 cells in series for a 12.8V nominal pack. This configuration is straightforward and integrates with many RV and caravan systems. Ensure the BMS supports 4S configuration and the charger output matches 14.4V–14.6V for full charge.
DIY 24V builds (8S)
For 24V systems, we use 8 cells in series. 24V is often better for longer cable runs and higher-power appliances. A BMS rated for 8S and adequate continuous current is required, and charger voltage should target ~28.8–29.2V for a full charge.
DIY 48V builds (16S)
We recommend 16S for 48V nominal systems (51.2V nominal). This configuration is ideal for larger solar arrays, inverter-charger compatibility, and efficient distribution. The BMS must be a 16S unit with adequate balancing capability and current rating; charger voltage for full charge should be approximately 57.6–58.4V (3.6–3.65V × 16).
Comparison with other battery chemistries
We like to compare LiFePO4 to lead-acid and other lithium chemistries to clarify trade-offs.
- Vs. Lead-acid: LiFePO4 has far greater cycle life, higher usable DoD, less maintenance, lower weight for the same usable energy, and faster charging. Upfront cost is higher, but total cost of ownership often favors LiFePO4.
- Vs. NMC/LCO lithium: LiFePO4 is safer and more thermally stable, generally longer-lived, but has slightly lower energy density. For stationary and safety-sensitive applications (marine, caravan, solar), LiFePO4 is often preferable.
- Vs. AGM/Gel: LiFePO4 offers better lifecycle and efficiency and does not need topping charges or maintenance.
We recommend LiFePO4 for applications prioritizing safety, long life, and frequent cycling.
Common pitfalls and how we avoid them
When building packs we watch for common mistakes:
- Using a charger not designed for LiFePO4 chemistry — use a proper LiFePO4 charger profile
- Skipping a BMS or using an undersized BMS — always include a BMS with appropriate ratings
- Poor wiring and insufficient fusing — use cables and fuses rated above expected continuous currents
- Not balancing cells or mixing cells from different batches — match cells and balance thoroughly before final assembly
We follow strict build checklists and test each string before final installation to prevent surprises.
Pros and cons
We find balanced assessments useful when deciding whether to buy.
Pros
- High capacity: 340Ah per cell gives us significant energy in a compact modular form.
- Long cycle life: claimed >10,000 cycles, which implies excellent longevity with the right usage.
- Voltage stability: 3.2V nominal per cell matches standard LiFePO4 design and suits series configurations for 12V/24V/48V systems.
- Safety features: listed overcharge/overdischarge/short-circuit protections increase safety.
- Fast charging support: reduces downtime if the manufacturer’s max charge current is confirmed and respected.
Cons
- Upfront cost: high-capacity LiFePO4 cells are expensive compared with lead-acid options.
- Weight and space: large-capacity prismatic cells or large-format cells can be heavy and need secure mounting.
- Need for proper BMS and system design: DIY installations must include a quality BMS and appropriate charging hardware.
- Manufacturer transparency: we recommend confirming full specs (max charge/discharge currents, dimensions, weight) before purchase.
Practical maintenance and storage
We prefer practical maintenance to maximize life:
- Storage state of charge: store cells around 40%–60% SOC for long-term storage; avoid fully charged long-term storage unless required.
- Temperature: store and operate within manufacturer-specified temperature ranges; avoid charging below 0°C unless cells/BMS support it.
- Periodic checks: inspect terminals for corrosion, verify BMS logs, and check for unusual voltage drift.
- Rebalancing: if using passive balancing only, consider occasionally balancing cells at full charge to keep groups in line.
Environmental and transport considerations
We treat batteries with care for transport and disposal. LiFePO4 is less hazardous than some chemistries, but shipping regulations may apply for cells and packs.
- Follow carrier and local regulations for shipping large-format battery cells.
- Dispose or recycle cells through proper battery recycling channels at end of life.
Buying checklist: what we confirm before purchase
We always verify the following before placing an order:
- Exact cell dimensions and weight (for mounting planning)
- Manufacturer-specified maximum continuous and peak discharge currents
- Maximum recommended charging current and recommended charge voltage
- Manufacturer warranty and support contacts
- Whether protective features are built into each cell or rely on an external BMS
- Whether the pack is sold as matched cells or random cells from inventory
Troubleshooting and diagnostics
We like to plan for problems before they happen. Common issues and our approach:
- Symptom: pack imbalance after several cycles — Action: run a full charge with a balancing BMS and check for a weak cell; test cells individually if imbalance persists.
- Symptom: excessive heat during charge — Action: reduce charge current, verify ambient temperature, check for good wiring and tight connections; consider thermal management improvements.
- Symptom: sudden voltage drop under load — Action: check wiring, fuses and contactors; measure individual cell voltages to identify weak cells; ensure the BMS isn’t tripping on overcurrent.
Frequently Asked Questions (FAQ)
We often ask the same questions when considering large LiFePO4 cells. Below are answers based on best practices.
Q: Can we use these cells individually or must we use a BMS? A: You can use a single cell for low-voltage projects, but any multi-cell system requires a BMS for safety and longevity. Even single-cell setups benefit from a protective circuit.
Q: How many of these cells do we need for a 48V system? A: For a nominal 48V system, we typically use 16 cells in series (16S × 3.2V = 51.2V nominal).
Q: What charger should we use? A: Use an LiFePO4-compatible charger programmed for the pack voltage (e.g., 14.4V for 4S, 28.8V for 8S, 57.6V for 16S) and a current appropriate for cell specs and BMS limits.
Q: What is a safe daily depth-of-discharge (DoD) for long life? A: Keeping DoD to 50% or less will dramatically increase cycle life, but LiFePO4 tolerates deeper DoD better than lead-acid.
Final recommendation
Overall, we think the “3.2V 340Ah LiFePO4 Cell 10000 Cycle Rechargeable Battery Suitable For DIY 12V 24V 48V Caravan Marine Solar Energy System(3.2V 340Ah 16pcs)” is a compelling option for DIYers and system builders who need large capacity and long life. We recommend the product for caravan, marine, and solar energy applications provided we confirm the exact electrical limits (charge/discharge currents), physical dimensions, and warranty terms with the seller.
We advise building your pack with:
- A certified LiFePO4 charger
- A properly rated BMS for the series and current requirements
- Appropriate fusing, wiring, and mounting hardware
- Careful cell matching and balancing
If we follow those practices, these cells can offer robust, long-lasting, and relatively safe energy storage for off-grid and mobile applications.
