Are we looking for a lightweight, long-lasting battery solution for our RV, boat, or off-grid solar system?

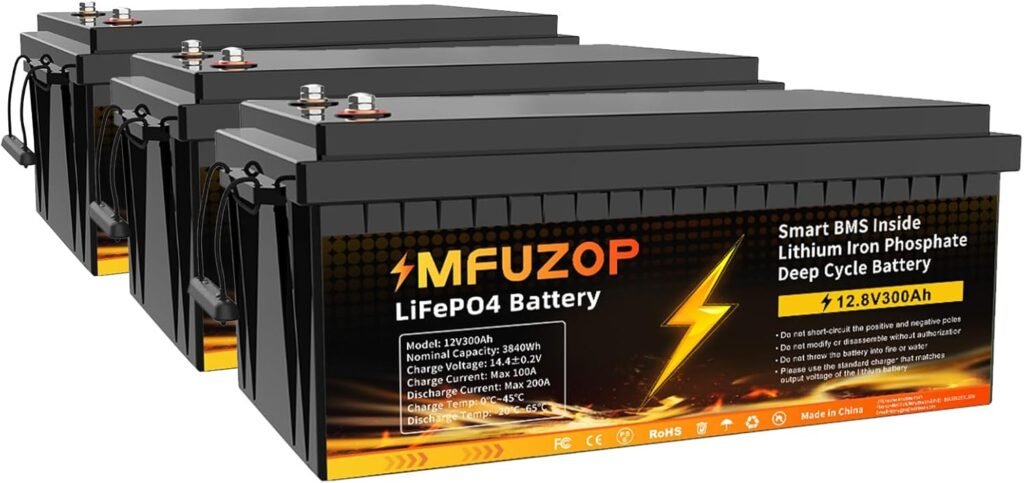

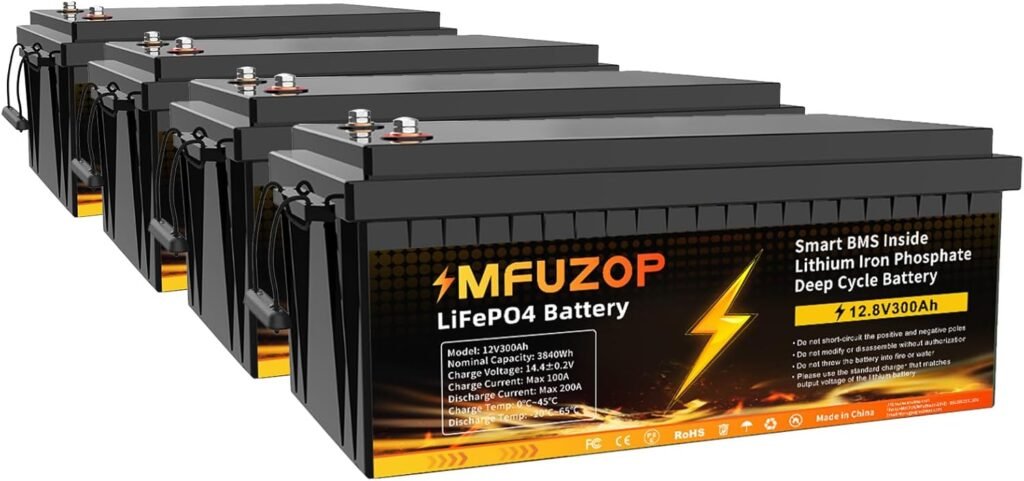

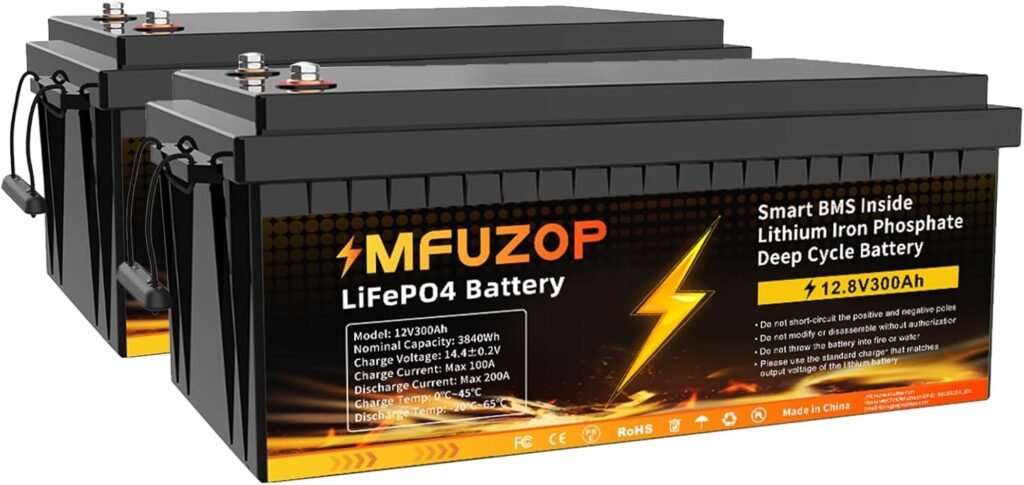

Overview of the 4PCS 12V 300Ah LiFePO4 Lithium Battery with 200A BMS, 3840Wh Lithium Iron Phosphate Battery, up to 15000+ Cycles, Support in Series/Parallel, for RVs, Boats, Trolling Motor, Solar Panel System
We will summarize what this product is and why it stands out in its category. The MFUZOP 12.8V 300Ah LiFePO4 battery is presented as a high-capacity, portable lithium iron phosphate (LiFePO4) battery designed for mobile and stationary energy storage needs.
We find that the manufacturer combines a high-capacity 300Ah cell pack with an integrated 200A Battery Management System (BMS), claiming 3.84 kWh of usable energy and a very long cycle life. These design choices target users who need reliable, repeatable discharge and recharging for vehicles, boats, and off-grid systems.
Key Specifications
We will list the most important specs in a clear table so we can reference them quickly when assessing fit for our projects. Below is a concise breakdown of the product specifications as described by the manufacturer.
| Specification | Details |
|---|---|
| Product Name | 4PCS 12V 300Ah LiFePO4 Lithium Battery with 200A BMS, 3840Wh Lithium Iron Phosphate Battery, up to 15000+ Cycles, Support in Series/Parallel, for RVs, Boats, Trolling Motor, Solar Panel System |
| Nominal Voltage | 12.8 V |
| Capacity | 300 Ah |
| Energy | 3840 Wh (3.84 kWh) |
| Chemistry | LiFePO4 (Lithium Iron Phosphate) |
| Weight | 61.07 lb (approx. 27.7 kg) |
| BMS Rating | 200 A with protections and automatic balancing |
| Cycle Life (manufacturer) | 15,000+ cycles (manufacturer claim) |
| Depth of Discharge | 100% (manufacturer states support for full DoD) |
| Expandability | Up to 4 in series and 4 in parallel (up to 16 total in 4P4S, yielding 51.2V 1200Ah = 61.44 kWh) |
| Installation | Any orientation; leak-free |
| Typical Applications | RVs, caravans, marine, trolling motors, solar systems, backup power, carts, scooters |
| Warranty / Service | Local UK dispatch, 5-year after-sales guarantee (as advertised) |
We will rely on this table for comparisons and planning because it condenses the main attributes into one place for quick decisions.
Design and Build Quality
We will assess the physical construction, materials, and user-focused design choices. The battery’s LiFePO4 cells are generally known for mechanical stability and fewer thermal runaway risks relative to some other lithium chemistries.
We find that the pack appears purpose-built for mobile and outdoor use: a compact form factor, relatively low weight for its capacity, and an enclosure that supports multiple mounting orientations. The packaging and terminal provisions matter for real installations, and this pack aims to make those tasks simpler.
Weight and Portability
We will emphasize the portability benefits and how they translate to real-world handling. At 61.07 pounds, this 12.8V 300Ah LiFePO4 pack is roughly one-third the weight of a comparable lead-acid battery with the same usable energy.
We appreciate that this makes lifting, installing, and re-locating the battery significantly easier, especially for RVers, boat owners, and technicians working in tight spaces.
Installation Orientation and Outdoor Use
We will explain why unrestricted installation direction is useful and what “no risk of leakage” means for users. Because LiFePO4 cells are solid-state in an enclosed pack, the battery can be mounted in various orientations without the flooding or acid leakage concerns associated with lead-acid batteries.
We must still account for environmental protection: while the pack is safer against leakage, it should be mounted in a dry, ventilated area away from extreme temperature sources and direct weather exposure unless the installation area is properly sheltered.
Performance and Capacity
We will evaluate how the battery performs in daily use and what the energy capacity means in realistic applications. The 3,840 Wh capacity gives us a solid baseline for run-time calculations for different loads.
We will also consider charge/discharge capabilities and how the battery behaves under heavy loads thanks to its BMS and internal cell design.
Energy Density and Runtime Estimation
We will illustrate how long the battery can run common devices to help plan system sizing. With 3.84 kWh available, common examples include:
- A 1,000 W inverter powering an appliance could run for roughly 3.5–4 hours at typical conversion losses.
- A 100 W device (LED lights, small electronics) could run for ~38 hours.
- A 300 W refrigerator with compressor cycling could run for 8–12 hours depending on efficiency and duty cycle.
We will note that inverter efficiency, temperature, and load profile alter these estimates, and that the pack’s claimed 100% DoD means we can use the full capacity if the inverter and loads are configured to the battery’s voltage range.
Charge and Discharge Characteristics
We will cover charging rates, discharge capability, and the BMS’s role in managing currents. The 200A BMS suggests the battery can safely manage substantial continuous and peak discharge currents; for a 12.8V pack at 300Ah, a 200A max continuous rating is around 0.67C, which is suitable for many inverters and motors.
We will point out that charging speed will depend on external chargers or MPPT charge controllers; the pack supports fast charge/discharge in principle, but it’s wise to match charger settings to recommended LiFePO4 charge voltages and respect the BMS current limits.
Cycle Life and Longevity
We will examine the manufacturer’s 15,000+ cycle claim and contextualize it against typical industry figures. The stated 15,000+ cycles is an ambitious manufacturer claim — LiFePO4 chemistry does offer excellent long-term cycle stability, but many commercial packs are commonly rated between several thousand and up to 10,000 cycles under certain conditions.
We will emphasize that real-world cycle life depends on depth of discharge, charge/discharge rates, temperature, and calendar aging. Under ideal, conservative conditions, the pack should offer many years of service—potentially a decade or more—especially relative to lead-acid alternatives.
Battery Management System (BMS)
We will explain why the integrated BMS is a crucial part of modern lithium battery packs. The BMS protects the pack against common electrical and thermal issues and helps maximize cycle life with balancing.
We will describe how the 200A BMS included with this product manages both safety and cell balance for system reliability.
Safety Protections
We will list the protections typically provided and how they protect our system. The advertised protections include high temperature cutoff, overvoltage protection, overload protection, overcharge protection, overdischarge protection, overcurrent protection, and short circuit protection.
We will add that these protections reduce the risk of damage to the pack and attached equipment; they also manage graceful shutdown or isolation when faults occur.
Balancing and Series/Parallel Considerations
We will explain automatic balancing and why voltage matching matters for multi-battery configurations. The BMS’s automatic balancing keeps individual cell voltages aligned over time to prevent weak cells from limiting pack performance.
We will stress that when connecting multiple batteries in series or parallel, it is important to equalize voltages before connecting (the manufacturer recommends a voltage difference within 0.1V) and to charge each battery fully before combining them to minimize initial imbalance.
Series and Parallel Expansion
We will walk through expansion options and how to scale capacity and voltage for larger systems. The pack supports up to 4 in series and 4 in parallel, and up to 16 units in a combined 4P4S configuration for maximum power.
We will confirm that the advertised maximum configuration (4 parallel strings of 4 series cells each) yields a system voltage of 51.2V and capacity of 1200Ah, providing up to 61.44 kWh of energy in that top configuration.
| Configuration | Voltage | Capacity (Ah) | Total Energy (Wh) |
|---|---|---|---|
| Single unit | 12.8 V | 300 Ah | 3,840 Wh |
| 2 in parallel (2P) | 12.8 V | 600 Ah | 7,680 Wh |
| 4 in parallel (4P) | 12.8 V | 1,200 Ah | 15,360 Wh |
| 4 in series (4S) | 51.2 V | 300 Ah | 15,360 Wh |
| 4P4S (max advertised) | 51.2 V | 1,200 Ah | 61,440 Wh |
We will note that practical wiring, fusing, and balancing will be essential to get safe, reliable operation out of multi-unit systems.
Practical Steps to Connect Multiple Units
We will outline safe procedures to combine multiple batteries without creating imbalance or hazard. Before connecting, we will:
- Fully charge each battery individually so voltages are matched within 0.1V per the manufacturer.
- Verify each pack’s voltage and BMS status.
- Use appropriately rated busbars, cables, and fuses sized for the expected continuous and fault currents.
- Connect parallel strings with short, equal-length cables to minimize resistance differences.
- For series connections, ensure secure, torqued terminals and consider a master fuse on the positive output of the complete string.
- After connection, monitor voltages and temperatures during the first charge/discharge cycles to confirm stable operation.
We will emphasize verifying that the BMS supports the chosen multi-unit topology and that any system controller, inverter, or charger is compatible with the final system voltage.
Use Cases and Applications
We will present real-world scenarios where this battery works well and how it changes planning for energy systems. The compact form factor and robust BMS make this battery well-suited for both mobile power and stationary backup.
We will evaluate three common application categories: RVs and caravans, marine/trolling motors, and solar/off-grid home systems.
For RVs and Caravans
We will discuss why this pack is attractive for mobile living. The high energy density, low weight relative to lead-acid, and 100% DoD capability mean more usable power for appliances, lights, and heating/cooling without adding heavy weight or frequent charging.
We will note that the battery’s ability to handle deep discharges and repeated cycles significantly reduces maintenance and replacement frequency compared with flooded or AGM lead-acid systems.
For Boats and Trolling Motors
We will explain marine suitability and what to check before installation. LiFePO4’s stability and small weight make it a strong choice for boats and trolling motors where weight and space matter; additionally, the BMS protects against sudden faults that could compromise safety at sea.
We will remind that marine installations should consider vibration isolation, secure mounting, and corrosion-resistant terminals, and we will recommend fuse locations near battery positive terminals.
For Solar and Home Backup
We will show how the battery fits into off-grid solar or backup power setups. The 3.84 kWh per unit can form the building block of larger battery banks when combined; it pairs well with MPPT solar controllers and inverters designed for 12.8V or scaled to higher voltages via series connections.
We will advise that for whole-home backup, multiple units and an inverter capable of desired output power will be required; this battery shines as a modular, scalable component in that architecture.
Charging, Inverter, and Wiring Recommendations
We will provide guidance on matching chargers and inverters to the pack to ensure longevity and performance. Proper charging voltage, current limits, and thermal considerations all affect cycle life.
We will also advise on wiring practices, connectors, and safety fusing.
Recommended Charge Voltage, Max Charge Rate, and C-rates
We will recommend commonly accepted LiFePO4 charge parameters and relate them to this pack. Typical charge voltage for a 12.8V LiFePO4 pack is around 14.4V to 14.6V (bulk), with a float or maintenance voltage usually set lower or disabled depending on charger and system design.
We will recommend staying within a reasonable charge current often set to around 0.2C to 0.5C for daily charging—so for a 300Ah pack, that’s 60A to 150A as a practical guideline—while respecting the BMS’s maximum ratings. Charging at higher currents may be supported by the pack and BMS but could affect heat and longevity.
Cable Size, Fusing, and Connectors
We will provide practical sizing tips for safe wiring. For continuous 200A capability, we will recommend cables rated for that current plus margin; examples include 2/0 AWG (or equivalent metric cross-section) for short runs in many cases, but exact gauge depends on run length and installation environment.
We will stress that each battery positive should have an appropriately rated fuse or breaker close to the terminal to protect against short circuit conditions, and that parallel and series connections should use matched cable lengths to minimize imbalance.
Installation Tips and Best Practices
We will outline concrete habits that lead to a reliable battery system over years of service. Proper planning and execution during installation reduce maintenance and prevent avoidable issues.
We will suggest:
- Mounting the battery in a ventilated, dry compartment away from heat sources.
- Using insulated terminal covers to prevent accidental shorts.
- Tightening terminals to manufacturer torque specs and checking periodically.
- Keeping the battery accessible for service and periodic voltage checks.
- Logging charge/discharge cycles and environmental temperatures if possible to monitor longevity.
We will also recommend making the first several cycles under observation to verify BMS behavior and cell balancing.
Performance Comparison: LiFePO4 vs Lead-Acid
We will compare the main differences so we can decide when LiFePO4 is the better option. The most obvious advantages are weight, cycle life, usable capacity, and maintenance.
| Feature | 12.8V 300Ah LiFePO4 (this product) | Typical Lead-Acid (comparable energy) |
|---|---|---|
| Usable DoD | 100% (manufacturer) | 30–50% recommended |
| Cycle Life | Manufacturer claims 15,000+ cycles | Usually 400–1,200 cycles depending on type |
| Weight | ~61 lb | ~3x heavier for same energy |
| Maintenance | Minimal | Requires periodic maintenance for flooded cells |
| Safety | Lower thermal runaway risk vs other lithium chemistries | Flooding and acid handling risks |
| Cost (initial) | Higher upfront | Lower upfront, higher lifecycle cost |
| Efficiency | Higher round-trip efficiency | Lower efficiency with higher charge losses |
We will emphasize that while LiFePO4 has a higher upfront cost, the total cost of ownership often favors LiFePO4 in applications with frequent cycling and where weight is a concern.
Pros and Cons
We will summarize the major advantages and potential limitations so we can weigh trade-offs clearly.
Pros:
- High usable capacity (3.84 kWh) and 100% depth of discharge capability.
- Lightweight and portable compared to lead-acid batteries of similar capacity.
- Integrated 200A BMS with multiple protections and automatic balancing.
- Supports series and parallel expansion for flexible system design.
- Long marketed cycle life with potential for many years of service.
- Suitable for RVs, marine, solar, and backup applications.
Cons:
- Manufacturer’s 15,000+ cycle claim is optimistic and real-world performance will vary.
- Higher initial cost compared to lead-acid alternatives.
- Proper installation for series/parallel requires careful attention to voltage matching and wiring.
- Charging equipment and inverters must be configured for LiFePO4 chemistry to realize full benefits.
We will stress that most cons are manageable with careful planning and correct system design.
Warranty, Shipping, and Support
We will detail what the manufacturer advertises and how that affects our purchasing confidence. The seller promises local UK dispatch and a 5-year after-sales warranty, along with technical support and 24-hour response.
We will underline that local warehouse shipping reduces lead times and that an accessible support channel is valuable when dealing with multi-unit installations or warranty claims. We will always recommend documenting serial numbers, purchase receipts, and initial voltages to streamline potential claims.
Frequently Asked Questions (FAQ)
We will answer common questions we expect people to have about the battery and how to use it.
Q: Can we connect these batteries in series to make a 48V bank? A: Yes, the pack supports up to 4 in series to reach 51.2V (commonly used as 48V nominal systems), provided voltages are closely matched prior to connection and proper safety fusing and wiring practices are applied.
Q: How many of these units are needed for a full-time RV electrical setup? A: That depends on our daily energy consumption. For example, if we typically use 6–8 kWh per day, two to three units (7.68–11.52 kWh) would provide a comfortable buffer depending on solar or shore power recharge availability.
Q: Is the 15,000+ cycle claim realistic? A: The claim is manufacturer-provided and should be seen as an optimistic estimate under ideal conditions. Real-world cycle life will vary with depth of discharge, charge rates, temperature, and usage patterns. Many LiFePO4 products offer several thousand cycles in typical use.
Q: What charging voltage should our MPPT controller use? A: For a 12.8V LiFePO4 pack, a bulk charge around 14.4–14.6V is common, but consult the battery’s datasheet and our charger manual to confirm exact setpoints for bulk and float (if used). Many LiFePO4 systems disable float charging or set a lower maintenance voltage.
Q: Do we need a special inverter? A: We will need an inverter compatible with the battery’s nominal voltage (12.8V for single unit, 51.2V for 4S configurations). The inverter should also be rated for the continuous and surge loads we expect and be used with proper DC cabling and fusing.
Q: Can we store the battery long-term without damage? A: Storing at a partial state of charge (e.g., 40–60%) in a cool environment is best for long-term storage. Avoid storing fully charged at high temperatures for prolonged periods to minimize calendar aging.
Final Thoughts
We will summarize how this battery fits into the market and whether we would recommend it for typical buyers. The MFUZOP 12.8V 300Ah LiFePO4 battery offers a compelling combination of capacity, portability, and integrated protection that makes it a strong candidate for RVs, marine use, and modular solar systems.
We will recommend it for those who prioritize high cycle life, lower weight, and scalable system design, provided we exercise best practices in series/parallel connections and match chargers and inverters to LiFePO4 specifications. Overall, we see this battery as a practical, modular building block for modern energy storage needs.
