Have you ever wished you could see exactly what your battery is doing at a glance while you’re on the road, on the water, or powering your campsite?
Overview of the BINTA 3.5 Inch 500A Battery Monitor Shunt 8-100V for Lifepo4 Lithium Lithium-ion Batteries, Backlight Color Screen Waterproof Battery Monitor with Sliding Cover for Car RV Golf Cart Solar Panel Boat
You’re looking at a compact but powerful battery monitor designed to give you clear, actionable information about your battery system. The BINTA unit combines a 3.5-inch color backlit display with a 500A shunt and a wide 8–100V measurement range, so you can use it with LiFePO4 and many lithium-ion battery setups.
What this product aims to do for you
The monitor puts voltage, current, power, state of charge, and amp-hour data in one readable place so you can manage your battery usage and protect your battery bank. Because it includes a dedicated external shunt, you get continuous current measurement without disrupting your system wiring.
Key Features and What They Mean for You
You’ll want clarity on what each feature translates to in real-world use. Below are the main highlights and why they matter.

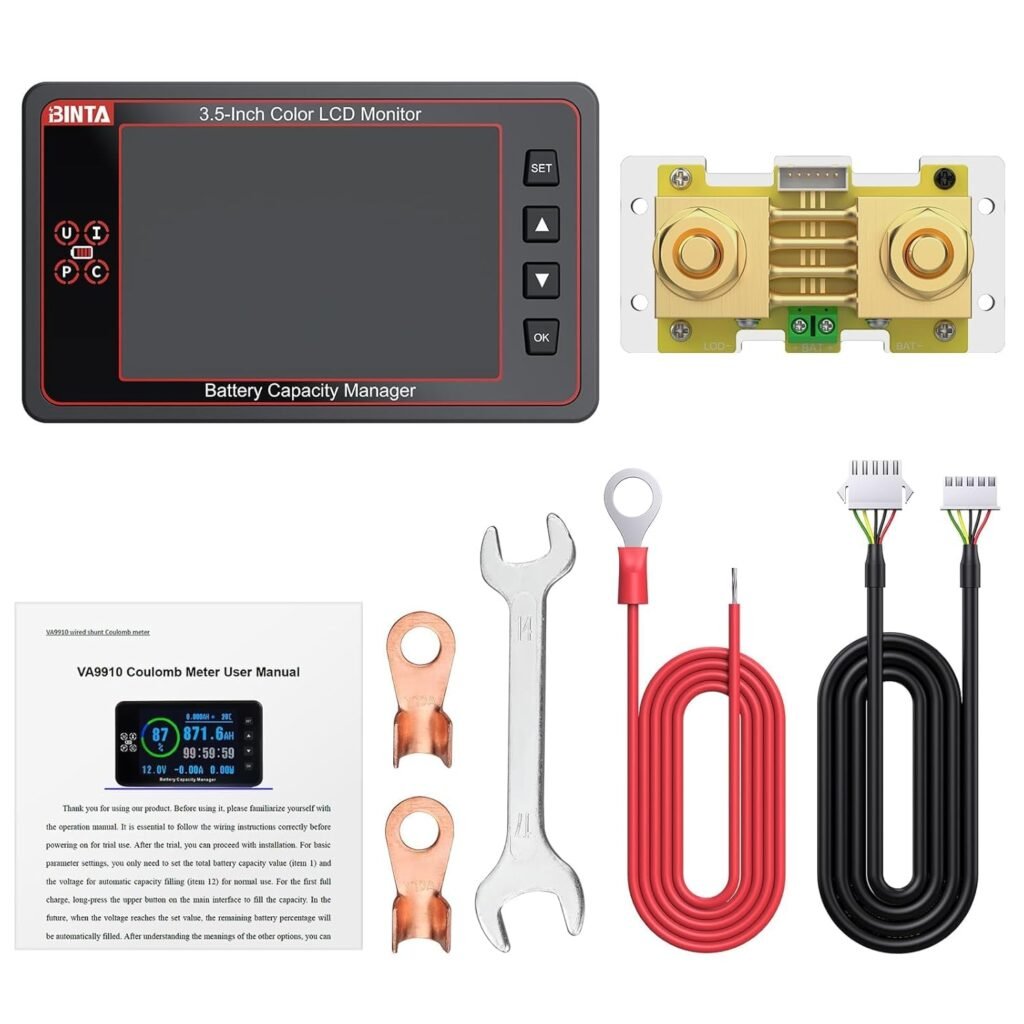

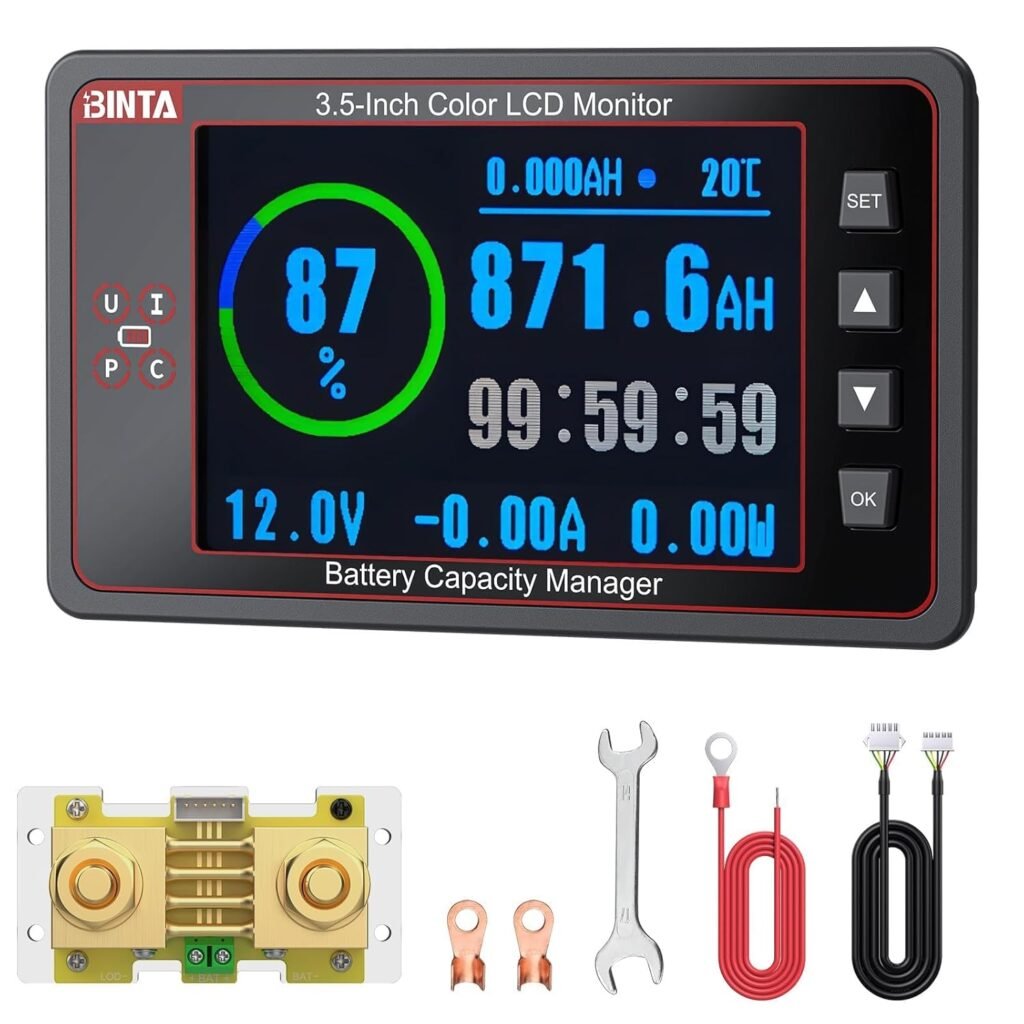

3.5-inch color ultra large high-definition screen
The 3.5-inch LCD delivers a bright, clear readout with color backlighting to make data visible in day and night conditions. You’ll find it easier to scan multiple parameters at once compared with smaller monochrome displays.
500A shunt for accurate current measurement
The included 500A shunt gives you a dedicated path to measure current flow without burdening the monitor itself. This means more accurate amp-hour counting and current sensing for larger systems like RVs, boats, and solar banks.
Wide voltage compatibility: 8–100V
You can connect this monitor to a broad range of battery systems from single-bank 12V setups to multi-battery configurations that reach higher voltages. This flexibility makes the monitor useful across cars, RVs, golf carts, and off-grid solar installations.
Backlight color screen and sliding cover
You get a readable backlit color screen plus a sliding cover to protect the display from dust and moisture when not in use. The cover helps maintain visibility and extends the life of the display in outdoor and marine environments.
Waterproof design
The monitor housing and shunt connections are designed with water resistance in mind, so the unit stands up better to the wet and humid environments common in boating and RVing. You’ll still want to install it in a reasonably sheltered location and avoid complete immersion.
Specifications at a Glance
Below is a compact table to help you quickly compare the essential numbers and features.
| Feature | Specification |
|---|---|
| Display | 3.5-inch color backlit LCD |
| Current Shunt | 500A (external shunt included) |
| Voltage Range | 8–100V |
| Battery Types Supported | LiFePO4, Lithium, Lithium-ion (and other compatible lead/AGM systems depending on settings) |
| Waterproof | Water-resistant (housing and connectors) |
| Protective Cover | Sliding cover for display |
| Main Uses | Car, RV, golf cart, solar panel systems, boat |
| Setup | Simple initial setup (user-friendly interface) |
Installation: What You’ll Need and How to Prepare
You’ll want to gather a few tools and follow a safe sequence to wire the monitor and shunt properly. Preparation makes the process faster and reduces mistakes.
Tools and materials required
You should have a set of screwdrivers, a small wrench or socket set for shunt terminals, appropriate gauge wiring (typically heavy gauge for the shunt connection), ring terminals, and some insulating tape or heat shrink. You’ll also need a voltmeter for verification and possibly zip ties or clamps to secure wiring.
Choosing the mount location
Pick a location on your dash, control panel, or enclosure where you can easily read the screen and where the shunt can be mounted near the negative battery terminal. You’ll want a spot that’s sheltered from direct spray but still ventilated to avoid heat buildup.
Wiring order and safety precautions
Always disconnect the battery before installing the shunt and monitor to avoid short circuits. Mount the shunt on the negative battery return path, connect the battery negative to the shunt, and then connect the system load and charger return to the other shunt terminal. Finally, run the small sensing wires from the shunt to the monitor, and connect the monitor’s voltage sense to the battery positive and negative sense points as instructed.
Setup and Calibration: Making the Monitor Work for You
You’ll likely appreciate how straightforward the initial configuration is, but taking a few extra minutes to calibrate will improve accuracy over time.
Initial setup walkthrough
The monitor’s menu-driven interface walks you through selecting battery type, nominal capacity, voltage thresholds, and units (amps/volts/Ah). You’ll be able to set up your battery chemistry to LiFePO4 or other lithium types and input your battery bank capacity so the state-of-charge (SoC) display is meaningful.
Calibrating the shunt and capacity
To calibrate, you typically set the shunt rating (500A) and enter the battery capacity in amp-hours. For best results, perform a controlled charge/discharge cycle: fully charge the battery, set the monitor’s full charge reference, run a known load while the monitor accumulates amp-hours, and then recharge to confirm and adjust if necessary. Proper calibration ensures the SoC and remaining time estimates are more accurate.
Display and Interface: What You’ll See
The screen layout and ease of navigation save you time and reduce guesswork when monitoring your system on the move.
Readability and color backlight
The large color backlit display helps you see multiple parameters simultaneously, with the color enhancing contrast for critical alerts. You’ll have an easier time reading data while driving, boating, or working in dimly lit compartments.
Menu layout and buttons
You’ll interact with the monitor using tactile buttons that step through menu items, settings, and historical displays. The interface is designed to be user-friendly, so you won’t need advanced technical knowledge to access core functions.
Data and Metrics: What You Can Monitor
This unit tracks the core metrics you’ll rely on to manage battery health and available energy.
Voltage and current
You’ll see real-time battery voltage and current flow, which helps you identify charging or discharging states and detect abnormal draws. Watching current alongside voltage is critical for diagnosing parasitic loads or confirming your charging system’s performance.
State of Charge (SoC) and amp-hours
The monitor accumulates amp-hours through the shunt to present a running SoC percentage and remaining capacity estimate. With proper calibration, you’ll get reliable SoC readings that let you plan usage and charging cycles.
Power and historical data
Power (watts) and time-based summaries help you identify trends and average loads over time. This information is especially useful in solar setups to understand generation versus consumption patterns.
Use Cases: Where This Monitor Shines
You’ll find the monitor useful across many mobile and stationary applications. Here are typical scenarios where it adds real value.
Car and RV systems
In your car or RV, the monitor helps you keep track of house battery health, prevent inadvertent deep discharge, and monitor alternator charging performance. You’ll appreciate getting clear warnings before your starter battery or house bank reaches critically low levels.
Boats and marine systems
Onboard boats where power management is critical, the waterproof design and sliding cover help protect the unit from splashes. You’ll be able to monitor battery bank consumption during trips and manage onboard charging from alternators, shore power, or generators.
Golf carts and electric vehicles
For golf carts and utility vehicles that use LiFePO4 or lithium packs, the monitor provides accurate amp-hour tracking so you can know when to recharge and avoid battery over-discharge. You’ll also get insight into motor current spikes that could indicate problems.
Solar and off-grid installations
In solar systems, this monitor helps you manage battery cycles, balance loads, and verify that your solar array is effectively recharging the bank. You’ll gain useful data for sizing future upgrades or adding load management.
Pros and Cons: Balanced View
You’ll want a fair assessment before you buy, so here’s a look at the main strengths and limitations you may encounter.
Pros
- The large 3.5-inch color screen improves readability and multi-parameter display. You’ll be able to see voltage, current, SoC, and more at a glance.
- A 500A shunt allows monitoring for high-current systems without overstressing the device itself. This makes it suited to RVs, boats, and larger battery banks.
- Broad voltage range (8–100V) gives you flexibility across many battery architectures. You won’t be limited to just 12V systems.
- Sliding cover and water-resistant construction improve durability in tougher environments. You’ll get more reliable use outdoors or near saltwater.
Cons
- The unit requires a solid understanding of shunt placement and wiring to achieve best accuracy. If you’re not comfortable with battery systems, you may want professional installation.
- While water-resistant, the monitor should not be submerged; installation location still matters to avoid damage. You’ll need to avoid areas where it could be directly hit by heavy spray.
- Some users may expect integrated Bluetooth or remote connectivity; this model focuses on local display and measurement. If you want wireless logging, you’ll need separate gear.
Performance and Reliability: What to Expect Long Term
You’ll likely depend on this monitor for months and years, so here’s how reliability and performance typically hold up.
Accuracy and stability
With correct shunt wiring and calibration, the monitor provides stable, repeatable readings for voltage, current, and amp-hours. You’ll see good consistency across cycles, which helps you manage battery lifespan.
Durability in outdoor environments
The sliding cover and water-resistant housing protect the important parts of the monitor from dust and spray. You’ll still want to mount it in a semi-protected area to reduce UV exposure and avoid strong saltwater spray.
Troubleshooting and Common Questions
If you encounter problems, there are straightforward steps you can take to diagnose and remedy most issues.
My display is blank — what should you check?
First, ensure the monitor’s small power lead is connected and that the battery main switch or fuse is closed. Next, confirm the shunt wiring and polarity; incorrect wiring or a blown fuse can prevent the display from powering up.
Readings seem off — how do you fix them?
Check shunt connections for tightness and correct order: battery negative to shunt, shunt to system negative. Re-run the calibration procedure, confirm battery capacity input, and verify that voltage sense wires are on the correct battery terminals.
Why does the SoC jump or drift?
SoC drift usually means the monitor needs recalibration after you change batteries or adjust charging profiles. You’ll also see jumps if large instantaneous currents occur (motors or inrush loads), so consider averaging or filter settings if available.
Comparison with Alternatives
You’ll want to know how this unit stacks up against other battery monitors on the market.
Simpler monitors
Basic monitors often provide voltage and current but lack a large color screen, comprehensive SoC, or a heavy-duty shunt. You’ll get less visual clarity and fewer analytics compared to the BINTA unit.
Advanced smart monitors with Bluetooth
Units with integrated wireless connectivity can log remotely and push notifications, which is convenient for complex setups. The tradeoff is that those units can be more expensive, and you’ll depend on additional software or a phone to view data.
Practical Tips to Get the Most from Your Monitor
You’ll get better, longer-lasting performance if you follow a few practical rules and habits.
Keep wiring short and secure
Run the shunt connections as short and direct as possible to minimize resistance and noise. You’ll also want to secure wiring to avoid chaffing and corrosion.
Periodic recalibration and full cycles
Do a full-charge calibration after the first few cycles and re-calibrate after any major change in your battery bank or charging system. You’ll maintain more accurate SoC and amp-hour tracking this way.
Use protective measures in marine environments
Apply dielectric grease to exposed terminals and ensure mounting hardware is corrosion-resistant. You’ll increase longevity, especially in saltwater conditions.
Installation Example: Step-by-Step for a Typical RV House Battery
You’ll find this walkthrough helpful if you plan to install the monitor in your RV house bank. It covers the basics without assuming advanced electrical expertise.
- Disconnect main battery negative terminal and isolate all loads. You should always start installations with the system powered down for safety.
- Choose a secure mounting location for the shunt near the battery negative post and install the shunt to the chassis or panel using the provided hardware. Make sure the shunt is mounted to a solid surface that won’t flex under load.
- Connect the battery negative cable to the shunt’s battery-side terminal, and connect the system negative cable (loads and charger) to the shunt’s load-side terminal. Verify the order carefully to avoid measurement errors.
- Run the monitor’s small gauge sensing wires from the shunt to the monitor, and connect the monitor’s voltage sense wire to the battery positive and the negative sense to the shunt-monitor terminal (follow the manual wiring diagram for exact pinouts). You’ll want tidy, labeled connections to avoid confusion later.
- Secure all wiring, tuck cables away from moving parts, and reinstall the battery negative. Power the system and follow the monitor’s initial setup instructions to select battery chemistry and enter capacity.
- Perform a calibration cycle by fully charging, letting the monitor record 0 drift at full charge, and then observing during an expected load to ensure amp-hour accounting works as planned.
Maintenance and Care
You’ll protect your investment and maintain accuracy with a few simple habits.
Regular checks and cleaning
Inspect the shunt and terminal connections for tightness and corrosion every few months. Clean the display with a soft, damp cloth and avoid abrasive cleaners that could damage the backlight or screen surface.
Firmware and manual checks
Refer to the manual for any firmware updates or peculiar settings that may need adjusting as your system evolves. You’ll be able to get more out of the device if you follow recommended firmware or setting notes from the manufacturer.
Frequently Asked Questions
You’ll likely have a few common concerns; here’s quick guidance for the most frequent ones.
Can I use this with a 24V or 48V system?
Yes, the 8–100V measurement range covers 24V and 48V systems. You’ll need to select the appropriate settings and battery type for accurate SoC readings.
Is the sliding cover required for the monitor to be waterproof?
The cover helps protect the screen and reduce water ingress but is not the only factor in water resistance. You’ll still want to mount the unit where it won’t be constantly exposed to heavy spray.
Do you need the shunt that comes with it, or can you use an existing shunt?
Using the included shunt ensures compatibility and calibration defaults that match the monitor. If you use an existing shunt, verify its rating and adjust the monitor settings to match.
Final Thoughts and Buying Considerations
You’ll find the BINTA 3.5 Inch 500A Battery Monitor Shunt 8-100V for Lifepo4 Lithium Lithium-ion Batteries, Backlight Color Screen Waterproof Battery Monitor with Sliding Cover for Car RV Golf Cart Solar Panel Boat to be a robust and practical tool for managing battery systems. The large color screen, wide voltage range, and 500A shunt make it a versatile option for mobile and off-grid energy monitoring.
Who should consider this monitor
If you manage battery banks in RVs, boats, golf carts, or small solar systems and want a clear, local readout of voltage, current, SoC, and amp-hours, this unit is well-suited to your needs. You’ll get a durable local interface without the complexity of cloud-connected systems.
Final recommendation
You’ll appreciate the readability, flexibility, and the practical features like the sliding cover and water resistance. For users who want accurate local monitoring and simple setup, this BINTA unit offers a compelling mix of functionality and value.
If you want, I can walk you through a tailored wiring diagram for your specific setup (12V RV, 48V solar, boat, etc.), or provide a checklist for buying the correct gauge wire and fuse sizes for your installation.
