? Are we looking for a reliable, lightweight 12.8V LiFePO4 battery solution for solar, marine, RV, or trolling motor use?

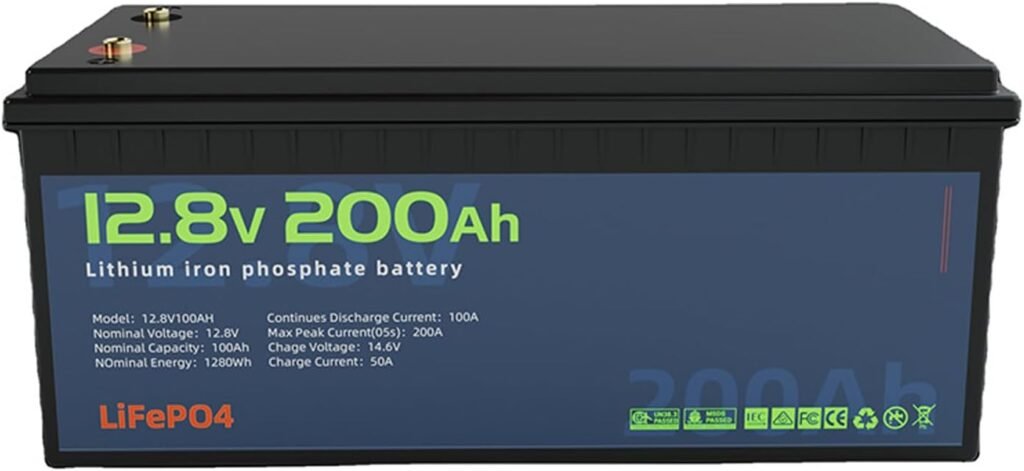

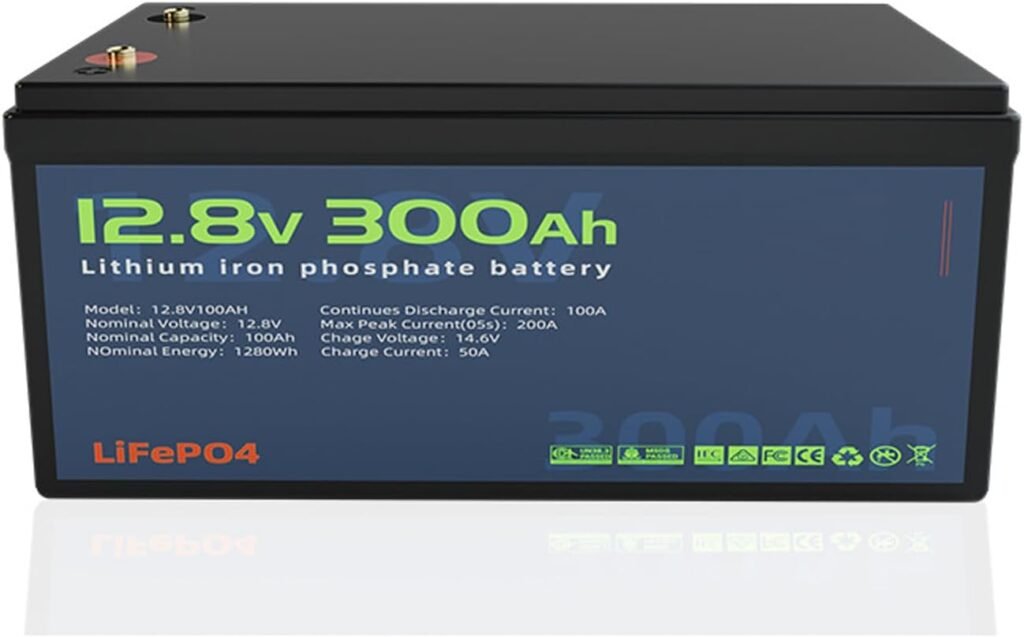

Lithium Battery 12V 50Ah 100Ah 150Ah 200Ah 300Ah LiFePO4 Batteries with BMS 12.8V Rechargeable Lithium Iron Phosphate Battery for Solar Marine Trolling Motor
We are reviewing the full product line name to make sure we cover every capacity and application covered by the manufacturer. We will refer to the product line by its full name when useful, and otherwise use “this LiFePO4 battery family” to keep sentences readable and consistent.
What this product promises
The product promises lightweight LiFePO4 chemistry, an upgraded built-in BMS, and flexible capacity options ranging from 50Ah up to 300Ah. We find these selling points attractive for anyone replacing lead-acid banks or building modular energy systems for off-grid, marine, or mobile use.
Who this is for
This battery family is aimed at homeowners designing storage for panels, boat owners needing reliable marine power, RV users who want lighter battery banks, and anglers using trolling motors. We think the range of capacities makes the lineup suitable for single-battery applications through to multi-battery systems for higher power needs.
Key Specifications
We will summarize the core technical attributes so that readers have a quick reference for decision-making. The key specs combine manufacturer-provided details and typical LiFePO4 performance characteristics that apply to this family.
Quick spec overview
Nominal voltage: 12.8V, chemistry: LiFePO4 (Lithium Iron Phosphate), built-in upgraded BMS for multiple protections, and capacities available: 50Ah, 100Ah, 150Ah, 200Ah, and 300Ah. We should note typical LiFePO4 charge and discharge practices alongside the product specifications so that readers can set expectations for performance and compatibility.
Table: Capacity, Estimated Weight, Typical Use
We are including a simple table to break down the capacity options, approximate weights (based on the product’s stated 8kg–35kg range), and recommended typical uses. These weights are representative estimates drawn from the product weight range and common LiFePO4 designs, and they help when planning mounts and transport.
| Capacity | Approx. Weight | Best-suited Uses |
|---|---|---|
| 50Ah | 8 kg | Small solar systems, trolling motors, portable power packs |
| 100Ah | 12–13 kg | RV house circuits, small boat power, off-grid lights and devices |
| 150Ah | 18–20 kg | Larger RV systems, marine house banks, workshop power tools |
| 200Ah | 25 kg | Whole-van systems, medium off-grid cabins, tandem trolling motors |
| 300Ah | 35 kg | Large off-grid home storage, heavy marine banks, extended RV autonomy |
We think this table helps to visualize how each capacity scales in weight and the kind of system it supports. We recommend confirming exact weights for the specific SKU before planning mounts or freight.
Design and Build Quality
We examined the design cues and build details to judge how robust and serviceable these batteries appear. We look for strong terminal design, durable housing, and clean BMS integration.
Exterior and terminals
The battery housing follows common LiFePO4 packaging: rectangular, compact, and with terminals and mounting points positioned for straightforward installation. We prefer terminals that are heavy-duty and clearly labeled positive and negative, because this reduces mistakes and speeds installation.

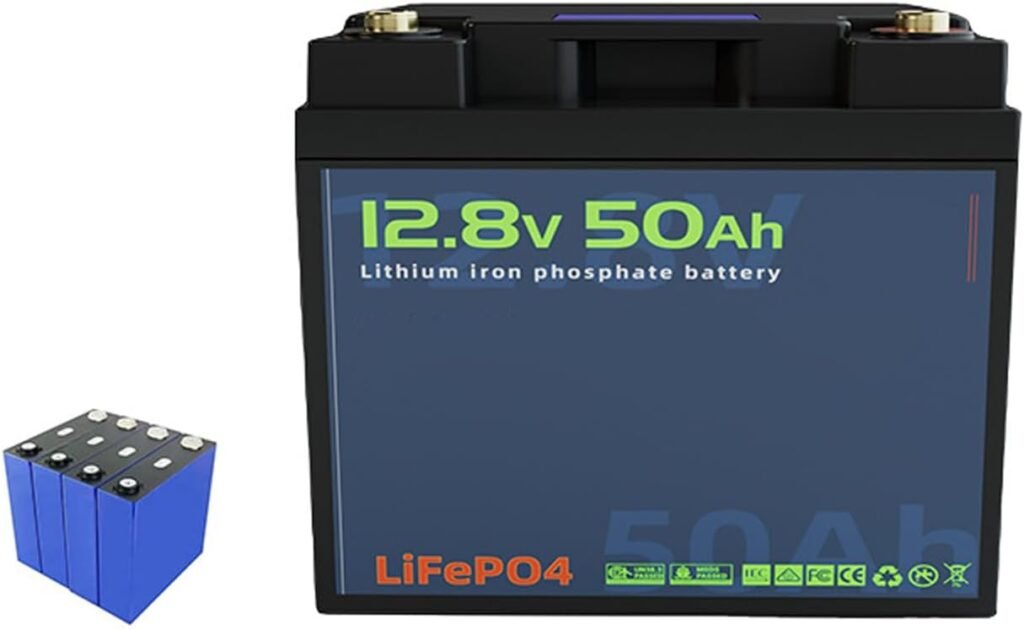

Cell quality and assembly
This product uses Automotive Grade A lithium iron phosphate cells, which typically means higher energy density and consistent performance under load. We appreciate that the manufacturer emphasizes cell quality and that they are using cells designed for more stable performance and longevity compared with generic commodity cells.
BMS (Battery Management System)
We are paying special attention to the built-in upgraded BMS because it is one of the essential advantages of modern LiFePO4 packs. The BMS is the safety and longevity brain of the battery.
Protections the BMS provides
The built-in upgraded BMS protects against overcharge, over-discharge, over-current, and short circuit, which are critical for safety and cell longevity. We also value the addition of high-temperature and low-temperature cutoffs that prevent charging or discharging once the temperature reaches dangerous thresholds.
Why the BMS matters in real use
A good BMS prevents catastrophic failure, increases usable life cycles, and makes series/parallel connections safer when the recommended practices are followed. We recommend understanding the exact specifications of the BMS (current limits, balance behavior) if you plan to parallel many units or put them in series for higher voltage systems.
Charging and Discharging Performance
We looked at how the battery handles charge currents, discharge demands, and how that translates to usable energy in real-world conditions. Performance determines user experience more than rated Ah alone.
Typical charge profile and recommendations
LiFePO4 chemistry typically uses a CC-CV (constant current, constant voltage) charge profile. We recommend charging at a safe rate—commonly 0.5C up to 1C for many LiFePO4 packs—so a 100Ah unit at 0.5C accepts ~50A and at 1C would accept ~100A depending on BMS limits and manufacturer guidance.
Discharge capabilities and continuous current
Continuous discharge capacity often ranges around 0.5C to 1C for many consumer LiFePO4 packs, with higher short-term peak discharge supported by the BMS. We advise verifying continuous and peak discharge ratings with the supplier before using the battery for high-current applications like large trolling motors or inverter loads.
Cycle Life and Longevity
We are particularly interested in the claims about long cycle life for LiFePO4 technology, which is one of its core advantages. Longer cycle life lowers total cost of ownership over time.
Expected cycle life
LiFePO4 chemistry regularly provides thousands of cycles; many quality packs provide 2000–5000 cycles at moderate Depth of Discharge (DoD). We find that realistic expectations are around 2000–4000 cycles at 80% DoD depending on charge/discharge rates, temperature, and system setup.
Factors that affect lifetime
Temperature, depth of discharge, charge/discharge rate, and storage state of charge all affect longevity. We recommend keeping the battery in a moderate temperature range and avoiding repeated deep discharges if maximizing cycle life is a priority.
Capacity Expansion and System Integration
We appreciate that these batteries are designed to be flexible in series or parallel, which helps scale systems for different voltages and capacities. Correct system design and matching are crucial when combining units.
Parallel and series connections
The batteries support series or parallel connecting, enabling capacity expansion and system voltage scaling. We must emphasize that when paralleling or putting in series, all batteries should be of the same capacity, age, and charge state to avoid imbalance and premature cell stress.
Practical tips for expansion
When expanding capacity, we recommend using a proper balancing system or monitoring setup and ensuring that the BMS on each battery is compatible with parallel operation. We also suggest adding fuses or breakers and following good wiring practice to minimize risk and enable safe servicing.
Use Cases and Application Notes
We considered common deployments—solar home systems, marine applications, RVs, trolling motors, and portable setups—to show where this battery family excels. Each use case has its own priorities (weight, cycle life, continuous discharge).

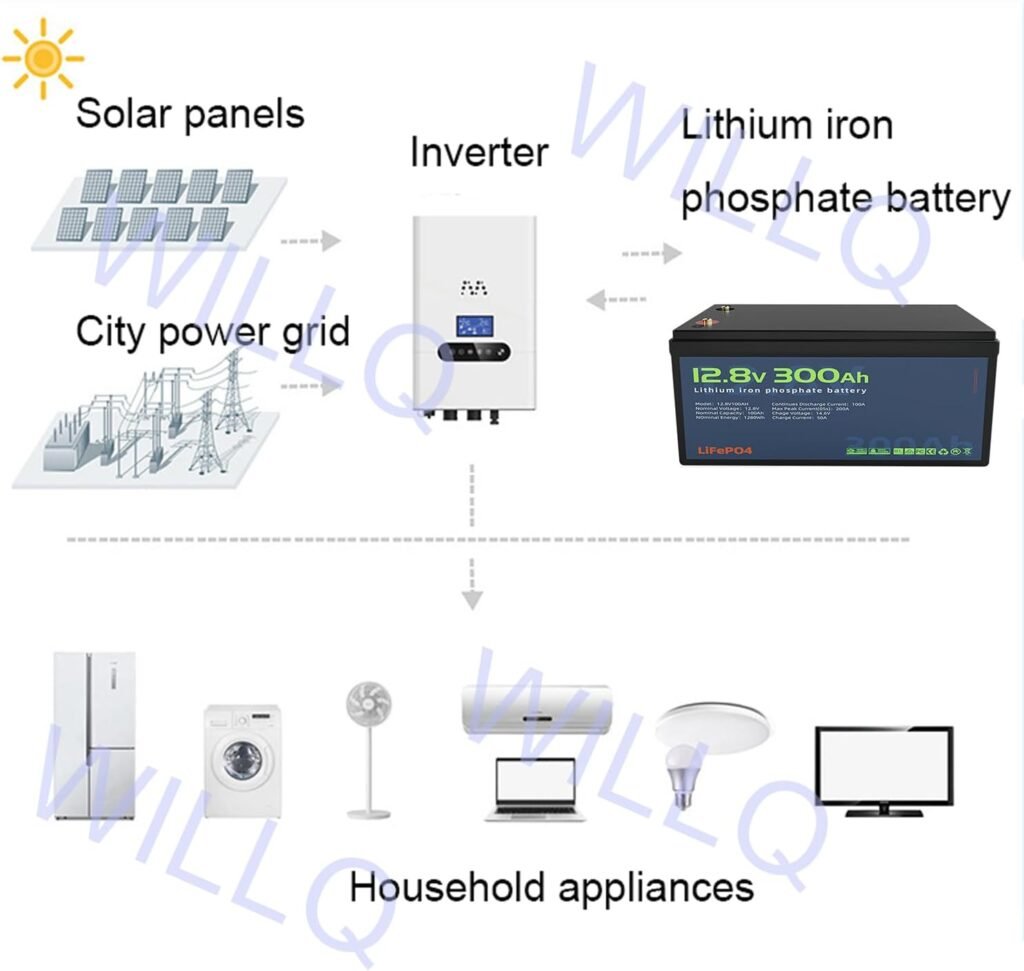

Solar home storage
For small to medium solar home systems, the 100–300Ah options are often the best fit depending on daily energy needs. We appreciate LiFePO4’s higher usable capacity (commonly 80–100% usable compared with 50% for lead-acid), which effectively reduces the number of parallel batteries needed.
Marine and trolling motor use
For boats and trolling motors, weight, vibration resistance, and safety in enclosed compartments matter a lot. We find LiFePO4 attractive for marine use because it is lighter, less prone to leaking, and more tolerant of repeated deep cycles compared with lead-acid batteries.
RVs, trailers, and off-grid vehicles
RVers and van-builders value weight savings, space efficiency, and long cycle life, and these batteries offer clear advantages in those areas. We recommend balancing capacity choice against available charging sources (alternator, solar, shore power) to ensure recharge times align with usage patterns.
Safety and Environmental Considerations
Safety is a priority for users in mobile and home environments, and LiFePO4 chemistry generally has good safety attributes compared to other lithium-ion variants. We will highlight both what is strong and what still requires care.
Safety strengths of LiFePO4
LiFePO4 has a more stable chemistry with lower thermal runaway risk than many other lithium-ion chemistries, and the built-in BMS adds multiple layers of protection. We still treat batteries with respect—avoid crushing, exposing to fire, or using damaged cells—and follow the manufacturer’s guidelines for charging and installation.
Environmental impact and disposal
Lithium iron phosphate batteries are more environmentally friendly than some alternatives because they don’t use cobalt and they tend to last longer, reducing waste. We still recommend recycling at end of life through appropriate battery recycling programs to recover materials and avoid landfill disposal.
Installation and Mounting
We pay attention to installation ease and safety because many customers install these batteries themselves in boats, vans, or small home systems. Proper mounting, access to terminals, and cable routing are important for both safety and maintenance.
Mounting orientation and locations
LiFePO4 cells are generally more flexible in mounting orientation than flooded lead-acid cells because they do not leak, and this product highlights many mounting directions as acceptable. We still recommend mounting on a flat, secure surface with vibration damping if used in marine or vehicle environments, and ensuring terminal access for inspection and balancing leads.
Wiring, fusing, and safety accessories
Use appropriately sized cables, correct terminal lugs, and install fuses or circuit breakers close to the battery positive terminal. We suggest following best practices: keep wire runs short, ensure clean crimped connections, and protect conductors from abrasion and heat sources.
Charging Systems and Compatibility
We want to make sure readers know how to integrate this battery with chargers, solar regulators, alternators, and inverters. Compatible charging parameters and conservative settings prolong battery life.
Charger settings and solar controllers
Set your charger to LiFePO4 / LiFePO4 settings if available. Typical charge limits are around 14.4–14.6V for bulk/absorb (3.6–3.65V per cell) and float not always required—if used, around 13.6V—though recommended settings can vary by BMS design, so consult the supplier.
Alternator and DC-DC charging
If charging from an alternator, use a smart DC-DC charger or an alternator charging system that supports LiFePO4 profiles to avoid overvoltage or misbehavior under varying rpm conditions. We recommend DC-DC chargers that can match LiFePO4 charging profiles and provide controlled current limits.
Monitoring and Management
We think monitoring state of charge and system health is one of the best ways to get consistent long-term performance from a battery bank. The built-in BMS protects hardware, but external monitoring allows better energy planning.
Battery monitoring devices
Using a battery monitor (shunt-based systems) or BMS with Bluetooth/communication features gives accurate state-of-charge, amp-hour counting, and historical data. We recommend adding a monitor when you rely on the battery for critical power so that you can avoid deep discharge cycles and plan recharges effectively.
Integrating with smart systems
If you have a solar charge controller or inverter with battery communication (CANbus, RS485, or similar), check if the BMS supports such communication. We find that integrating the battery into a central system avoids guesswork and improves charging strategies.
Maintenance and Storage
We will describe straightforward practices that preserve capacity and extend the useful life of the batteries. Good maintenance is mostly preventive and relatively simple compared with many legacy chemistries.
Storage state-of-charge and temperature
Store LiFePO4 batteries at roughly 40–60% state of charge for longer-term storage to reduce capacity fade. We also recommend storing at moderate temperatures—ideally between 10–25°C—and avoiding extremes that accelerate degradation.
Periodic checks and firmware updates
Periodically check terminals for tightness, ensure the BMS hasn’t tripped, and inspect the case for damage. If the manufacturer provides firmware updates or communication tools, we suggest applying updates as directed because they can improve balancing and safety features.
Pros and Cons
We want to present a balanced view so readers can weigh trade-offs and choose based on their priorities. The pros and cons reflect real-world considerations for a product of this type.
Advantages
We find multiple advantages in this LiFePO4 family: considerably lighter weight than lead-acid, built-in upgraded BMS for safety, high cycle life, good thermal tolerance, and flexible series/parallel expansion. We also appreciate the use of Automotive Grade A cells and the wide range of capacities that support varied applications.
Drawbacks and cautions
Some potential drawbacks include higher upfront cost compared with lead-acid, the need to verify specific charge/discharge ratings for high-current applications, and the necessity of proper system design when paralleling or series-connecting multiple units. We also recommend confirming warranty terms and support channels before large purchases.
Comparison with Lead-Acid and Other Lithium Types
We want to clarify where LiFePO4 stands relative to lead-acid and other lithium chemistries so readers can make informed choices.
Versus lead-acid
Compared to lead-acid batteries, LiFePO4 batteries are lighter, offer greater usable capacity, have a longer lifecycle, and require less maintenance (no watering or equalization). We acknowledge that the initial purchase price is higher, but the total cost of ownership often favors LiFePO4 due to longer life and better usable capacity.
Versus other lithium chemistries
Compared to NMC or other high-energy lithium-ion chemistries, LiFePO4 is generally safer and more thermally stable with a longer cycle life, though it has a slightly lower energy density. We think that for stationary, marine, and mobile power where safety and cycle life matter, LiFePO4 is often the better practical choice.
Frequently Asked Questions (FAQs)
We are answering common questions we see from customers considering a battery like this to help clear up typical uncertainties. Each Q&A below gives concise guidance.
Can we directly replace a lead-acid battery with this LiFePO4 battery?
In most cases, yes—you can replace a lead-acid battery with an appropriately sized LiFePO4 battery, but you should check charger compatibility and system voltage settings first. We recommend sizing at least equal usable capacity (LiFePO4 can use more of its rated capacity) and updating charging profiles to LiFePO4.
Can multiple batteries be paralleled for more capacity?
Yes, these batteries support parallel connection for capacity expansion, provided each battery is the same model, capacity, and has a similar age and state of charge at installation. We advise following manufacturer guidance and ensuring good balancing, fusing, and wiring practices.
What is the recommended charging voltage?
Typical LiFePO4 charging bulk/absorb voltage is about 14.4–14.6V (3.6–3.65V per cell), and float is often not required; if used, around 13.6V is common. We encourage checking the battery documentation or contacting the vendor to confirm the exact voltage and charge profile for the built-in BMS.
How long will the battery last in years?
Depending on usage, cycle depth, temperature, and charge/discharge rates, the battery can last many years; LiFePO4 often achieves 2000+ cycles which can translate into a decade or more of use in many applications. We stress that proper charging, storage, and temperature control are essential to realize long service life.
Is the built-in BMS serviceable?
Generally, the built-in BMS is integrated and not intended for user servicing; if the BMS fails or the battery shows persistent faults, contact the manufacturer or retailer for support and warranty service. We recommend documenting purchase and serial numbers and understanding warranty terms at the time of purchase.
Practical Buying and Installation Checklist
We want to make the final shopping and installation decision easier by sharing a short checklist that captures the essentials before purchase and installation. Use this to avoid common pitfalls and ensure the battery fits the system.
Pre-purchase checklist
Confirm the exact capacity and weight for your chosen SKU, verify the BMS continuous and peak current ratings, check the warranty and support terms, and confirm charger compatibility with LiFePO4 profiles. We also recommend thinking about future expansion needs so that you pick a capacity and model that fits long-term plans.
Pre-installation checklist
Gather appropriate cabling, fuses or breakers, battery monitor or shunt, and mounting hardware rated for the battery weight; plan for ventilation and avoid placing the pack near high-heat zones. We also recommend charging the battery to the recommended state of charge and balancing it (if possible) before putting it into full service.
Final Verdict
We believe this family of “Lithium Battery 12V 50Ah 100Ah 150Ah 200Ah 300Ah LiFePO4 Batteries with BMS 12.8V Rechargeable Lithium Iron Phosphate Battery for Solar Marine Trolling Motor” represents a practical, modern choice for anyone upgrading from lead-acid or building a new modular energy system. We appreciate the built-in upgraded BMS, the use of Automotive Grade A cells, flexible capacity options, and the clear performance benefits LiFePO4 offers in weight, cycle life, and usable capacity.
Who should buy this product
If we prioritize long life, safety, weight savings, and flexible system design—whether for solar storage, marine service, RV use, or powering trolling motors—this product family should be on our shortlist. We encourage buyers to verify detailed BMS specs, charge/discharge ratings, and warranty coverage for the specific capacity they plan to order, and to design the system around the battery’s capabilities rather than the other way around.
We hope this detailed review helps us make an informed choice and plan a safe, efficient installation that maximizes the benefits of LiFePO4 technology.
