Looking for a reliable 12V battery that gives us true usable capacity, works in sub-zero temperatures, and fits under a seat for easy plug-and-play swaps?
Product Overview

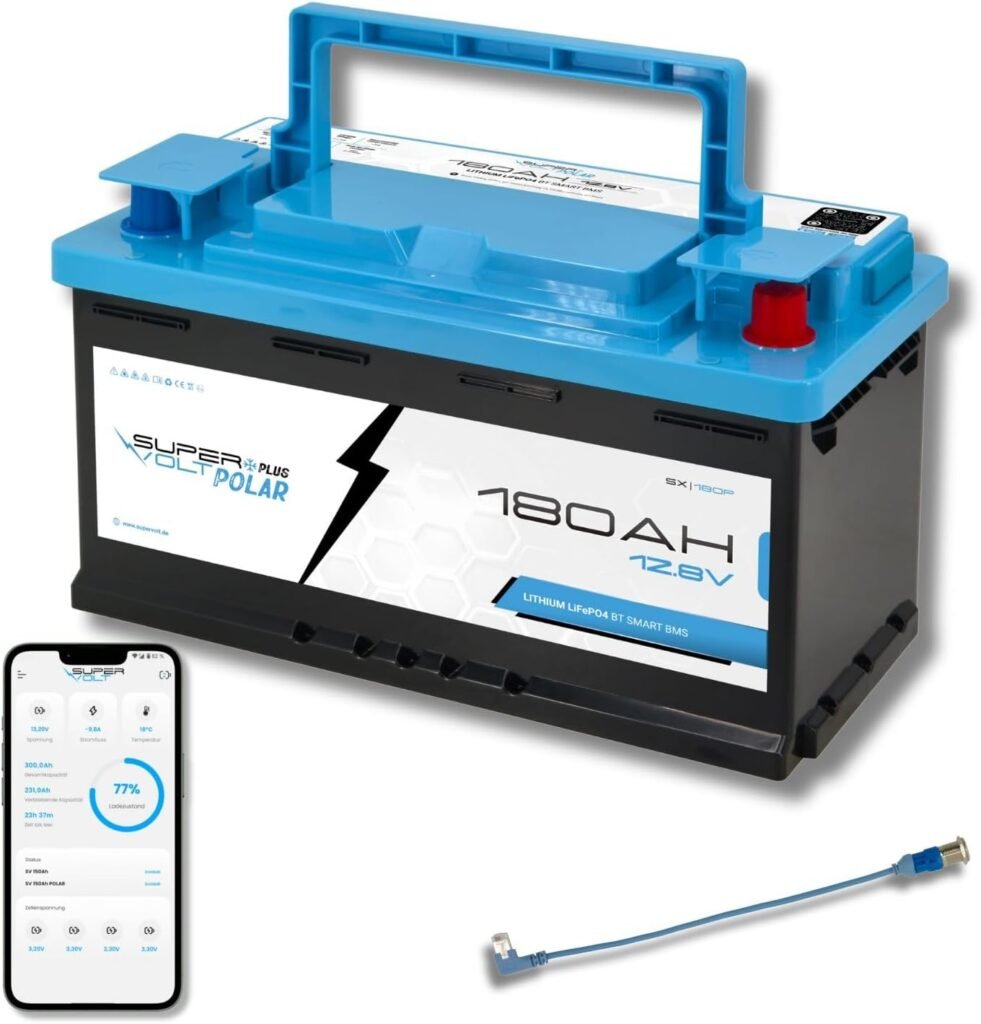

We tested the Polar LiFePO4 12V 180Ah Lithium Battery | 100% Usable Capacity, Plug & Play DIN Dimensions, with Smart BMS, Bluetooth & Heating up to -30°C | For Motorhome, Box Van, Boat, Solar and found it to be a modern solution that targets vehicle and small off-grid energy storage needs. The battery is built around A-grade EVE prismatic LiFePO4 cells, includes a Smart BMS with Bluetooth monitoring, and is designed with DIN-standard dimensions to simplify replacements and installations.
What makes this model stand out
We like that the manufacturer promises 100% usable capacity and over 3,000 charge cycles at a 90% depth of discharge, which is far beyond typical lead-acid behaviour. In addition to capacity and lifecycle claims, the integrated heater and Bluetooth monitoring make it a practical choice for cold climates and for users who want real-time battery status.
Technical Specifications
We put key data into a table so we can quickly compare the most relevant specs at a glance. This helps when deciding if the battery fits our system, weight constraints, and power needs.
| Specification | Details |
|---|---|
| Nominal Voltage | 12V |
| Capacity | 180 Ah |
| Usable Capacity | 100% (≈ 2,160 Wh nominal) |
| Cell Type | A-grade EVE prismatic LiFePO4 |
| Cycle Life | 3,000+ cycles at 90% DoD |
| Continuous Discharge Current | 160 A (≈ 1.92 kW) |
| Peak Discharge Current | Up to 250 A |
| Heater Operating Range | Maintains performance down to -30°C |
| Dimensions (DIN) | 353 × 175 × 190 mm |
| Weight | ~15.5 kg |
| Connectivity | Bluetooth 5.0 (Supervolt app), RJ45 for BMS updates |
| Terminals | M8 thread |
| Series/Parallel Capability | Can be connected in series or parallel (up to 4S indicated) |
| Protections | Overcharge, over-discharge, overtemperature, short circuit |
| Certifications | CE, UN38.3, ECE R10 |
| Warranty | 5 years |
| Waterproof / Vibration Resistance | Yes (designed for mobile use) |
We included dimensions, connectivity, and protections so we can quickly assess if this battery fits our physical and electrical constraints.
Safety and Smart BMS
We value safety in any battery system, and this battery’s Smart BMS is a central selling point for that reason. The BMS protects against overcharging, deep-discharge, overheating, and short circuits, and it actively manages both active and passive cell balancing to keep cell voltages even.
Certifications and monitoring
We feel reassured by the CE, UN38.3, and ECE R10 certifications listed for this battery, as they reflect compliance with international safety and transport standards. Real-time monitoring via Bluetooth 5.0 and the Supervolt app gives us visibility into state of charge, cell voltages, and BMS alerts, which helps with preventive maintenance and safe operation.
BMS connectivity and updates
We appreciate the convenience of Bluetooth for on-the-spot monitoring and the RJ45 port for firmware updates or more advanced configuration. The inclusion of on/off and reset functionality through the BMS allows us to manage the battery without extra hardware, but we’ll still fuse and wire carefully to avoid unintended shutdowns.
Performance and Lifespan
We look at lifecycle and usable energy as two of the most important metrics for long-term value. This model claims over 3,000 charge cycles at 90% depth of discharge and 100% usable capacity, which translates into significantly more energy throughput and lower total cost of ownership compared to flooded or AGM lead-acid batteries.
Cell quality and balancing
We like that the battery uses A-grade EVE prismatic cells—high-quality cells typically mean better internal resistance, more consistent performance, and improved longevity. Active and passive balancing features help keep cell voltages equal over time, minimizing degradation and extending the battery’s effective life.
Practical lifecycle expectations
We expect the battery to retain strong capacity under regular cycling if we follow recommended charging and temperature guidelines. With proper care, the 3,000+ cycles claim should allow many years of daily use for typical camper, van, boat, or solar applications.
Cold-Weather Capability
We found the integrated heating option to be a significant advantage if we intend to use the battery in cold climates. Typical LiFePO4 batteries can have reduced charge acceptance and performance below freezing, but the onboard heater and design here are intended to maintain performance down to -30°C.
How the heater helps us
We appreciate that the heater allows full power output at extreme cold, so portable fridges, heating loads, and starting circuits remain reliable when temperatures drop. That makes this battery particularly attractive for winter camping, cold-region marine use, and other low-temperature environments.
Practical considerations for winter use
We still recommend that we manage charging and downtime carefully in sub-zero conditions—properly configured charging sources (alternator or charger with appropriate setpoints) and the BMS settings are important to avoid strain while the battery heats and stabilises.
Power Output and Use Cases
We like batteries that can reliably run multiple loads at once, and with a continuous discharge rating of 160 A (about 1.9–2.0 kW) and peak capability up to 250 A, this battery can handle common camping and marine equipment simultaneously.
Typical systems and appliances
We can run fridges, inverter-fed electronics, lights, pumps, and small heaters in combination without concern for immediate overload. For high-power induction stoves or heavy AC loads, we should size the inverter and battery pack accordingly, or consider paralleling batteries for greater sustained capacity and current.
Series and parallel configurations
We appreciate the flexibility to connect the battery in series or parallel. The spec notes up to 4S—which we interpret as the ability to create higher-voltage banks (for example, to make a 48V pack using four 12V batteries in series) and also the possibility of parallel connections for higher capacity. We should match batteries closely (same model, age, and state of charge) and follow manufacturer wiring and BMS rules when combining units.
Installation and Fitment
We love when a battery is physically easy to integrate, and the DIN standard housing (353 × 175 × 190 mm) is designed to fit common under-seat battery trays in motorhomes and vans. At roughly 15.5 kg, the battery is significantly lighter than equivalent lead-acid options, making installation simpler for most of us.
Plug-and-play replacement
We can often swap this LiFePO4 battery into existing lead-acid spaces without structural modifications, which reduces installation time and the need for additional mounting solutions. The M8 terminal threads and on/off/reset features simplify wiring and maintenance during installation.
Mechanical protection and environment
The battery is rated as waterproof and vibration resistant, which is useful for mobile and marine applications where exposure and movement are expected. Still, we recommend securely mounting the battery, protecting terminals, and adding appropriate fuses and disconnects to match the expected current flow.
Charging and Compatibility
We like batteries that play well with the ecosystem of alternators, solar charge controllers, and DC chargers we might already own. This model supports fast charging, is compatible with solar systems and charging boosters, and can interface safely with alternators when configured correctly.
Charging profiles and settings
While the battery accepts high charging power, we should use a charger or MPPT solar controller with an appropriate LiFePO4 charging profile to maximise life and performance. The BMS will protect the battery from improper charging to a degree, but correct voltage setpoints (bulk, float, and absorption) and current limits yield the best long-term result.
Using with alternators and DC-DC chargers
We can connect the battery directly to alternators in many systems, but we prefer using a DC-DC charger or charging booster where the alternator voltage varies or where the vehicle charging system is not designed for LiFePO4 chemistry. This reduces stress on both the alternator and the battery, and helps maintain appropriate charging voltages during engine running.
Practical Runtime Examples
We like concrete examples to visualise how the battery performs in daily use, so we put together estimated runtimes for common appliances. These are approximations based on the battery’s usable energy (~2,160 Wh), and real-world run times will vary with inverter losses, ambient temperature, and actual appliance draw.
| Appliance | Power Draw (W) | Estimated Runtime (hrs) on 180Ah LiFePO4 (≈2,160 Wh usable) |
|---|---|---|
| 12V LED lighting (50 W total) | 50 | ~43 hours |
| 12V fridge (average 60 W) | 60 | ~36 hours |
| Laptop charger (60 W) | 60 | ~36 hours |
| Small TV (100 W) | 100 | ~21.5 hours |
| Electric kettle (1500 W, via inverter) | 1500 | ~1.4 hours (very short bursts; inverter surge capability required) |
| 1500W microwave (inverter) | 1500 | ~1.4 hours (not recommended for long use; inverter must support surge) |
| 1000W inverter load (e.g., power tools) | 1000 | ~2.1 hours |
| 300W power consumption (multiple devices) | 300 | ~7.2 hours |
We emphasise that inverters introduce efficiency losses (typically 85–95% depending on quality), and startup surges for motors or compressors can exceed the continuous current ratings. For compressor fridges or pump starts, check the surge capability of the inverter and the battery’s peak current spec (250 A) against the motor’s starting current.
Comparison with Lead-Acid and Other LiFePO4 Options
We find comparisons useful to justify the up-front cost. Compared to lead-acid batteries, the Polar LiFePO4 12V 180Ah offers several clear advantages: full usable capacity (100% vs ~50% safe DoD for lead-acid), much longer cycle life, significantly lighter weight, and higher continuous and peak discharge capability.
Usable capacity and lifecycle math
If we compare usable energy and cycle life, LiFePO4 often delivers many times the total usable energy over its life compared to lead-acid. For instance, with 3,000 cycles usable at 90% DoD, the total energy throughput is enormous versus lead-acid’s typical 300–800 cycles at shallow DoD.
Weight and space benefits
At roughly 15.5 kg, this battery is about half the weight of comparable lead-acid units, which reduces payload for vehicles and simplifies mounting. The DIN housing helps us fit it under seats and in common battery compartments without custom trays.
Installation Tips and Best Practices
We recommend a few practical steps to ensure reliable operation, longevity, and safety when installing and using this battery.
Wiring, fuses, and protection
We always install an appropriately rated DC fuse or circuit breaker as close to the battery positive terminal as possible to protect wiring and prevent catastrophic short circuits. The fuse rating should be sized to protect the wiring and handle expected peak currents; consult the battery manual for recommended sizing.
Charging configuration and matching
When combining multiple batteries in series or parallel, we must use identical batteries (same model, age, and state of charge) and wire them carefully following manufacturer guidelines. For series setups, ensure cell balancing and BMS compatibility; for parallel setups ensure identical internal resistance and SOC before connection.
Temperature and ventilation
Although the battery is waterproof and vibration-resistant, we still mount it in a secure, ventilated location away from excessive heat sources. In cold climates, rely on the integrated heater and ensure the battery has access to adequate charging sources so the heater can operate when needed.
Firmware and monitoring
We recommend pairing the battery with the Supervolt app during installation, updating firmware through the RJ45 port when available, and logging BMS alerts early to prevent issues. Regularly check Bluetooth stats and BMS logs so we spot trends rather than abrupt failures.
Troubleshooting and Common Questions
We expect a few issues may arise in real installations, and it’s helpful to be prepared with simple troubleshooting steps.
Bluetooth or app connectivity issues
If Bluetooth fails to pair, we first check app permissions and the device’s Bluetooth settings, then move the phone/tablet closer to the battery and try powering the battery off and on. If problems persist, updating the BMS firmware via RJ45 may help resolve compatibility issues.
Battery not charging or BMS limiting current
If charging seems limited, we inspect wiring and fuses, check charger voltage setpoints for LiFePO4, and ensure the battery thermostat/heater is allowed to operate at low temperatures. The BMS may limit charge to protect cells, especially if it detects extreme temperatures or an imbalance.
Unexpected shutdowns or capacity loss
If capacity seems reduced, we check the BMS logs for fault codes, confirm charging profile adherence, and review cycle history via the app. If the battery has been stored for a long period at low state of charge, a recovery charge according to manufacturer instructions may restore balance.
Pros and Cons
We summarise the main strengths and potential limitations so we can weigh the decision quickly.
Pros:
- 100% usable capacity for fuller energy utilization.
- Long lifecycle: 3,000+ cycles at 90% DoD.
- Lightweight and DIN-form factor fits many under-seat spaces.
- Integrated heater allows operation down to -30°C.
- Smart BMS with Bluetooth monitoring and firmware update capability.
- High continuous (160 A) and peak (250 A) discharge ratings.
- Safety certifications (CE, UN38.3, ECE R10) and 5-year warranty.
- Waterproof and vibration resistant for mobile use.
Cons:
- Up-front cost is higher than lead-acid; payback depends on usage patterns.
- Combining batteries requires careful matching and adherence to manufacturer guidance.
- For very high AC loads, multiple batteries or a larger bank may be necessary.
- A note for VW Grand California users suggests another product line (Supervolt Ultra) might be preferred for that specific vehicle in some applications.
Who Should Consider This Battery?
We think this battery is an excellent match for people who use motorhomes, camper vans, box vans, boats, or small off-grid solar systems and want reliable, lightweight energy storage. It’s especially attractive for winter campers or anyone operating in sub-zero climates thanks to the integrated heater.
Specific use cases
- Motorhome or van owners who want a direct lead-acid replacement under the seat.
- Boat owners needing vibration- and waterproofed energy storage with strong discharge capability.
- Solar users looking for a compact 12V bank with advanced BMS and Bluetooth monitoring.
- Those who need reliable starting and high-power draws for inverters and appliances.
Warranty, Support, and Final Thoughts
We appreciate the 5-year warranty, which gives us confidence to commit to a higher up-front price when compared to lead-acid alternatives. Combined with the safety certifications and integrated smart features, the warranty signals manufacturer confidence in the product.
Final take
We conclude that the Polar LiFePO4 12V 180Ah is a well-rounded battery for mobile and off-grid use, offering high usable capacity, robust safety features, and cold-weather capability that many other 12V batteries lack. For those wanting a long-term, reliable power solution for their motorhome, van, boat, or solar setup, this battery provides compelling technical advantages and convenience.
If we plan to install multiple units, use heavy AC loads, or operate in specialized vehicle environments (for example, certain VW Grand California configurations), we recommend consulting the manufacturer documentation and, where suggested, considering the Supervolt Ultra series or professional installation advice to match vehicle-specific requirements.
