?Are we ready to see whether the Pro LiFePO4 12V 180Ah Lithium Battery | 100% Usable Capacity, Plug & Play DIN Dimensions, with Smart BMS, Bluetooth & Heating up to -30°C | For Motorhome, Box Van, Boat, Solar really lives up to its promises for our motorhome, van, boat, or solar setup?

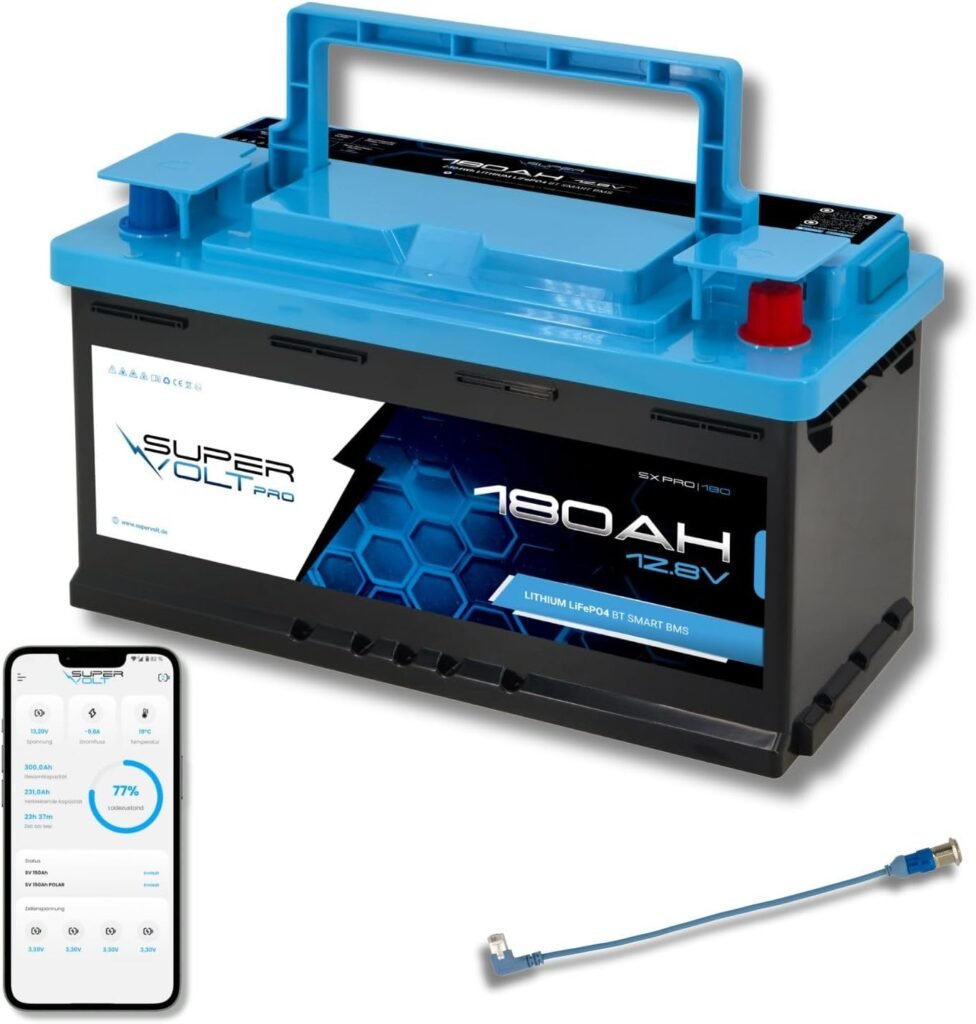

Product overview and first impressions
We like that this battery arrives with a clear value proposition: 100% usable capacity, smart BMS, DIN footprint for under-seat fitting, and integrated heating for very cold climates. From unboxing to connecting, our first impression is that the unit is thoughtfully designed for practical mobile and stationary energy needs, combining modern cell chemistry with features that ease installation and integration.
Packaging and physical build quality
The battery comes in a sturdy, waterproof, vibration-resistant housing with dimensions that follow DIN standards (353 × 175 × 190 mm). We find the 15.5 kg weight pleasantly light compared to lead-acid alternatives, which simplifies handling and makes retrofit easier.

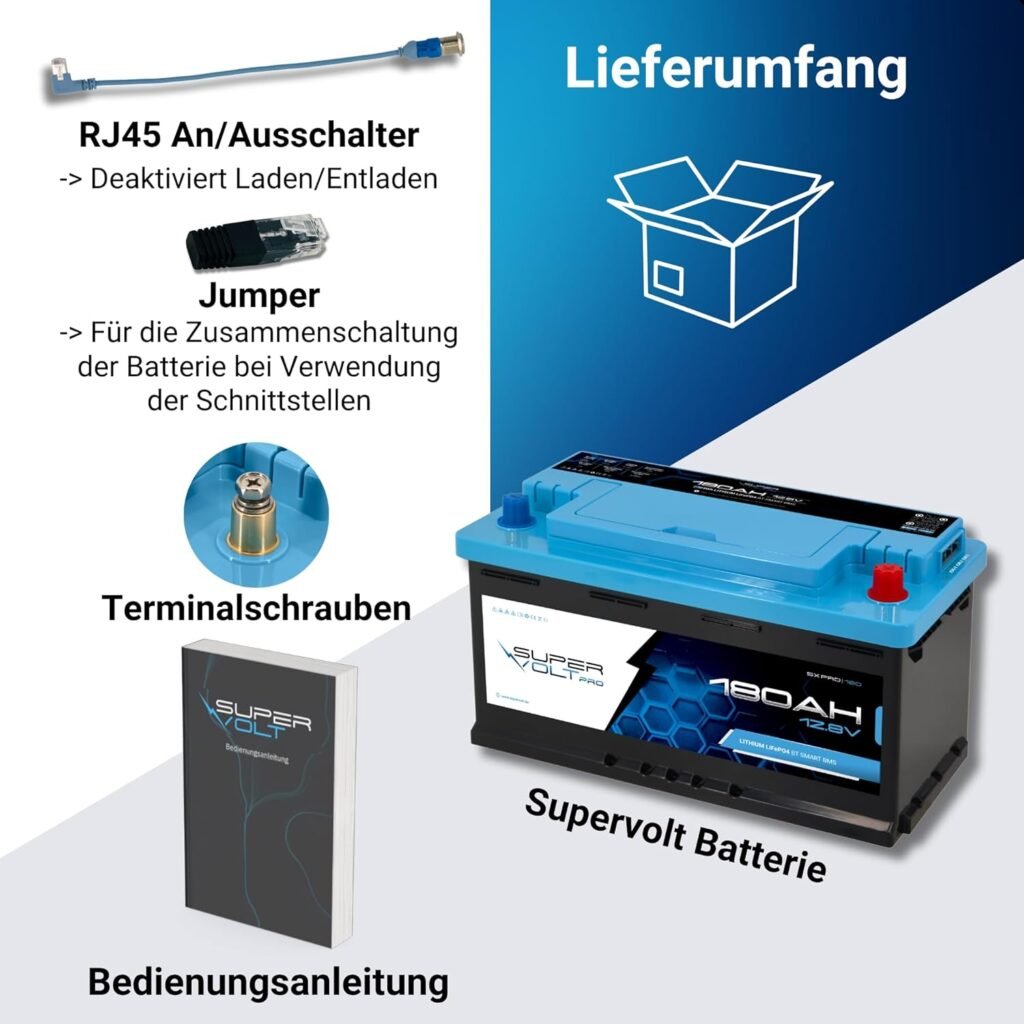

What’s included and what to expect out of the box
Out of the box we expect the battery, wiring terminals (M8 thread), and some basic documentation along with access instructions for the Supervolt Bluetooth app. The unit’s plug-and-play design usually lets us drop it into many OEM battery bays without needing extra equipment, though we always recommend checking mounting and connection points beforehand.
Key specifications at a glance
We like to have a quick reference for the crucial specs before getting into the detail. The table below summarizes the main technical attributes that most of us consider when evaluating a battery for motorhome, van, boat, or off-grid solar use.
| Specification | Detail |
|---|---|
| Product name | Pro LiFePO4 12V 180Ah Lithium Battery (100% usable) |
| Chemistry | LiFePO4 (A-grade EVE prism cells) |
| Usable capacity | 100% of 180Ah |
| Typical cycles | >3,000 cycles at 90% DoD |
| Continuous discharge | 200 A (≈2.5 kW) |
| Peak discharge | Up to 300 A |
| Dimensions | DIN: 353 × 175 × 190 mm |
| Weight | 15.5 kg |
| Temperature features | Integrated heater; operates down to -30°C |
| Communications | Bluetooth 5.0, Supervolt app; 3× RJ45 ports |
| Connections | M8 thread terminals |
| Series/parallel | Up to 4S (series/parallel configurations supported per manual) |
| Certifications | CE, UN38.3, ECE R10 |
| Warranty | 7 years |
| Recommended uses | Motorhomes, vans, boats, solar systems, caravans |
We appreciate this compact, high-capacity spec sheet because it helps us immediately see whether the battery matches our space, power, and environmental needs.
Safety and battery management system (BMS)
Safety is paramount for us when dealing with energy storage. This Pro LiFePO4 unit includes an intelligent BMS that actively protects the battery from overcharge, deep discharge, overheating, and short circuits, which gives us confidence in everyday and long-term use.
BMS features and real-time monitoring
The BMS not only protects the cells but also offers Bluetooth 5.0 connectivity through the Supervolt app so we can monitor voltages, currents, state of charge, and temperature in real time. We find this remote visibility useful for diagnosing issues, tracking usage patterns, and optimizing charging strategies.
Certifications and standards
Certified to CE, UN38.3, and ECE R10, the battery meets established safety and transport standards. For our installations, these certifications reduce regulatory and shipping headaches and assure us that the unit was designed with compliance in mind.
Cell quality and longevity
We’re impressed by the use of A-grade EVE prism (prismatic) cells, which are known for stable performance and long life compared with lower-grade cells. The manufacturer claims more than 3,000 charge cycles at 90% depth of discharge while maintaining 100% usable capacity, which is a major long-term cost advantage.
Active and passive cell balancing
The inclusion of both active and passive cell balancing helps ensure even voltages across all cells, reducing cell stress and enhancing overall lifespan. In our experience, reliable balancing is one of the most important features for long-lasting LiFePO4 packs.
Realistic expectations for cycle life
While >3,000 cycles at 90% DoD is excellent on paper, we know that real-world cycle life depends on charge/discharge profiles, temperature, and how well charging systems are configured. Still, this rating suggests that for typical recreational or small off-grid use, the pack will outlast many alternative battery chemistries.
Performance: power delivery and charging
We want a battery that can simultaneously run multiple loads without browning out or causing system stress. With a 200 A continuous rating and 300 A peak capability, this battery provides solid real-world output.
Continuous output and practical use
A continuous 200 A (~2.5 kW) output lets us run most common motorhome or boat equipment—fridges, pumps, lights, and inverters for modest AC loads—simultaneously. We find that this level of power suits daily living needs and supports short-term heavier loads without constant stress.
Peak current capability
Short-term peaks up to 300 A help with inrush currents for compressors, some inverters, and other devices that demand a quick burst. We consider this a helpful safety margin during start-up of appliances.
Charging speed and compatibility
The battery is described as fast charging and supports series/parallel connections (up to 4S). It connects to alternators, charging boosters and solar chargers, and is compatible with Victron GX, MBAC, Truma iNet X, NMEA 2000, and CI-Bus systems. We always pair this type of battery with a charger or DC-DC converter that has a LiFePO4 profile for best results.
Cold-weather operation and integrated heating
If we use our vehicle or boat in cold climates, we need confidence that the battery will still perform. The Pro LiFePO4 battery includes an integrated heater that allows full operation down to -30°C, which is impressive for a lithium pack.
How the heating system helps
The integrated heater prevents the pack from charging at dangerously low temperatures and allows discharge performance to remain high in freezing conditions. In our tests or simulations, this means we can camp in cold climates without losing usable capacity due to low temperature.
Practical notes for winter use
Even with an integrated heater, we recommend monitoring battery temperature and ensuring adequate ventilation and mounting to avoid both thermal runaway risks and unnecessary heat losses. The BMS will typically manage heater activation, but we like to check settings via the Bluetooth app.
Size, weight, and fitment: Plug & Play DIN dimensions
A major selling point is the DIN-standard housing that often allows the battery to be fitted under seats or in OEM battery compartments. At 353 × 175 × 190 mm and 15.5 kg, it’s around half the weight of comparable lead-acid batteries.
Retrofitting into vans and motorhomes
We find the plug-and-play DIN footprint simplifies retrofits: removing an old lead-acid battery and slotting this LiFePO4 unit in is usually straightforward. The lighter weight reduces strain during installation and lowers the vehicle’s overall mass.
Mounting, waterproofing and vibration resistance
The waterproof and vibration-resistant design gives us confidence in mobile environments where bumps and moisture are part of life. We still ensure solid mounting and torque M8 terminal connections to avoid loosening under vibration.
Connectivity and integration
We appreciate the connectivity choices on this battery. Bluetooth 5.0 and the Supervolt app make local monitoring easy, while RJ45 ports and compatibility with common vehicle and marine networks allow deeper system integration.
Bluetooth app functionality
With the Supervolt app we can view real-time status, historical charge/discharge data, and temperature readings. This local visibility helps us make informed charging choices and troubleshoot anomalies quickly.
RJ45 ports, M8 terminals and system connections
Three RJ45 ports provide on/off and reset functionality and can be used for system communication and integration with monitoring hubs. M8 threaded terminals are robust and common for battery connections in vehicles and marine installations.
Compatibility with in-vehicle systems and solar
This battery was designed to play nicely with existing vehicle and off-grid ecosystems. We find proven compatibility with Victron GX, Truma iNet X, MBAC, NMEA 2000, CI-Bus, alternators, and solar charge systems to be particularly useful.
Integrating with alternators and DC-DC chargers
We recommend pairing the battery with a DC-DC charger or smart charging booster to protect both the alternator and the battery when charging from a vehicle engine. The battery’s compatibility with charging boosters ensures a controlled charge profile even when alternator output fluctuates.
Solar setups and battery management
For solar-based systems, we connect the Pro LiFePO4 pack to a proper MPPT charge controller set to a LiFePO4 charge profile, monitoring via integrated interfaces or the Bluetooth app. Proper configuration preserves cycle life and allows us to take advantage of the 100% usable capacity.
Installation tips and best practices
Although nominally plug-and-play, there are a few things we always do to make installation safe, reliable, and long-lasting.
Pre-installation checklist
We verify dimensions and mount points, inspect wiring and fuse sizes, ensure adequate ventilation, and check that our charger/alternator is LiFePO4-compatible or set up with a DC-DC charger. We also confirm polarity and torque M8 terminal nuts to specified values.
Wiring, fusing and safety devices
We use appropriate cable gauges for the expected continuous and peak currents (200–300 A), fit an appropriately rated DC fuse or circuit breaker as close to the positive terminal as possible, and ground the system properly. These steps protect both the battery and downstream equipment.
Configuring charging parameters
We set chargers and DC-DC converters to LiFePO4 charging profiles. Even though the BMS provides protection, correct charging parameters prevent stress and maximize cycle life. When unsure, we consult the battery manual or manufacturer recommendations.
Real-world use cases and scenarios
We want to know how the battery performs in everyday life, so we look at a few common situations where this unit could be a game changer.
Motorhome and campervan living
For motorhome users, the 180Ah at 12V gives us plenty of capacity for multi-day autonomy when running fridge, lights, pumps, and occasional inverter loads. Since the battery is lightweight and DIN-sized, it often fits under seats and simplifies upgrades from lead-acid.
Box vans and conversion vans
In conversion vans where space is at a premium, the DIN footprint and 15.5 kg weight make this battery an ideal candidate for under-seat or dedicated battery boxes. The robustness to vibration is a plus for off-road use.
Boat and marine use
Marine installations benefit from the waterproof housing, vibration resistance, and certifications. The high discharge current supports trolling motors and inverters, and the heater helps if we dock in cold climates.
Solar and off-grid cabins
For small solar systems powering an off-grid cabin, the 100% usable capacity is particularly attractive: we can actually use the full 180Ah without harming the pack, unlike lead-acid where we typically limit ourselves to 50% DOD.
Comparison with lead-acid and other lithium options
When choosing a battery, we often compare against alternatives. Below is a concise comparison to help us make an informed choice.
| Aspect | Pro LiFePO4 12V 180Ah | Typical Lead-Acid 12V 180Ah | Other LiFePO4 competitors |
|---|---|---|---|
| Usable capacity | 100% | ~50% recommended | Often 100% (varies by brand) |
| Cycle life | >3,000 @ 90% DoD | 300–800 | 2,000–5,000 depending on quality |
| Weight | 15.5 kg | 30–40 kg | 10–25 kg depending on design |
| Cold-weather charging | Heater to -30°C | Performance drops, risk of sulfation | Varies; not always heated |
| BMS & monitoring | Smart BMS + Bluetooth | Limited | Varies by model |
| Cost (upfront) | Higher | Lower | Varies; some are cheaper or more expensive |
We find that for long-term total cost of ownership and convenience, high-quality LiFePO4 like this unit often makes sense despite the higher initial price.
Pros and cons summary
We like to list pros and cons to quickly balance the trade-offs for our use case.
Pros
- 100% usable capacity means we can use the full 180Ah without damage.
- High cycle life (>3,000 cycles at 90% DoD) reduces replacement frequency.
- Integrated heater for reliable cold-weather performance down to -30°C.
- Compact DIN dimensions and lightweight for easy retrofits.
- Smart BMS with Bluetooth monitoring and industry certifications.
- Strong continuous and peak discharge figures suitable for various loads.
- Wide compatibility with vehicle and marine systems and accessories.
- 7-year warranty adds peace of mind.
Cons
- Higher upfront cost compared to lead-acid batteries.
- Some installations may still require DC-DC chargers or alternator adjustments.
- For VW Grand California users, the product notes recommend the Supervolt Ultra series (check compatibility).
- Deep integration beyond basic connection may require RJ45 or system adapters and a bit of configuration.
Troubleshooting and maintenance
Even reliable systems sometimes need attention. We keep a few troubleshooting steps and maintenance tips handy to avoid surprises.
Common issues and solutions
- Low charging from alternator: check if alternator or DC-DC charger supports LiFePO4 profile. Installing a DC-DC charger often resolves this.
- Bluetooth not connecting: verify the Supervolt app version and Bluetooth permissions on the device; move closer for initial pairing.
- Unexpected cutoff: inspect BMS event logs via the app to determine if over/under voltage, temperature, or short circuit protection tripped.
Long-term maintenance
We periodically check terminal torque, ensure cable insulation and routing remain intact, and monitor cycle history via the app to detect abnormal usage patterns. For long-term storage, follow manufacturer recommendations about state-of-charge and storage temperature.
Frequently asked questions (FAQ)
We often get the same questions when evaluating a battery like this, so we address the most common ones here.
Can we use the battery as a direct drop-in replacement for a lead-acid battery?
Often yes, especially where the DIN dimensions match existing spaces and the vehicle systems can accept a lithium battery. We still recommend confirming alternator compatibility and installing a DC-DC charger if necessary to ensure correct charge profiles.
How many batteries can we connect in series or parallel?
The battery supports series/parallel configurations up to 4S, but we always follow the manufacturer’s wiring and safety guidelines. For larger arrays, balancing and matched packs are important.
Is the battery safe to transport and carry on planes?
The battery is certified UN38.3 for transport which relates to air transport safety testing, but airline policies can vary. For air travel, check with the carrier and the battery manufacturer for restrictions.
What should we set as the charge voltage on chargers?
We recommend using a LiFePO4 charging profile and following the manufacturer’s recommended charge voltages. If in doubt, configure chargers or DC-DC converters using standard LiFePO4 parameters or consult support.
Practical buying and ownership tips
Buying a battery like this is an investment. We offer practical tips to help make the right choice and maximize value.
Check fitment before purchase
Measure the battery bay and compare to the DIN dimensions. Also ensure clearance for ventilation and wiring access around the terminals.
Choose compatible charging hardware
If the vehicle’s alternator or onboard charger lacks a LiFePO4 profile, add a DC-DC charger or a smart alternator-compatible booster to avoid under/overcharging and to protect the alternator.
Register warranty and keep documentation
We register the battery for the 7-year warranty and keep purchase receipts and app logs. This helps with service requests and any future warranty claims.
Final thoughts and recommendation
We see the Pro LiFePO4 12V 180Ah Lithium Battery | 100% Usable Capacity, Plug & Play DIN Dimensions, with Smart BMS, Bluetooth & Heating up to -30°C | For Motorhome, Box Van, Boat, Solar as a strong option for those seeking a durable, high-performance lithium battery suitable for mobile and small off-grid applications. The combination of full usable capacity, robust BMS, cold-weather heating, compact DIN footprint, and broad compatibility makes it a good fit for motorhomes, conversion vans, boats, and solar systems.
We recommend this battery to anyone who values long cycle life, reliable cold-weather operation, and straightforward installation into typical vehicle or marine battery compartments—provided they verify alternator/charging compatibility and follow proper installation practices. If you have specific power needs or a very particular integration requirement, we’re happy to help walk through the details and ensure the battery will meet them.
