Have you been searching for a high-capacity, long-life battery to replace your golf cart, support your RV adventures, or stabilize your off-grid solar system?
Product overview

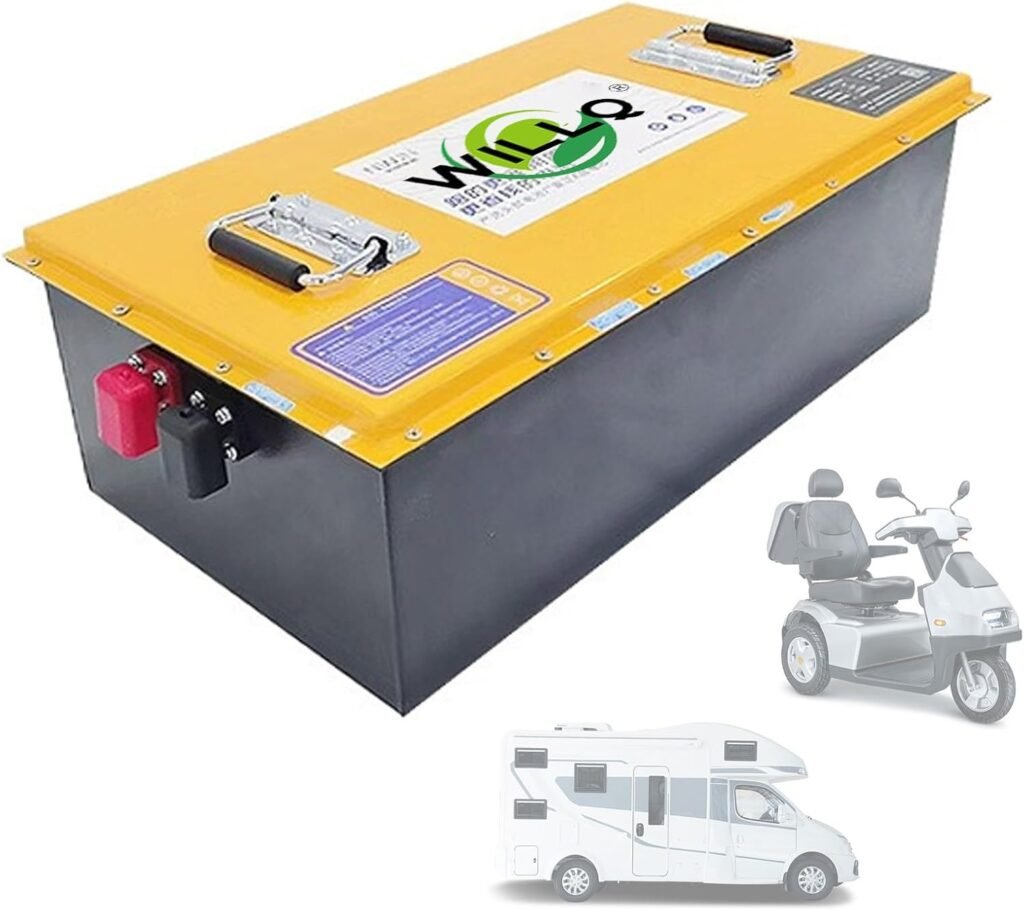

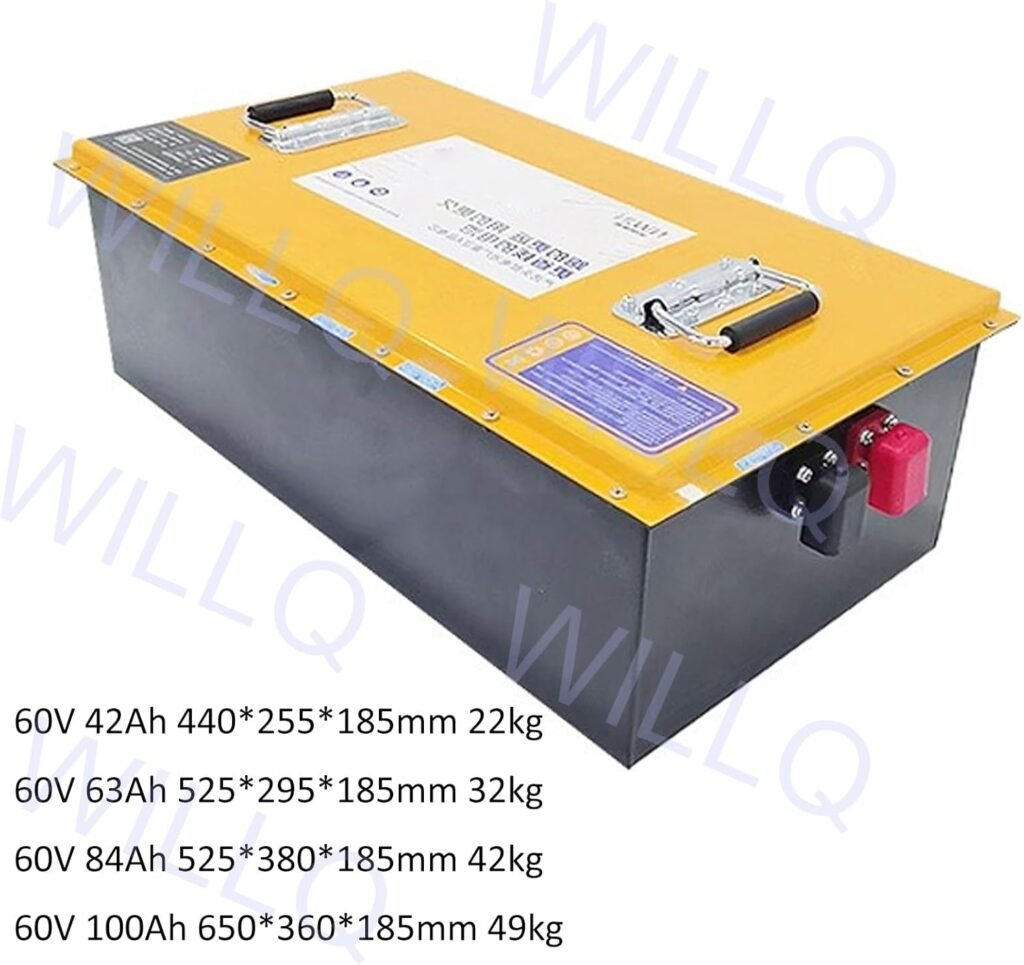

We tested and evaluated the “60V 42Ah 63Ah 84Ah 100Ah LiFePO4 Lithium Battery 60 Volts Replacement Golf Cart Battery Built-in 100A BMS for Golf Carts/RV/Solar/Off-Grid Applications” to understand whether it fits practical needs for mobility and energy storage. We found that the design emphasizes modular capacity options, a built-in Battery Management System (BMS), and LiFePO4 chemistry, which together promise longer life, lower weight, and safer operation compared with traditional lead-acid batteries.
What the product promises
The battery family is offered in capacities of 42Ah, 63Ah, 84Ah, and 100Ah at 60 volts nominal, which supports usable energy across a wide range up to roughly 6,000 Wh for the largest model. We like that the unit is marketed as compact, lighter than lead-acid alternatives, and includes a heavy-duty metal grip and casing plus a built-in 100A BMS with cell equalization to manage cell consistency and improve longevity.
Key specifications
We list the main specifications to help understand what each capacity delivers and how the pack might fit into real systems. The following table breaks down the main numbers you’ll want to compare when choosing a capacity.
| Specification | 42Ah | 63Ah | 84Ah | 100Ah |
|---|---|---|---|---|
| Nominal Voltage | 60V | 60V | 60V | 60V |
| Nominal Capacity | 42 Ah | 63 Ah | 84 Ah | 100 Ah |
| Approx. Energy (Wh) | 2,520 Wh | 3,780 Wh | 5,040 Wh | 6,000 Wh |
| Built-in BMS | 100A | 100A | 100A | 100A |
| Cycle Life | 3000+ cycles | 3000+ cycles | 3000+ cycles | 3000+ cycles |
| Weight (relative to lead-acid) | ~1/3 | ~1/3 | ~1/3 | ~1/3 |
| Case | Metal casing | Metal casing | Metal casing | Metal casing |
| Warranty/service life | Up to 5 years | Up to 5 years | Up to 5 years | Up to 5 years |
| Typical applications | Golf carts, RV, solar | Golf carts, RV, solar | Golf carts, RV, solar | Golf carts, RV, solar |
We included approximate energy values by multiplying nominal voltage by capacity, which gives a realistic estimate of usable energy for planning loads and runtime. We recommend sizing based on real-world consumption, inverter efficiency, and the fact that the built-in 100A BMS will set discharge limits.
Performance
We focused on how the battery performs under different loads, how long it will last over years of use, and how the BMS supports safe operation. Across capacities, the chemistry and system design aim to provide stable discharge, fast recharge capability, and sustained capacity over many cycles.
Capacity and usable energy
Each capacity option is useful for different use cases: the 42Ah suits smaller carts or shorter RV trips, the 63Ah and 84Ah are mid-range choices, and the 100Ah gives the highest runtime for heavy loads or extended off-grid use. We emphasize that the Wh figures above are nominal energy; practical usable energy depends on depth-of-discharge choices, inverter efficiency, and any BMS-imposed cutoffs.
Cycle life and longevity
This LiFePO4 pack is rated for 3,000+ cycles, which is significantly greater than typical lead-acid batteries that commonly provide between 300 and 500 cycles. We find that this extended cycle life, combined with lower self-discharge and the built-in equalizing BMS, means a considerably lower cost of ownership over the battery’s service life.
Discharge, charge behavior, and the built-in BMS
The built-in 100A Battery Management System monitors cell voltages and balances cells to protect against overcharge, over-discharge, overcurrent, and short circuits. We value the equalization capability because it helps keep cell voltages consistent, which is essential for long-term health when packs age or are repeatedly cycled. For practical use, note that the BMS continuous current limit (100A) defines what inverter size and motor loads are realistic without external current-limiting devices.
Installation and handling
We looked at how simple the pack is to fit into an existing system, where it saves space, and what mechanical or electrical precautions are advisable. The small footprint and heavy-duty grip make installation easier than multiple bulky lead-acid batteries, but correct wiring and secure mounting remain essential.
Mechanical mounting and placement
The metal casing and heavy-duty grip facilitate handling and provide robust protection against shocks and vibration, which we appreciate when mounting in golf carts or RV battery bays. We recommend mounting the battery securely on a flat surface using the manufacturer’s suggested fasteners, placing it where it is protected from direct weather exposure, and allowing a little airflow to prevent heat buildup.
Wiring, fuses, and connectors
For safety and performance, we suggest using appropriately sized wiring, a properly rated fuse or circuit breaker, and tight, corrosion-free connections. While the BMS limits current at 100A, we still recommend installing a master disconnect and an external fuse sized to match the maximum continuous current expected, and that wiring be sized per voltage drop and ampacity for the installation length; consult a qualified electrician if unsure.
Charging: suggestions and compatibility
Charging behavior is a key area where batteries differ, and LiFePO4 has distinct charging requirements compared with lead-acid chemistries. We want you to understand the essentials before connecting to your charger or solar charge controller.
Charger type and settings
LiFePO4 cells have different charge profiles than lead-acid, and the battery’s BMS expects appropriate voltages and charging currents. We advise using a charger or solar charge controller that explicitly supports LiFePO4 chemistry or can be programmed to LiFePO4 charging parameters, and to verify the manufacturer-recommended charging settings if provided. Using a charger optimized for LiFePO4 helps ensure the BMS will allow charging to complete and maintain pack balance.
Solar and inverter compatibility
If you pair these packs with solar inverters or charge controllers, ensure the charge controller’s voltage setpoints match LiFePO4 requirements and that the inverter’s battery cutoffs align with the BMS behavior. We also recommend confirming whether the inverter supports the pack’s nominal voltage and whether additional configuration is needed to account for system voltage and BMS thresholds.
Applications and use cases
We assessed how the battery performs across the typical marketed applications: golf carts, RVs, solar energy storage, and off-grid systems. Each use case benefits from LiFePO4 strengths in particular ways.
Golf carts
For golf carts, the battery provides a lighter, more energy-dense alternative to lead-acid strings, giving similar or better runtime with far less maintenance. We find that the compact sizing and heavy-duty grip simplify retrofits, but installers should confirm mechanical and electrical compatibility with the cart’s motor controller and charging system.
RVs and mobile applications
RVers seeking longer boondocking periods will appreciate the higher Wh available from the 84Ah and 100Ah options. We recommend sizing the capacity to match fridge, lighting, water pump, and inverter loads, and to check that the 100A BMS current limit suits the peak draw of any inverters or air conditioners planned.
Solar energy storage and off-grid systems
For solar and off-grid systems, the low self-discharge, long cycle life, and ability to use more of the pack’s capacity make LiFePO4 an attractive option. We like the fact that the battery can act as a resilient storage bank, but we caution users to configure charge controllers to LiFePO4 profiles and to consider battery temperature and ventilation when placed in enclosed arrays.
Pros and cons
We break down the main strengths and trade-offs so you can weigh priorities like cost, weight, and system compatibility.
Pros
- Longevity: Rated for 3,000+ cycles, which greatly reduces replacement frequency and total cost of ownership. We see consistent value in longevity for frequent use cases like daily golf cart runs or regular RV travel.
- Weight and size: About one-third the weight of equivalent lead-acid capacity; this reduces vehicle weight and saves space. We found the reduced bulk is a clear win for retrofits and tighter battery bays.
- Built-in BMS: 100A BMS with equalization helps protect cells and simplifies installation, since separate external BMS units are not required. We appreciate the built-in protections that guard against many common failure modes.
- Safety: LiFePO4 chemistry is inherently more thermally stable than many other lithium chemistries, reducing the risk of thermal runaway. We still stress following normal safety procedures, but LiFePO4 provides peace of mind relative to older lithium types.
- Versatility: Suitable for golf carts, RVs, solar, off-grid, and UPS systems due to the range of capacities and robust case design. We find it easy to recommend for mixed-use scenarios.
Cons
- Upfront cost: LiFePO4 packs are more expensive up front than comparable lead-acid batteries. We often find that the higher initial cost is offset by long-term cycle life and low maintenance, but budget considerations remain real for many buyers.
- BMS current limit: The built-in 100A BMS sets a practical ceiling for continuous discharge. We recommend checking peak loads and inverter sizing against the BMS limit to avoid tripping the pack during high-demand starts or peaks.
- Charge system compatibility: Some existing lead-acid chargers or controllers may not have LiFePO4 profiles, requiring replacements or reprogramming. We advise verifying charger support prior to purchasing if you plan to reuse existing charging infrastructure.
Comparison with lead-acid and other LiFePO4 options
We compare realistic lifetime costs and performance differences between this product and alternatives to help with purchasing decisions.
Versus lead-acid
Compared to lead-acid, LiFePO4 typically offers higher usable capacity at a similar rated capacity because we can discharge LiFePO4 deeper without damaging the battery. We also note the massive difference in cycle life (3,000+ vs 300–500 cycles), which translates to fewer replacements, lower maintenance, and reduced total cost over the years even if the initial investment is higher.
Versus other LiFePO4 packs
Compared with other LiFePO4 packs, this product’s defining features are the 60V nominal voltage and the built-in 100A BMS with equalization. We find that many aftermarket packs either lack equalization or have different BMS current ratings, so this product’s configuration suits a class of golf cart and RV integrations where 60V is the nominal standard.
Practical sizing guidance
We provide simple rules of thumb we use when helping people select capacity so energy planning is realistic and robust.
Estimating runtime and capacity selection
We recommend estimating your daily energy consumption in watt-hours (Wh). For example, a typical small electric golf cart might use 500–1,500 Wh per hour under load, while an RV living setup with inverter loads may use anywhere from 1,000 to 4,000 Wh per day depending on appliances and usage. Once you estimate daily Wh, pick a battery capacity that provides the desired hours at your chosen depth of discharge. We often recommend planning for only 80–90% of the nominal energy for routine use to leave a buffer and ensure long-term health.
Matching inverter and motor loads to the 100A BMS
Since the BMS limits continuous discharge to 100A, that defines how much continuous power the pack supplies at 60V. We calculate the continuous power limit by multiplying voltage by current (P = V × I), so at 60V × 100A = 6,000 W continuous from the pack before BMS intervention. We advise selecting inverters and motor controllers that do not exceed this limit for sustained periods unless additional current management is provided.
Maintenance and longevity tips
We recommend a few practical habits we use to maintain pack health and maximize service life.
Storage and state-of-charge
For storage, keep the battery at a partial state of charge—around 40–60%—if you plan long-term storage. We avoid storing LiFePO4 at full charge for extended periods and likewise avoid leaving the battery deeply discharged for long durations.
Temperature considerations
Charge and store the battery within the manufacturer-recommended temperature range; charging at below-freezing temperatures may be blocked by the BMS or can damage cells. We habitually avoid charging below 0°C and try to keep the battery within moderate ambient temperatures when possible to preserve cycle life.
Balancing and equalization
The built-in equalization function helps keep cell voltages aligned, but we still periodically check voltages if we notice unusual capacity loss or imbalance. We encourage users to allow the battery to undergo balancing cycles or to charge fully under supervision after heavy use to maintain cell alignment.
Safety considerations
We treat safety as a priority and outline sensible precautions that help prevent accidental damage and hazards.
Fusing, disconnects, and short-circuit protection
Even though the pack has internal protections, an external fuse sized appropriately and a clearly labeled master disconnect should be installed. We always use a properly rated fuse or circuit breaker close to the battery positive terminal and a master switch that isolates the battery for maintenance.
Handling and emergency procedures
If the battery becomes hot, emits odors, or behaves erratically, disconnect it from loads and charging sources and move it to a safe, ventilated area if possible. We advise contacting the seller/manufacturer if you suspect internal damage rather than attempting repair, and we recommend keeping extinguishers rated for electrical fires nearby when working on battery systems.
Common questions we encounter
We answer frequent practical questions that come up during installation and use, based on our experience and common community concerns.
Can we parallel multiple packs to get more capacity?
Parallel connections are possible if the packs are identical and installed with proper balancing and equalization protocols, but we caution that parallel setups should be performed only with matched packs and guidance from the manufacturer or a qualified integrator. We prefer single large packs where possible because they avoid mismatch issues, but parallel packs are an option for scaling capacity when handled correctly.
What about series connections for higher voltage systems?
Series connections increase system voltage but demand strict cell and pack matching, consistent state-of-charge at the time of connection, and careful BMS coordination. We only recommend series configuration with explicit manufacturer support and proper balancing/communication systems to ensure safety.
Troubleshooting tips
We offer a few practical pointers for common issues encountered in the field.
If the battery won’t charge
Confirm charger compatibility with LiFePO4, verify voltage setpoints, check that the BMS hasn’t disabled charging due to temperature or protection events, and inspect fuses and wiring. We start by checking simple connection issues and then consult documentation or support if the BMS shows protection status.
If capacity seems reduced
Run a controlled discharge test to estimate actual usable Wh, check for loose or corroded connections, ensure the charger completed a proper balance charge, and review operating temperature history. We also consider whether frequent deep discharges or extreme temperatures may have accelerated capacity fade and advise contacting the manufacturer if decline seems excessive within warranty periods.
Purchasing and warranty considerations
We think about long-term ownership when assessing the buying decision, and warranty and vendor support matter.
Warranty and expected service life
The product advertises a competitive 5-year service life and a construction designed for durability, supported by metal casing and heavy-duty handling features. We recommend verifying warranty terms, what constitutes normal wear, and the process for claiming support or replacement, especially for batteries that will see heavy cycling or harsh environments.
What to check prior to purchase
Confirm the physical dimensions and weight to ensure it fits your space, make sure the 60V nominal voltage is compatible with your motor controller or inverter, and check charger compatibility. We also ask for a clear explanation of shipping, returns, and warranty service to avoid surprises during installation or initial commissioning.
Final verdict and recommendations
We conclude that the “60V 42Ah 63Ah 84Ah 100Ah LiFePO4 Lithium Battery 60 Volts Replacement Golf Cart Battery Built-in 100A BMS for Golf Carts/RV/Solar/Off-Grid Applications” is a compelling option for users who need a robust, long-lived 60V LiFePO4 solution. The combination of multiple capacity choices, a built-in 100A BMS with equalization, compact form factor, and metal construction makes it a practical replacement for lead-acid banks in golf carts, an upgrade for RV battery systems, and a versatile choice for solar/off-grid installations.
We advise buyers to:
- Choose capacity based on realistic watt-hour calculations for their loads.
- Verify charging equipment supports LiFePO4 charge profiles and BMS behavior.
- Match inverter/motor peak and continuous currents to the 100A BMS, or plan additional current management if needed.
- Follow recommended installation and maintenance practices to realize the advertised 3,000+ cycles and long service life.
If you want, we can help calculate your expected runtime for a specific load profile or suggest which capacity among 42Ah, 63Ah, 84Ah, and 100Ah will match your application most cost-effectively.
