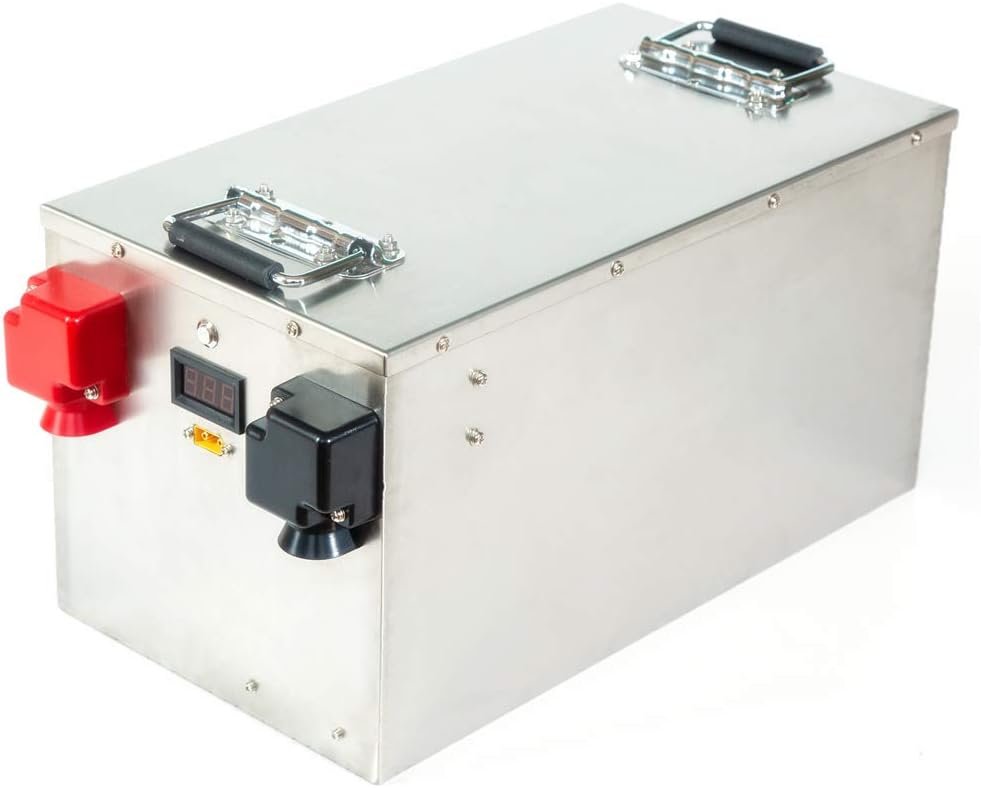

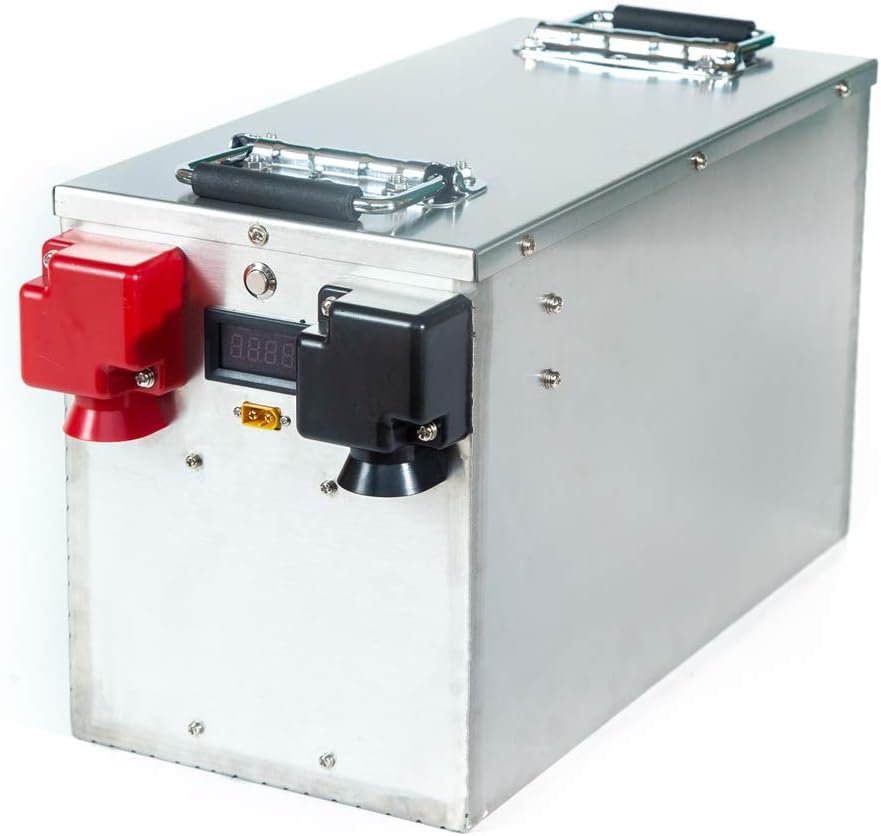

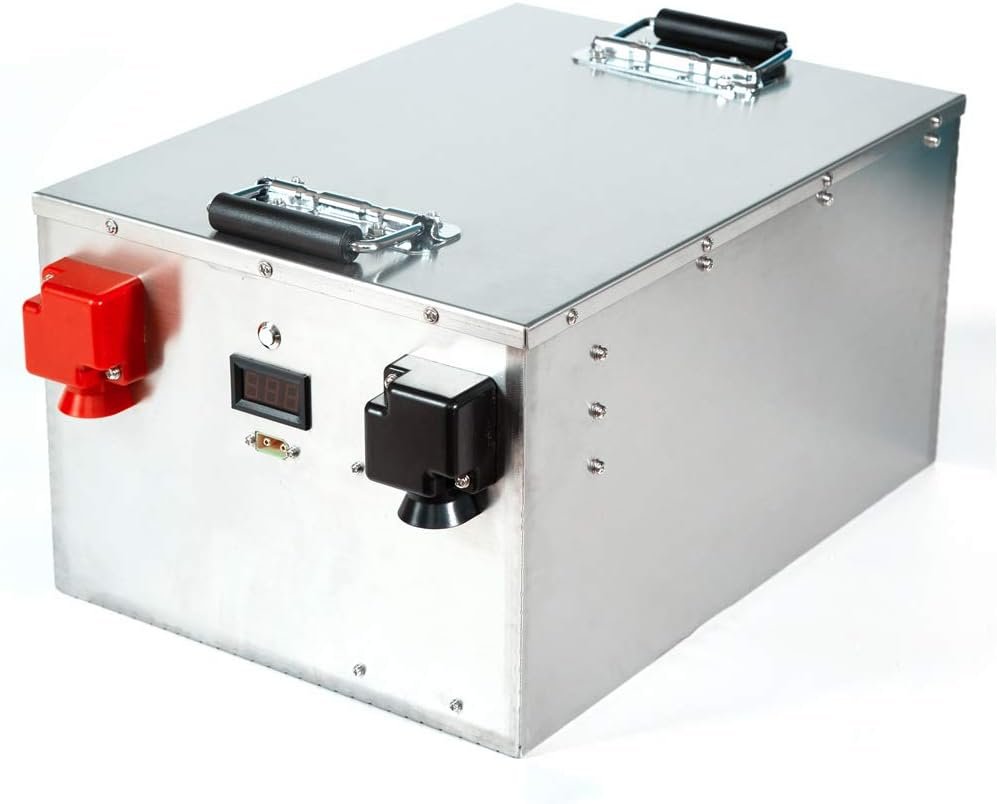

Are we ready to see whether the Lifepo4 250ah 310ah 400ah 500ah 620ah 12V Lithium iron phosphate Battery for Solar System/Motor Home/Boat/Golf Carts/RV car battery Waterproof 12V lifepo4 battery (12V 620ah×1pcs with quick charger) is the right fit for our energy needs?
Product overview
We want to summarize what this product brings to the table and why it might matter to us. This is a range of 12V LiFePO4 (lithium iron phosphate) batteries offered in multiple capacities, and the listing highlights a 12V 620Ah unit that arrives with a quick charger. The pack is built with a waterproof stainless steel case and an internal Battery Management System (BMS) for protection, which makes it suitable for off-grid and mobile applications.
What the product listing promises
We should always check the core promises so we know what to expect. The manufacturer advertises over 3,000 cycles of life for these LiFePO4 batteries, a maximum discharge current of 600A (for the 620Ah variant), and operating temperature ranges for charging, discharging, and storage. The unit is aimed at many applications, from solar systems and motor homes to boats, golf carts, RVs, and more.
Key specifications
We like to put the critical numbers in one place so we can quickly reference them. Below is a table that summarizes the essential specifications for the 12V 620Ah unit and a quick glance at the range of capacities available in this product family.
| Specification | 12V 620Ah (specified) | Notes / Range for other capacities |
|---|---|---|
| Nominal voltage | 12V | Standard 12V system compatibility |
| Capacity | 620 Ah | Other offered capacities: 250Ah, 310Ah, 400Ah, 500Ah |
| Usable energy (approx.) | 7.44 kWh | Calculated as 12V × Ah / 1000; smaller models scale accordingly |
| Max discharge current | 600 A | Specified for 620Ah model; smaller units may have lower max currents |
| Service life (cycles) | > 3,000 cycles | Typical LiFePO4 long cycle life when maintained properly |
| Charging temperature | 0 ~ 45 °C | Recommended environmental range for charging |
| Discharging temperature | -20 ~ 60 °C | Wide operating range for discharge |
| Storage temperature | -20 ~ 60 °C | Safe short-term storage range |
| Case | Stainless steel, waterproof | Rugged packaging for outdoor/marine use |
| BMS | Built-in protection board | Over/under-voltage, overcurrent, short-circuit protections |
| Included accessories | Quick charger (with 12V 620Ah unit) | Quick charger specified for the 620Ah pack |
We find that having these baseline numbers helps us plan system sizing and safety margins.
Capacity breakdown and real-world energy
We want to understand how the different capacity options match common use scenarios. Below is a short comparison table of the available capacities and the approximate usable energy.
| Capacity | Nominal Energy (kWh) | Typical use examples |
|---|---|---|
| 250 Ah | 3.0 kWh | Small camper, emergency backup for a few lights and a fridge for short durations |
| 310 Ah | 3.72 kWh | Longer weekend trips with moderate appliance use |
| 400 Ah | 4.8 kWh | Extended off-grid use for lightweight RVs or boats |
| 500 Ah | 6.0 kWh | Full-day power for essential loads or partial house backup |
| 620 Ah | 7.44 kWh | Multi-day off-grid capability, power-hungry RV setups, or larger marine systems |
We should note that usable energy depends on how deeply we discharge the battery. LiFePO4 chemistry is forgiving of deeper discharge than lead-acid, so we will typically use more of the rated capacity without as much cycle penalty.
Performance: charging and discharging behavior
We like to talk about how the battery behaves under real operating conditions. The 12V 620Ah version states a maximum discharge current of 600A, which gives strong burst capability for motors, inverters, and starting applications. Charging temperature range is 0–45 °C, and the BMS protects the pack during charging to reduce risk.
Charge acceptance and recommended charging settings
We aim to charge safely and efficiently. For LiFePO4, charging typically follows a CC-CV (constant current, constant voltage) profile with a recommended float or end voltage around 14.2–14.6V for 12V systems, though we should consult the battery’s specific BMS recommendations. The included quick charger will be calibrated for safe charging of the 620Ah model, but for system charging via solar charge controllers or inverters, we should configure proper LiFePO4 charging profiles.
Discharge capabilities and inverter compatibility
We expect robust discharge performance. The 600A maximum discharge rating for the 620Ah model means the battery can handle high inrush currents for pumps, winches, or motor-starts. When pairing with an inverter, we should size the inverter to the continuous discharge ability of the battery and account for peak loads. Using an inverter with high-efficiency and soft-start features extends runtime and reduces stress.
Built-in BMS and safety features
We prioritize safety when selecting batteries, and the presence of a built-in BMS is significant for our peace of mind. The listing notes a protection board built into the pack, which typically provides safeguards such as overcharge, over-discharge, overcurrent, short-circuit, and cell balancing capabilities.
How the BMS protects our system
We appreciate that the BMS monitors cell voltages and pack current to prevent dangerous conditions. Over-voltage protection stops charging beyond safe limits, under-voltage protection prevents deep discharge that shortens life, and overcurrent/short-circuit protection blocks excessive currents that can cause thermal events. Built-in balancing helps cells stay at similar voltages, preserving capacity and cycle life.
Practical implications of the BMS
We like knowing that the battery can shut down to prevent damage, but we also recognize that the BMS behavior can affect system integration. For example, if the BMS trips due to low voltage, we may need to reset it per the manufacturer’s instructions before normal operation resumes. We recommend reviewing the manual for BMS reset and alarm indications.

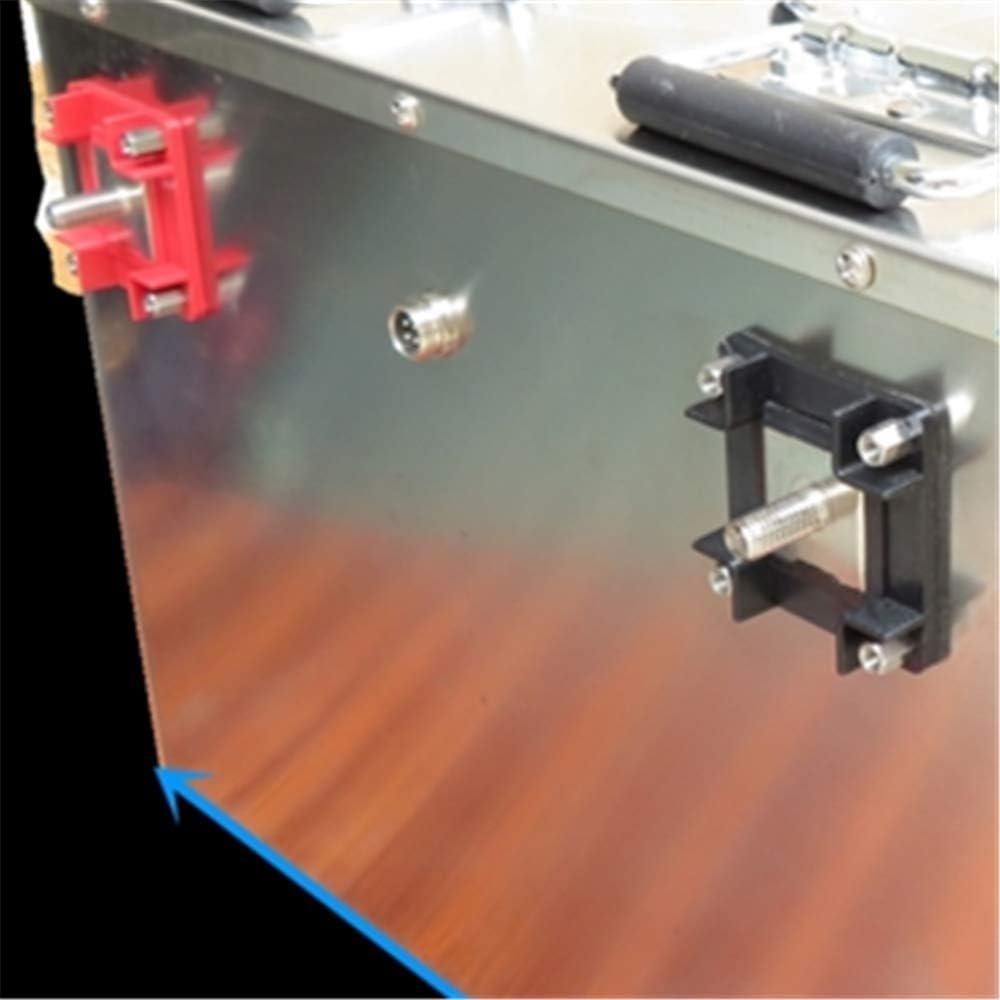

Waterproof stainless steel case and build quality
We value robust enclosures for mobile and marine environments. The stainless steel, waterproof case is a major plus because it reduces the risk of corrosion and ingress from spray, rain, or humid conditions. That makes the pack more versatile for boats, motor homes, and outdoor solar installations.
Corrosion resistance and environmental durability
We prefer stainless steel in marine or coastal applications because it resists rust. A fully sealed, waterproof casing also helps protect the internal electronics and cells against dust and moisture, extending the usable life of the battery in tough environments.
Considerations for airflow and heat dissipation
We do recognize that while sealed cases protect against water, they can also inhibit airflow. Proper installation that allows some thermal management—such as mounting locations with air gaps or ventilation for adjacent equipment—will help maintain safe operating temperatures, especially during high discharge or charging sessions.
Temperature ranges and what they mean for us
We need to understand where and how we can operate these batteries. The specified charging temperature range is 0–45 °C, while discharge and storage temperatures are -20–60 °C. That gives us a broad band for many climates but imposes limits during charging.
Charging limits and cold-weather precautions
We must avoid charging below 0 °C to prevent lithium plating and long-term damage. If we plan to use this battery in subzero climates, we should either insulate and heat the battery or use a charger/BMS with built-in temperature compensation and heating options. Charging in very cold environments without protection shortens battery life.
High-temperature operation
We can discharge the battery up to 60 °C, which covers hot climates and engine compartments to a degree. However, prolonged exposure to high ambient temperatures can accelerate cell aging, so we should aim to keep temperatures moderate during long-term use to preserve cycle life.
Life expectancy and cycle performance
We appreciate product longevity, and the manufacturer’s claim of more than 3,000 cycles is consistent with LiFePO4 chemistry when cycled properly. That cycle count usually assumes moderate depth of discharge and proper charging practices.
What 3,000 cycles means in practice
We calculate that if we use 1 cycle per day, 3,000 cycles translates to over eight years of daily cycling. If our system cycles less often (for example, seasonal or occasional backups), the calendar life could extend significantly beyond that timeframe. Real-world cycle life also depends on operating temperature, depth of discharge, and charge parameters.
Maintaining cycle performance
We find that shallow discharges, avoiding extreme temperatures, and using a correct charging profile help the battery achieve and possibly exceed the claimed cycle life. The internal BMS and proper system integration further support longevity.
Applications and suitability
We want to match the battery to the right use cases. The listing explicitly mentions applications including electric machines, xenon lamps / searchlights, inverters, handheld devices, wireless communication equipment, monitoring equipment, power equipment, medical instruments, relief equipment, emergency lighting/LED lamps, traffic signs, portable small household appliances, electric tools, automotive and industrial equipment, reserve power supply, and mobile applications like solar systems, motor homes, boats, golf carts, and RVs.
Solar systems and off-grid setups
We find these batteries well-suited for solar energy storage thanks to long cycle life and good depth-of-discharge characteristics. The 620Ah variant is particularly useful for off-grid homes or large RVs wanting multi-day autonomy. For solar integration, we should select a charge controller with LiFePO4 profile support.
Motor homes, boats, and recreational vehicles
We appreciate the waterproof casing and robustness for mobile use. These units are ideal for motor homes and boats where weight savings and consistent voltage help with appliances, fridges, and electronics. For starting loads on some boats or larger vehicles, verifying the discharge rating relative to starter current is important.
Golf carts and electric vehicles
We recognize that the high-current capability and long cycle life make these packs attractive for golf carts and some small electric vehicles, although mechanical compatibility and weight distribution must be considered. If using in traction applications, we should confirm the specific pack configuration and connection method.
Installation, wiring, and mounting tips
We want to install these batteries safely and for long-term reliability. The stainless steel case and waterproof rating simplify mounting choices, but we still need to follow best practices for wiring, fusing, and ventilation.
Wiring and fusing recommendations
We recommend using appropriately sized cables and DC-rated circuit breakers or fuses as near the battery positive terminal as possible. Given the high potential discharge current (600A for 620Ah), cable gauge and fuse sizes should match expected continuous and peak currents. Proper terminal torque and anti-corrosion measures help maintain connections.
Mounting and securing the battery
We advise bolting or strapping the battery in place to prevent movement while in transit. Even though the steel case is robust, securing the battery reduces vibration stress and risk of terminal damage. If installed in a confined space, maintain small air gaps to help dissipate heat.
Charging options and quick charger
We like that the 620Ah variant includes a quick charger—this helps when we need to replenish the pack at a faster rate. For system charging, we can use DC-based solar charge controllers, AC chargers, or inverter/chargers configured for LiFePO4 chemistry.
Using the included quick charger
We should follow the charger specifications and manufacturer’s instructions. The quick charger will be optimized for safe charging of the 620Ah unit, but if we’re charging through a system (solar or generator) we should replicate the recommended CC-CV profile and observe the charging temperature limits.
Solar charge controllers and inverter/chargers
We recommend configuring solar charge controllers to LiFePO4 parameters and ensuring inverter/chargers have proper charge profiles. Some older chargers default to lead-acid profiles and will not fully charge or may overcharge LiFePO4 cells, so compatibility is important.
Maintenance and storage guidance
We like low-maintenance energy systems, and LiFePO4s generally require minimal upkeep. Nonetheless, routine checks keep the battery performing well.
Routine checks and preventive care
We suggest periodically checking terminal connections for tightness and corrosion, confirming the BMS shows normal status, and monitoring pack voltage and temperature. If the battery hasn’t been used for extended periods, a maintenance charge or periodic equalization (as per manufacturer guidance) keeps the pack healthy.
Long-term storage best practices
We will store the battery in a cool, dry place within the specified temperature range (-20–60 °C) and ideally at a partial state of charge (around 40–60%). Storing fully charged or deeply discharged for long periods can stress the pack, so moderate SOC is preferable.
Safety considerations and guidelines
We always put safety first. This product’s BMS and waterproof stainless steel case add layers of protection, but safe handling, correct installation, and proper charging practices remain essential.
Handling and transport precautions
We advise avoiding puncturing or crushing the battery, and we recommend using protective gear when handling to prevent short circuits from metal tools. During transport, secure the battery and, if shipping, follow local regulations for lithium batteries.
Fire safety and emergency response
Although LiFePO4 chemistry is more stable than other lithium chemistries, we still recommend having a fire extinguisher rated for electrical fires nearby in installations with high energy systems. In the rare event of thermal runaway, first priority is safety of people and calling emergency services.
Comparison with lead-acid and other lithium types
We often compare chemistries to understand trade-offs. LiFePO4 offers better cycle life, higher usable depth of discharge, lighter weight, and faster charging compared to sealed lead-acid or AGM batteries. Versus other lithium chemistries (e.g., NMC), LiFePO4 is safer and typically lasts longer, though it may have slightly lower energy density by weight.
Advantages over lead-acid
We prefer LiFePO4 for repeated deep cycling because it maintains higher capacity over many more cycles and doesn’t require equalization. The net lifecycle cost often favors LiFePO4 despite a higher upfront price.
Trade-offs versus other lithium chemistries
LiFePO4 is safer and more tolerant of abuse compared to some high-energy lithium types, though it can be heavier for the same energy content. For applications where safety and longevity are critical, LiFePO4 is often the right choice.
Cost and value proposition
We consider both upfront cost and total cost of ownership. LiFePO4 units like the 620Ah pack can be expensive up front, but their multi-thousand-cycle life and lower maintenance often make them cost-effective over time compared to repeatedly replacing lead-acid batteries.
Calculating return on investment
We recommend comparing initial cost, expected cycle life, efficiency, and usable capacity when evaluating ROI. Because LiFePO4 allows deeper regular discharges without severe capacity loss, you usually get more usable energy per cycle and fewer replacements, which improves lifetime value.
When to choose which capacity
We choose 250–310Ah for smaller setups or where space is limited and the 400–620Ah range for larger systems or multi-day autonomy. The 620Ah with included quick charger is attractive for those who need fast replenishment and high-capacity day-to-day use.
Common questions and answers (FAQs)
We like to answer questions we expect buyers to have. Below are concise responses to frequent concerns.
Can we parallel or series multiple units?
Yes, but we advise following the manufacturer’s guidance. For larger systems, paralleling identical batteries of the same age and state of charge is common to increase capacity; series connections create higher voltages for inverters requiring 24V/48V. Always ensure the BMS supports multi-unit configurations and that cables and fuses are sized correctly.
Is the quick charger suitable for other capacities?
The included quick charger is specified with the 12V 620Ah unit in the listing. If we have different capacity packs from the same product family, we should confirm charger compatibility or use a charger designed for the specific pack capacity and LiFePO4 parameters.
What maintenance does the battery need?
Minimal routine checks: terminal inspection, BMS status monitoring, and occasional partial charging for long-term storage. No watering or frequent equalization like flooded lead-acid batteries.
What happens if the BMS trips?
If the BMS trips for over/under-voltage or overcurrent, the pack will usually disconnect outputs until conditions normalize or until a reset is performed following the manufacturer instructions. We recommend reading the manual and keeping contact info for support handy.
Pros and cons summary
We like to summarize the core strengths and weaknesses so we can make a clear decision.
Pros
- Long cycle life (over 3,000 cycles) for durable performance.
- High capacity options up to 620Ah (approx. 7.44 kWh) for multi-day use.
- Built-in BMS offering essential protections.
- Waterproof stainless steel case suitable for marine and mobile use.
- Wide discharge temperature range and strong discharge current (600A for 620Ah).
- Quick charger included with the 620Ah unit for faster replenishment.
Cons
- Upfront cost is higher than lead-acid equivalents.
- Charging is limited above 0 °C; cold-weather charging precautions are required.
- Weight and size for the 620Ah pack may be substantial; mounting and handling require planning.
- Some manufacturers’ documentation can be brief—consult support for advanced integration.
Our installation checklist
We prefer checklists for clarity. Here’s a practical list to follow when we install one of these batteries.
- Confirm model/spec and ensure compatibility with inverter/charger and solar controller.
- Select correct cable gauge and DC circuit protection (fuses/circuit breakers).
- Mount battery in a secure, ventilated location away from direct heat sources.
- Configure charger or charge controller to LiFePO4 charging profile.
- Verify BMS status and learn reset procedures from the manual.
- Test system under light load, then increase to expected loads while monitoring temperature and voltage.
- Document installation and keep warranty/serial information accessible.
Final thoughts and recommendation
We appreciate a well-built LiFePO4 battery with a waterproof stainless steel case and robust BMS, especially in the 620Ah configuration that comes with a quick charger. For those of us who need multi-day autonomy, heavy-duty discharge capability, or durable marine and mobile installations, this product family is an excellent candidate. We should factor in upfront cost and ensure system compatibility with LiFePO4 charging profiles, but the long cycle life and safety characteristics make these batteries compelling.
If we are building or upgrading a solar storage system, outfitting a motor home or boat, or planning a heavy-use RV or golf cart conversion, the Lifepo4 250ah–620ah line—specifically the 12V 620Ah unit with quick charger—deserves careful consideration. We recommend confirming detailed manufacturer documentation for BMS behavior, charger specifications, and multi-battery configurations before purchasing to ensure a smooth integration into our system.
